Conical Bottom Drilling Buckets
These heavy-duty buckets feature a robust cylindrical body with a reinforced conical bottom for efficient material penetration. They are equipped with a top-mounted lifting mechanism for easy handling and positioning.
Technical Specifications
Overview
High-Performance Conical Bottom Drilling Buckets
These Conical Bottom Buckets are engineered for heavy-duty rock drilling and piling applications, featuring a robust cylindrical body and reinforced conical bottom for superior material penetration. Designed to handle a wide range of operational torques, they provide efficient excavation and material removal in challenging construction environments. The series-based design ensures that professional buyers can select the exact structural strength required for their specific machinery and project demands.
Series Classification
Torque Capacity by Series
12,000 kN.m
Series A Max Torque
20,000 kN.m
Series B Max Torque
35,000 kN.m
Series C Max Torque

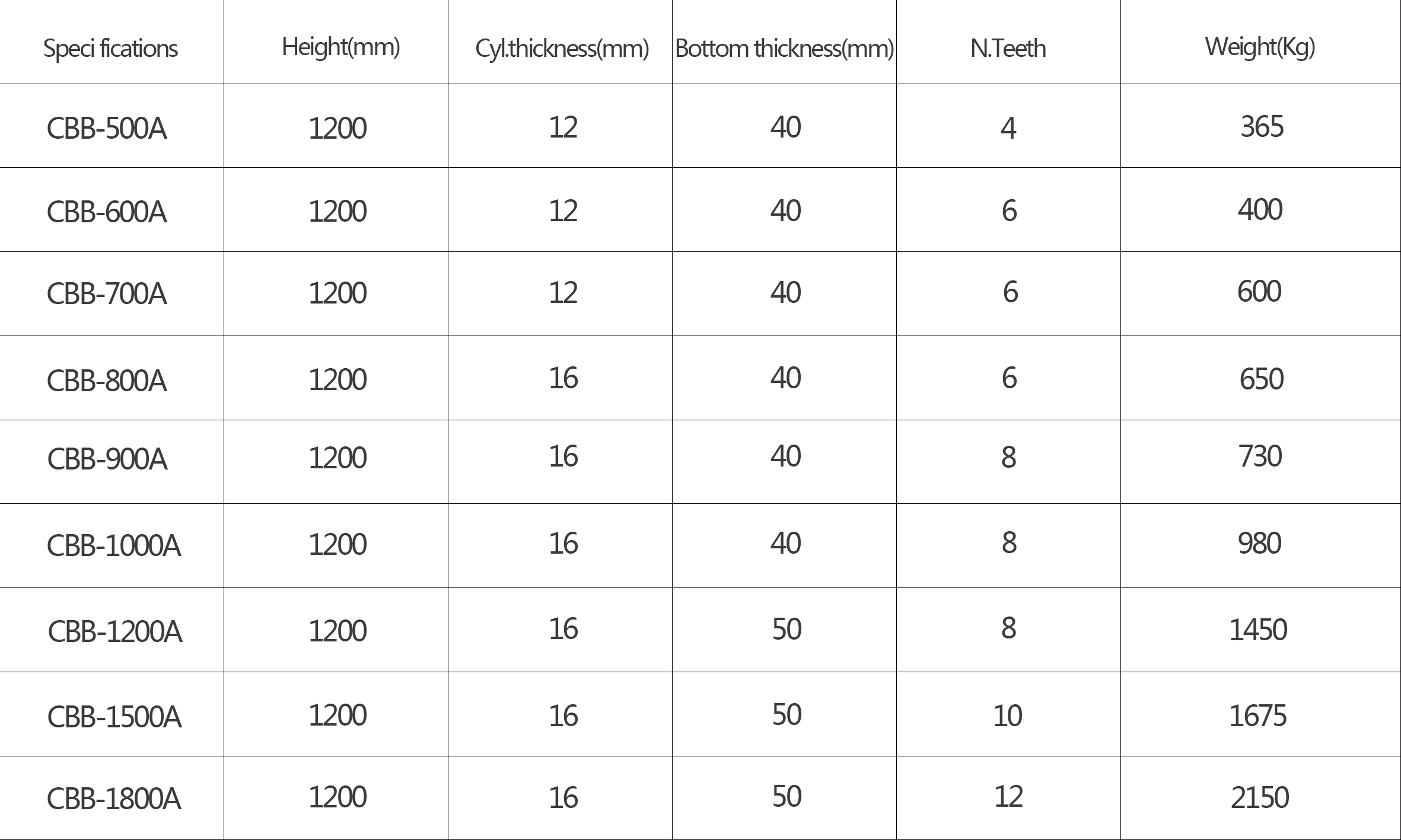

Series A Specifications
Series A Model Comparison
| Model | Cyl. Thickness (mm) | Bottom Thickness (mm) | Teeth | Weight (kg) |
|---|---|---|---|---|
| CBB-500A | 12 | 40 | 4 | 365 |
| CBB-700A | 12 | 40 | 6 | 600 |
| CBB-1000A | 16 | 40 | 8 | 980 |
| CBB-1500A | 16 | 50 | 10 | 1,675 |
| CBB-1800A | 16 | 50 | 12 | 2,150 |

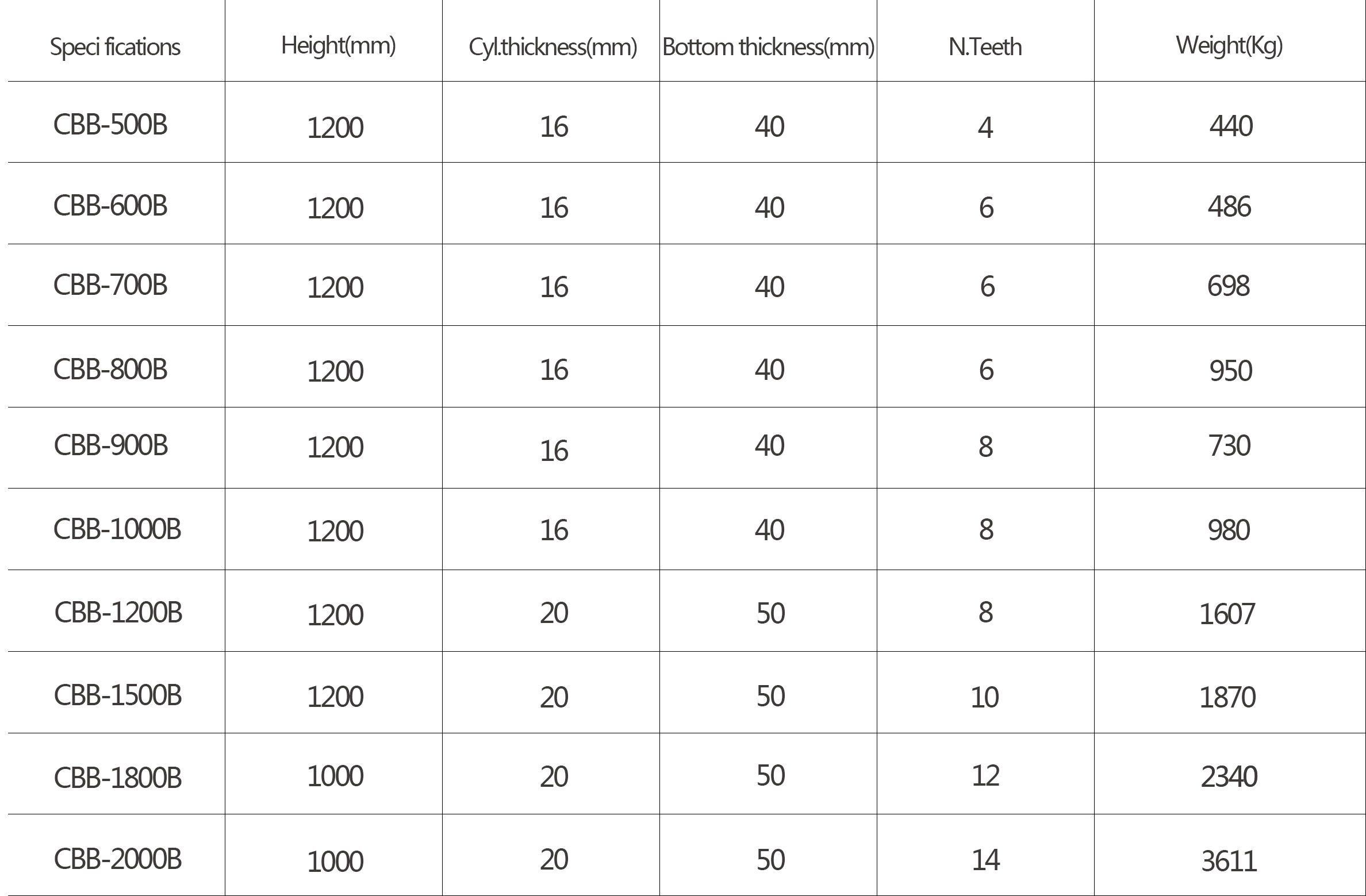

Series B Specifications
Series B Model Comparison
| Model | Height (mm) | Cyl. Thickness (mm) | Teeth | Weight (kg) |
|---|---|---|---|---|
| CBB-500B | 1,200 | 16 | 4 | 440 |
| CBB-1000B | 1,200 | 16 | 8 | 980 |
| CBB-1500B | 1,200 | 20 | 10 | 1,870 |
| CBB-2000B | 1,000 | 20 | 14 | 3,611 |

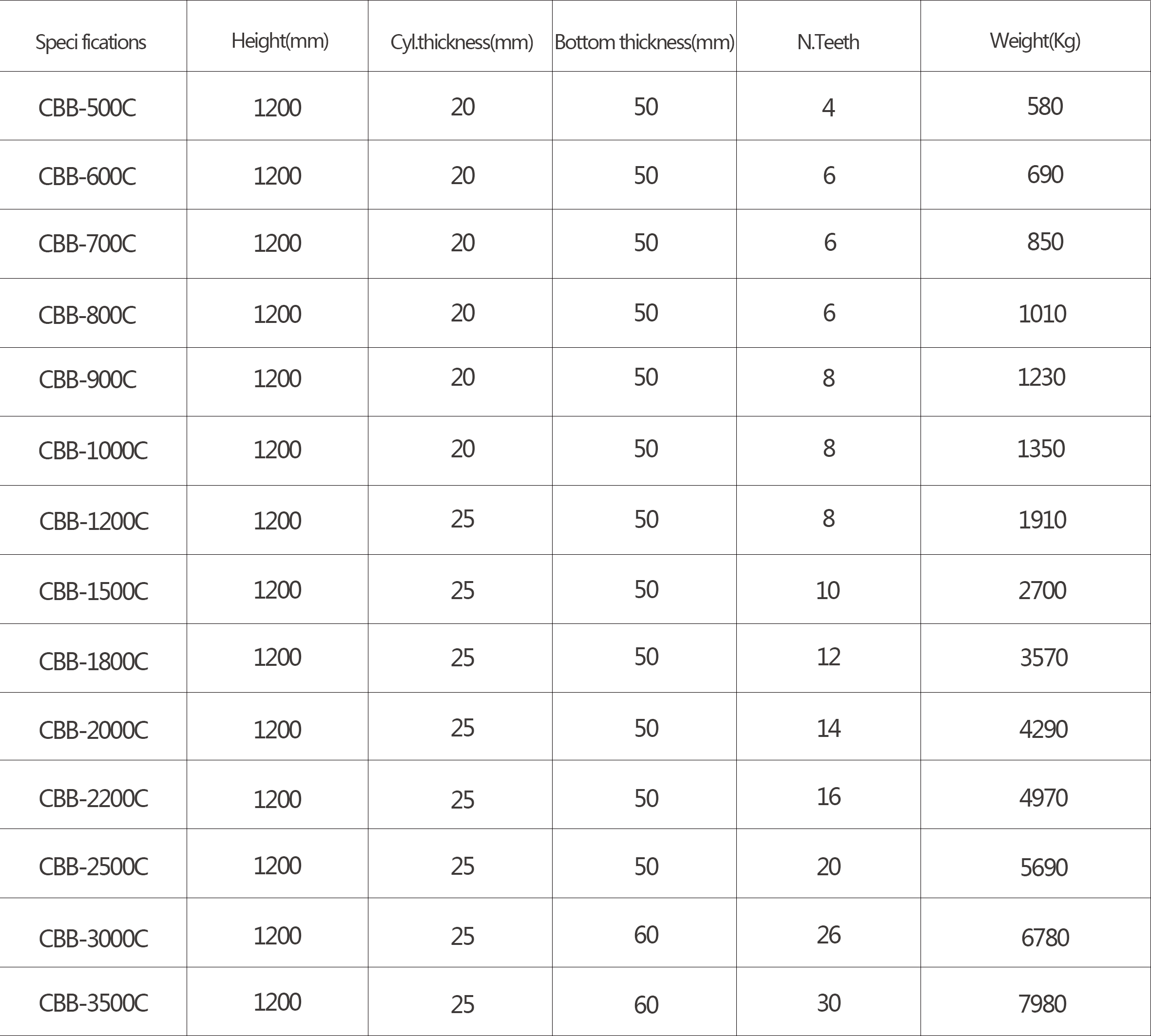

Series C Specifications
Series C Model Comparison
| Model | Cyl. Thickness (mm) | Bottom Thickness (mm) | Teeth | Weight (kg) |
|---|---|---|---|---|
| CBB-1000C | 20 | 50 | 8 | 1,350 |
| CBB-1500C | 25 | 50 | 10 | 2,700 |
| CBB-2000C | 25 | 50 | 14 | 4,290 |
| CBB-2500C | 25 | 50 | 20 | 5,690 |
| CBB-3500C | 25 | 60 | 30 | 7,980 |
Technical Features
Key Components
- Reinforced conical bottom for rock penetration
- Heavy-duty cylindrical body with variable thickness
- Top-mounted lifting mechanism for handling
- High-strength cutting teeth (up to 30 per unit)
- Optimized for high-torque rotary drilling rigs
- Applications
- Rock DrillingPiling OperationsExcavationConstructionFoundation Engineering
