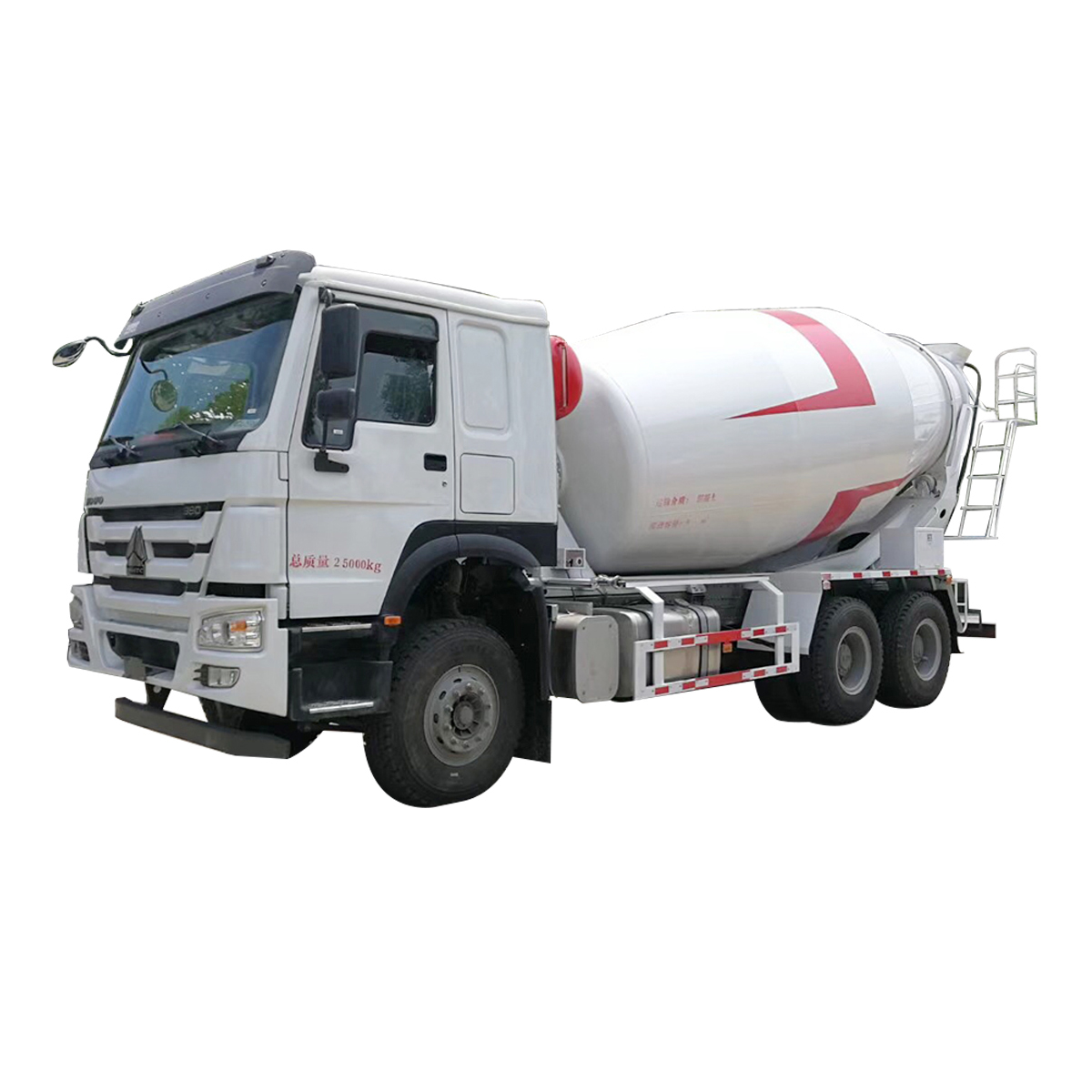

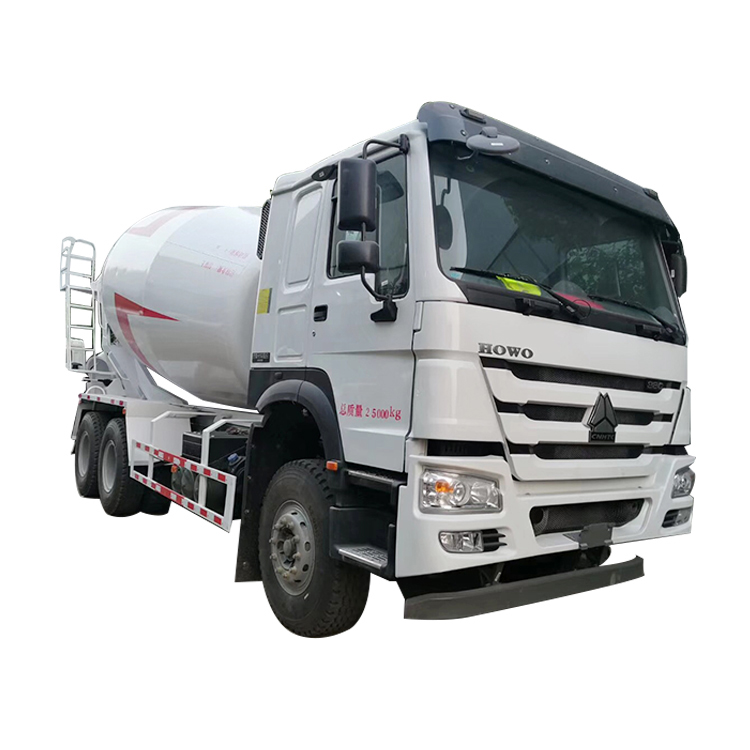

Concrete Mixer Vehicle
This concrete mixer vehicle efficiently mixes and transports concrete on construction sites. It features a rotating drum for continuous mixing and a powerful engine for reliable performance.
Technical Specifications
Overview
Heavy-Duty Concrete Mixer
This robust concrete mixer vehicle is engineered for high-efficiency mixing and transportation on demanding construction sites. Featuring a powerful engine and a large 9 cubic meter agitating capacity, it ensures consistent concrete supply for infrastructure and roadwork projects. The unit is equipped with advanced hydraulic systems and a durable chassis to provide reliable performance and stability in various terrains.
Chassis & Dimensions
- Chassis Model
- ZZ1257N3841
- Overall Dimensions (L×W×H)
- 9485*2496*3980 mm
- Wheelbase
- 3800+1400 mm
- Frame Construction
- 8+5 mm double strengthen frame
Powertrain & Performance
Engine Power
336 HP
Engine Output
Emission Standard
Euro 2
- Engine Model
- WD615.69
- Transmission
- 10 Forward & 2 Reverse
Mixing System
- Agitating Capacity
- 9 m3
- Geometric Volume
- 16.5 m3
- Drum Rotation Speed
- 0-18 r/min
- Feeding Speed
- >3 m3/min
Axles & Tires
Axle Configuration
| Axle Type | Capacity |
|---|---|
| Front Axle | 1x9000 KGS |
| Rear Axle | 2x16000 KGS |
- Tire Specifications
- 1200R20 (10+1 tires)
