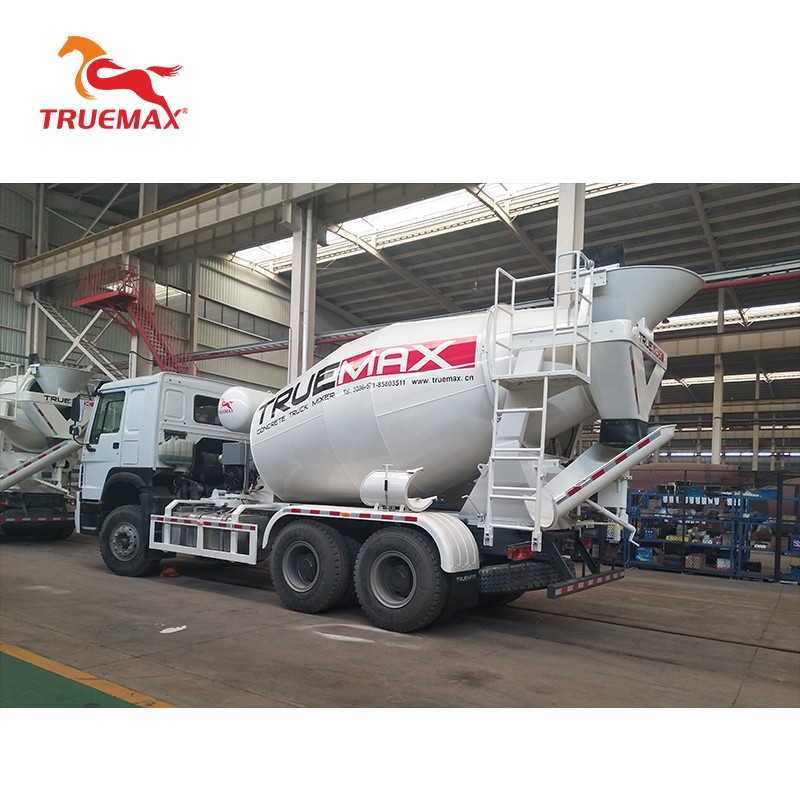

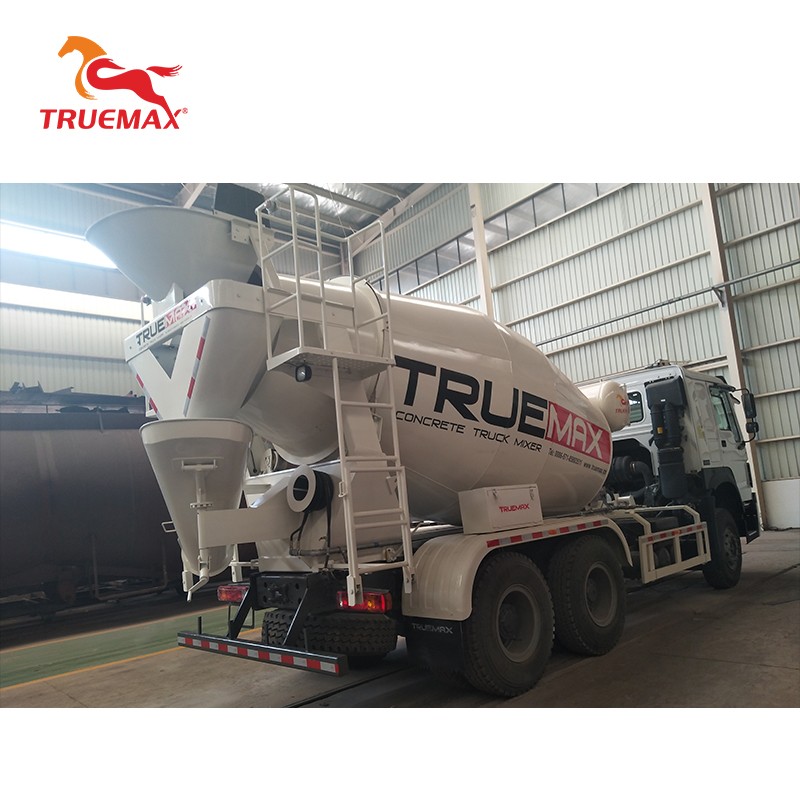

Concrete Mixer Truck CTM8
The concrete mixer truck transports concrete or mortar that has been stirred in a concrete mixer to construction sites. The mixing tank of the concrete mixer truck can be rotated and adjusted, ensuring the concrete is transported to the maximum.
Technical Specifications
Overview
High-Efficiency Concrete Transportation
The CTM8 is a robust concrete truck mixer designed to transport concrete or mortar while maintaining optimal workability through a rotating and adjustable mixing tank. It features double logarithmic variable pitch helical blades to ensure homogeneous mixing and prevent aggregate settlement during transit. Built with high-strength, wear-resistant steel and world-class hydraulic components, this mixer is engineered for the demanding requirements of commercial mixing stations and large-scale construction projects.
Performance Metrics
Key Performance Metrics
Mixing System
Mixing Drum Specifications
| Feature | Specification |
|---|---|
| Material | Q345B High-strength Steel |
| Slump Range | 50-210 mm |
| Inclination Angle | 16° |
| Feeding Speed | ≥3 m³/min |
| Discharging Speed | >1 m³/min |
| Mixing Speed | 0-14 r/min |
| Residual Rate | <0.2% |
Blade Technology
- Double logarithmic variable pitch helical mixer blades
- T-shape hard-wearing alloy steel protection
- Wear-resistant steel extending service life by 60%-80%
- Optimized design to eliminate segregation
Chassis & Engine
Engine & Drive
| Parameter | Value |
|---|---|
| Driving Type | 6X4 |
| Engine Model | WD615.69 Diesel |
| Displacement | 9726 ml |
| Emission Standard | Euro 2 |
| Wheel Base | 3625+1350 mm |
| Curb Weight | 9800 kg |
Hydraulic & Water Systems
Water System Details
| Component | Value |
|---|---|
| Water Tank Capacity | 240 L |
| Water Supply Pressure | 0.3 mpa |
| Washing Outlets | Multi-outlet design for drum and hoppers |
- Hydraulic Components
- Rexroth PumpRexroth MotorZF ReducerPneumatic Water Supply
Dimensions & Design
Physical Dimensions
- Overall Dimensions: 9000 x 2500 x 3945 mm
- Drum Length: 4550 mm
- Max External Drum Diameter: 2025 mm
- Hopper Height: 2816 mm
