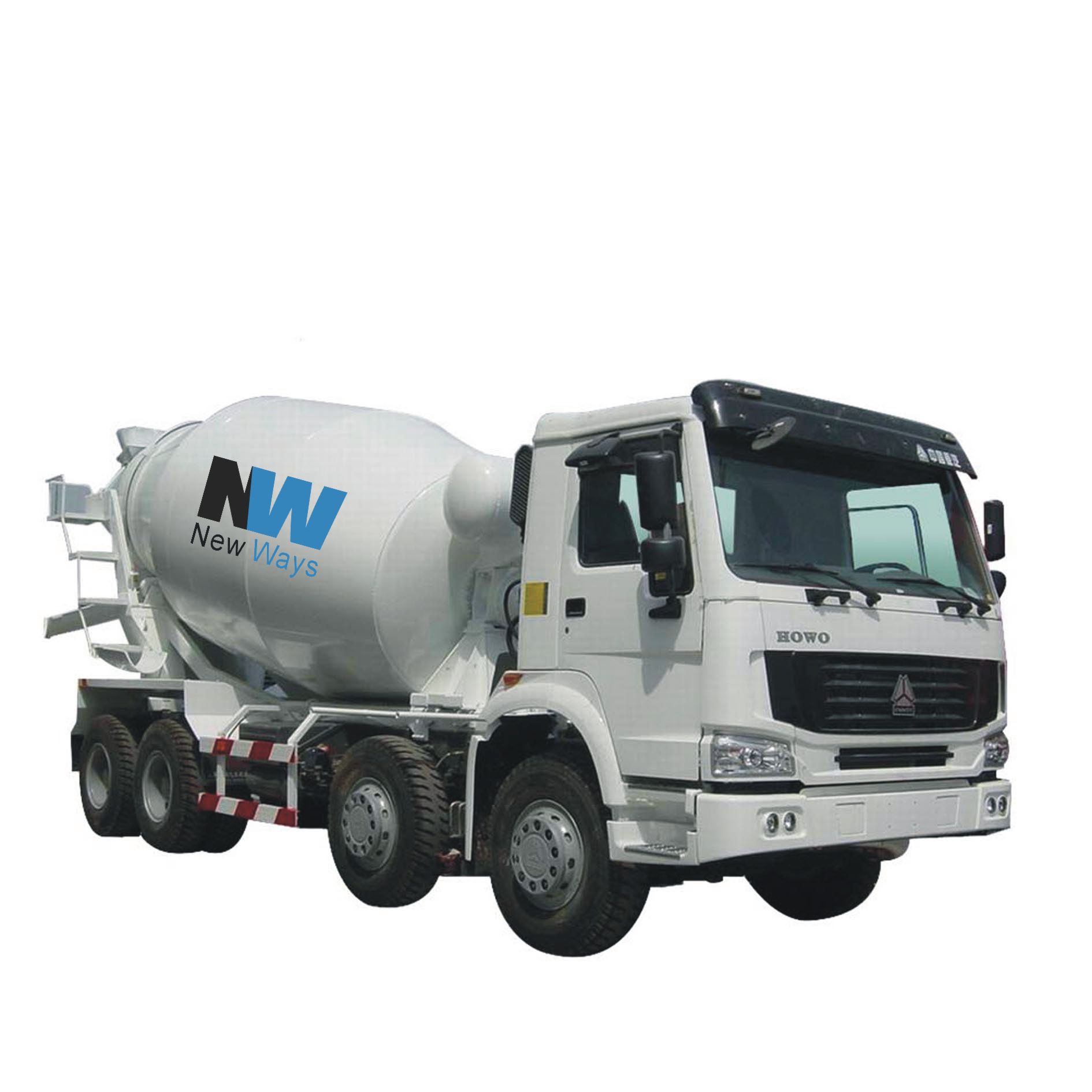

Concrete Mixer Truck (6-16 m3 Capacity)
This concrete mixer truck is available with capacity of 6m3, 8m3, 9m3, 10m3, 12m3 and 16m3. It is designed for efficient and reliable on-site concrete mixing and delivery.
Technical Specifications
Overview
High-Capacity Concrete Mixer Truck
This heavy-duty concrete mixer truck is engineered for efficient on-site concrete mixing and reliable transportation. Built with a robust chassis and high-capacity mixing drum, it is designed to handle demanding construction environments and large-scale projects. The vehicle features advanced hydraulic systems for precise drum rotation and discharge, ensuring optimal productivity and consistent concrete quality.
Performance Metrics
Key Performance Metrics
25,000 kg
Total Mass
90 km/h
Max Speed
25 L/100km
Max Fuel Consumption
Technical Specifications
Detailed Technical Comparison
| Feature | Model HDT5257GJB | Model HDT5250GJB |
|---|---|---|
| Curb Weight (kg) | 12600 | 13500 |
| Total Mass (kg) | 25000 | 25000 |
| Dimensions (mm) | 8555x2490x3800 | 8715x2496x3800 |
| Wheelbase (mm) | 3225+1350 | 3225+1350 |
| Max Speed (km/h) | 75 | 90 |
| Min. Ground Clearance (mm) | 297 | 314 |
- Min. Turning Diameter
- 17.3 m
Configuration
Drivetrain Configuration
- Clutch: Monolithic dry type φ430
- Transmission: HW18709
