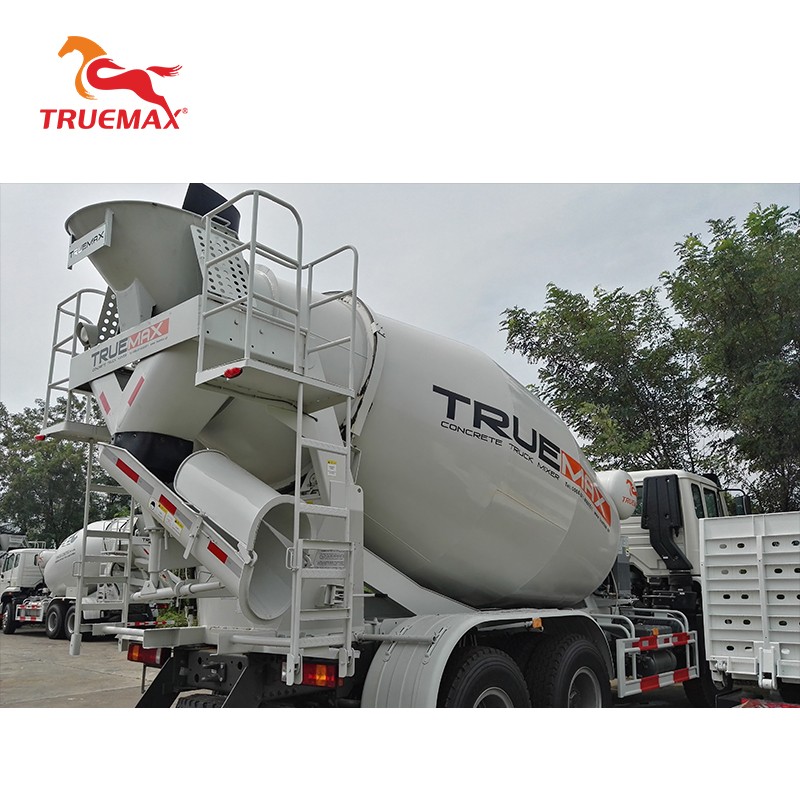

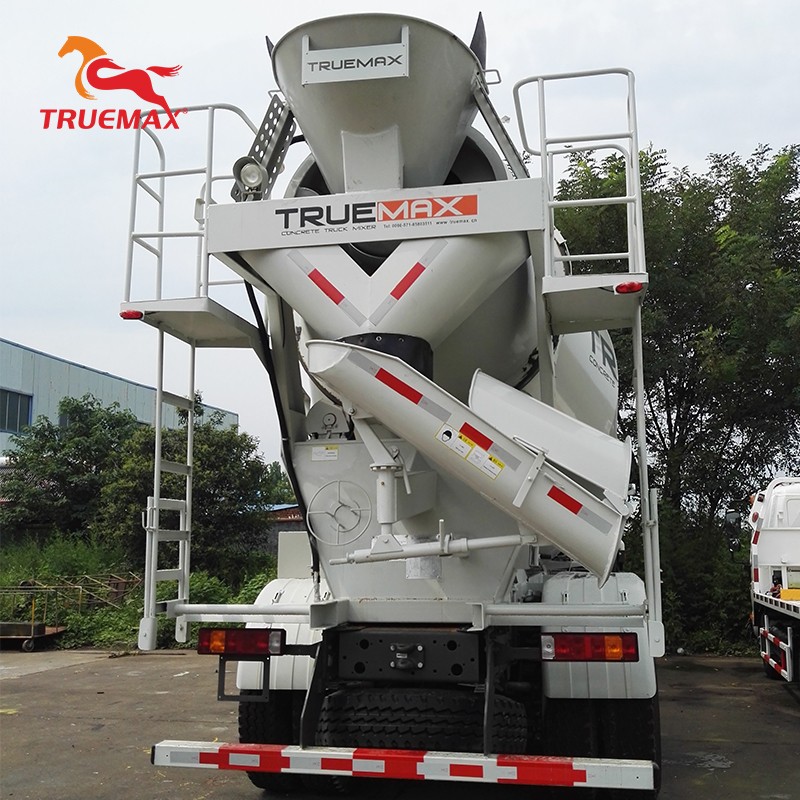

Concrete Mixer Truck
This concrete mixer truck transports pre-mixed concrete or mortar to construction sites, ensuring it remains workable during transit. The rotating drum prevents separation and maintains the mixture's consistency.
Technical Specifications
Product Overview
High-Efficiency Concrete Transportation
This concrete mixer truck is designed for the reliable transport of concrete or mortar to construction sites, ensuring the mixture remains consistent and workable over specified distances. Featuring an adjustable rotating mixing tank, it prevents coarse aggregate from settling and maintains optimal material quality. It is an essential solution for commercial mixing stations and large-scale infrastructure projects requiring high-volume delivery.
Key Performance Metrics
Performance Highlights
18.4 m³
Geometric Drum Volume
371 HP
Engine Power
31,000 kg
Rated Loading Capacity
90 km/h
Maximum Speed
Mixing System Specifications
Drum Dimensions
- Max External Diameter: 2342 mm
- Drum Length: 6322 mm
- Inclination Angle: 12°
Operating Speeds
- Feeding Speed: ≥3 m³/min
- Discharging Speed: >1 m³/min
- Mixing Speed: 0-14 r/min
- Drum & Blade Material
- Q345B
- Slump Range
- 50-210 mm
Chassis & Engine
Chassis Specifications
| Feature | Specification |
|---|---|
| Driving Type | 8X4 |
| Engine Type | WD615.47 Diesel |
| Displacement | 9726 ml |
| Emission Standard | Euro 2 |
| Wheel Base | 1800+3200+1350 mm |
Hydraulic System
Hydraulic Components
- Hydraulic Pump: Rexroth A4VTG90
- Hydraulic Motor: Rexroth AA2FM90
- Reducer: ZF P5300
- Radiator: KT-18
Water System
- Water Tank Capacity
- 450 L
- Water Supply Pressure
- 0.3 mpa
Cabin Configuration
- Cabin Features
- Left-Hand Drive2 SeatsSleeper BerthAir Conditioning
Compliance & Quality
Quality Standards
CE CertifiedISO 9001:2015ISO 14000OHSMS 18000
