Concrete Leveling Screed
This concrete leveling screed is designed for precision leveling of concrete surfaces. It ensures a smooth and even finish, reducing labor costs and improving overall construction quality.
Technical Specifications
Overview
High-Performance Concrete Leveling

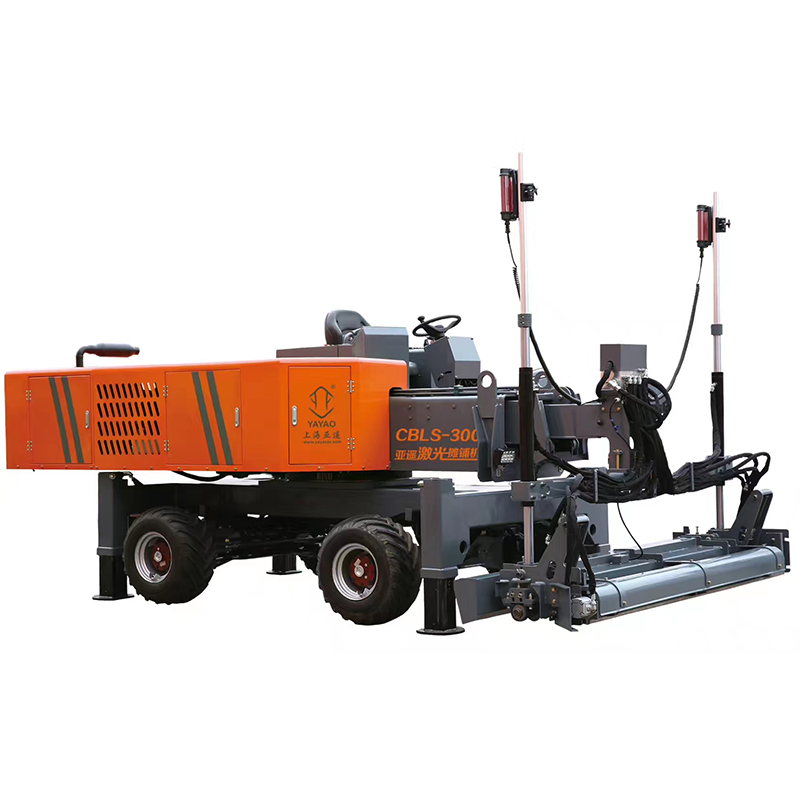

The CBLS-300Ⅱ Boom Laser Concrete Screed offers innovative and productive concrete placing and leveling solutions. With a 20 ft. telescopic boom, it effectively reaches over rebar and wire mesh to maintain precise grade. Its powerful hydraulic system controls elevation and self-leveling, ensuring improved floor levelness even with low slump concrete.
Performance & Specifications
Power Output
32.5 kW
Engine Power
44 hp
Engine Power

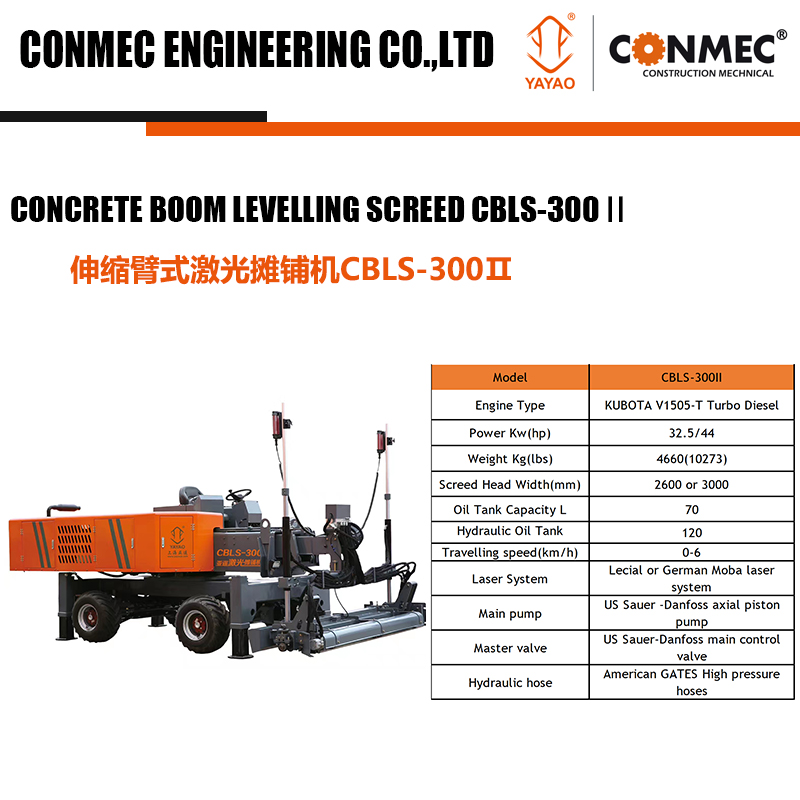

Technical Specifications
| Specification | Value |
|---|---|
| Engine Type | KUBOTA V1505-T Turbo Diesel |
| Weight | 4660 kg (10273 lbs) |
| Screed Head Width | 2600 or 3000 mm |
| Travelling Speed | 0-6 km/h |
Capacities
Fluid Capacities
- Oil Tank Capacity: 70 L
- Hydraulic Oil Tank Capacity: 120 L
Operational Features
- Key Operational Features
- 360° Hydraulic Rotation20 ft. Boom ReachAll-wheel Steering4 StabilizersAll-wheel Hydraulic DriveFlip-down Plow Extension
Hydraulic & Control Systems
System Components
| Component | Specification |
|---|---|
| Laser System | Lecial or German Moba |
| Main Pump | US Sauer-Danfoss axial piston pump |
| Master Valve | US Sauer-Danfoss main control valve |
| Hydraulic Hoses | American GATES high pressure |
