Concrete Batching Plant 100 m3/h

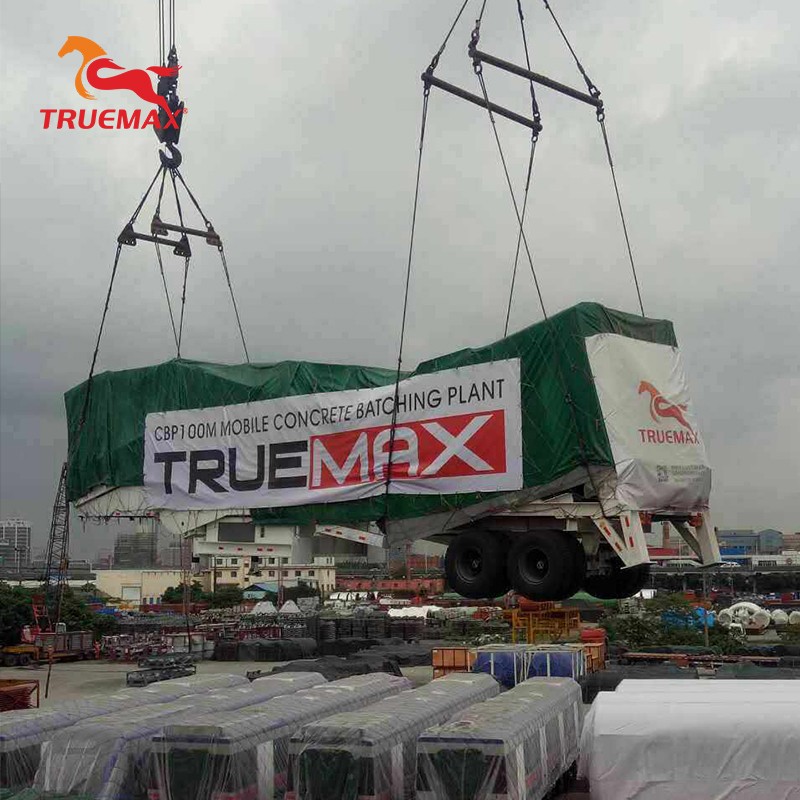

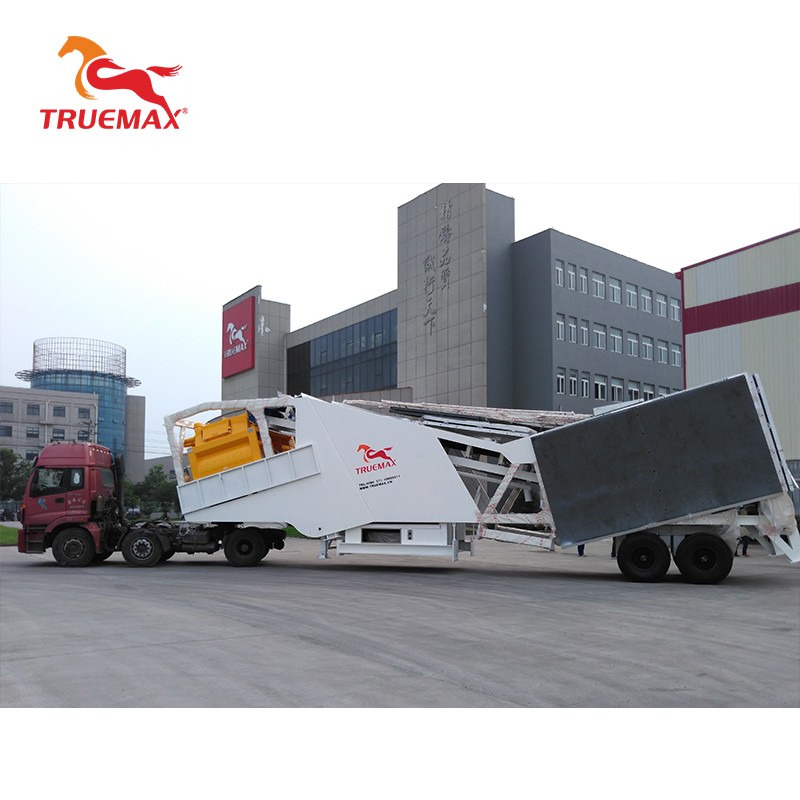

This concrete batching plant is designed for efficient on-site concrete production with a capacity of 100 cubic meters per hour. It features a modular design for easy transportation and quick setup.
Technical Specifications
Overview
High-Efficiency Mobile Concrete Production
The CBP100M is a high-capacity mobile concrete batching plant engineered for efficient on-site mixing and flexible deployment. Designed for large-scale construction projects, it delivers a theoretical productivity of 100 m³/h using a robust twin-shaft mixing system. This modular plant combines precise automated batching with a fully enclosed, environmentally friendly structure to ensure consistent, high-quality concrete production in diverse working environments.
Performance Metrics
Key Performance Indicators
100 m³/h
Theoretical Productivity
72 s
Cycle Period
3,000 L
Mixer Capacity
110 kW
Total Power
Mixing System
Mixer Specifications
| Parameter | Value |
|---|---|
| Mixer Model | JS2000 |
| Type | Twin-shaft |
| Motor Power | 2 x 37 kW |
| Dry Filling Capacity | 3000 L |
| Compacted Yield | 2000 L |

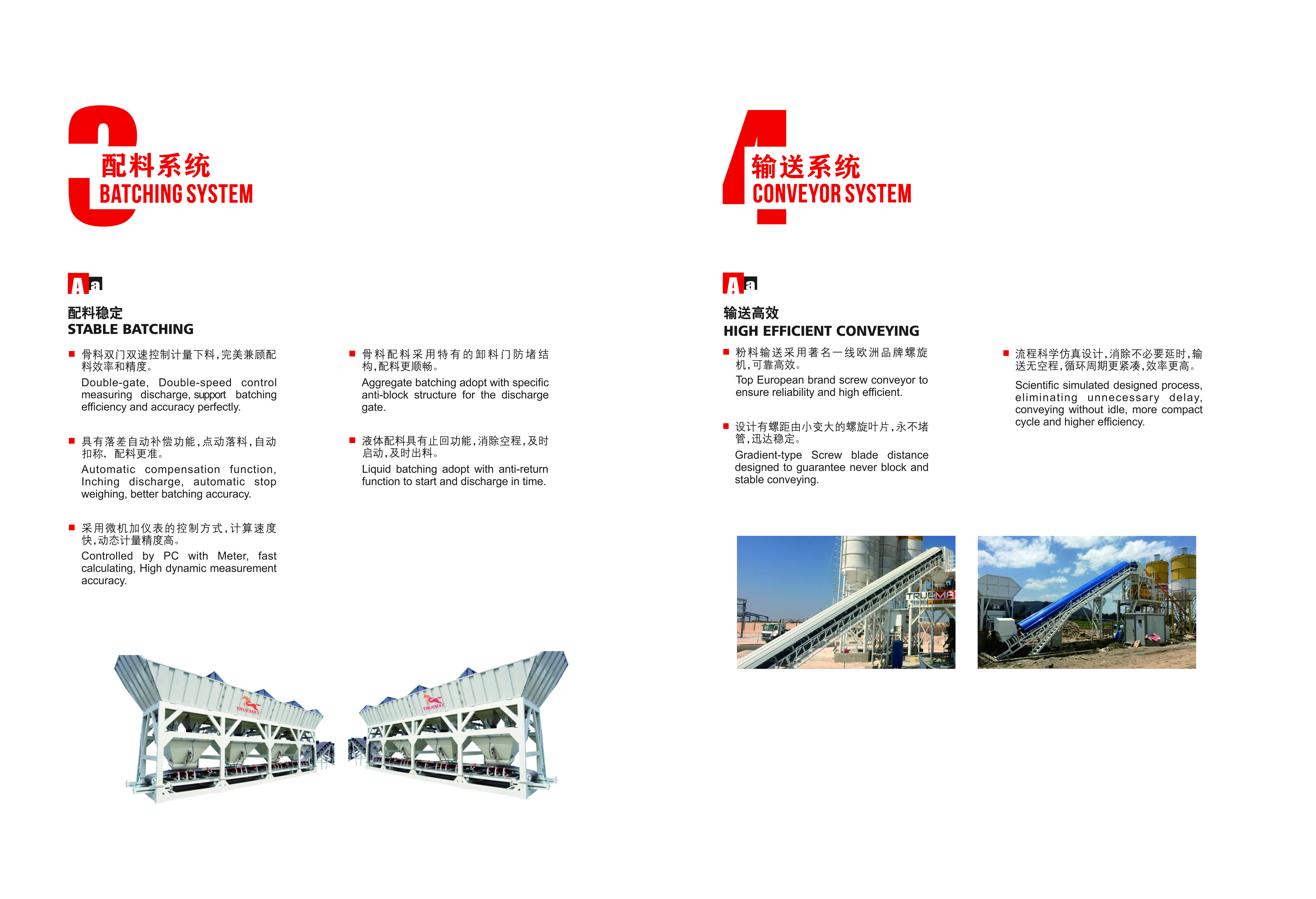

Batching & Storage
Aggregate & Storage System
- Aggregate Bin Capacity: 4 x 16 m³
- Number of Aggregate Types: 4
- Max Aggregate Size (Crushed/Pebble): 60/80 mm
- Double-gate and double-speed control for precision
- Anti-block structure for discharge gates
Weighing Accuracy
Weighing Range & Accuracy
| Material | Range (kg) | Accuracy |
|---|---|---|
| Aggregate | 1666 - 5000 | ±2% |
| Cement | 400 - 1200 | ±1% |
| Water | 200 - 600 | ±1% |
| Additives | 20 - 60 | ±1% |

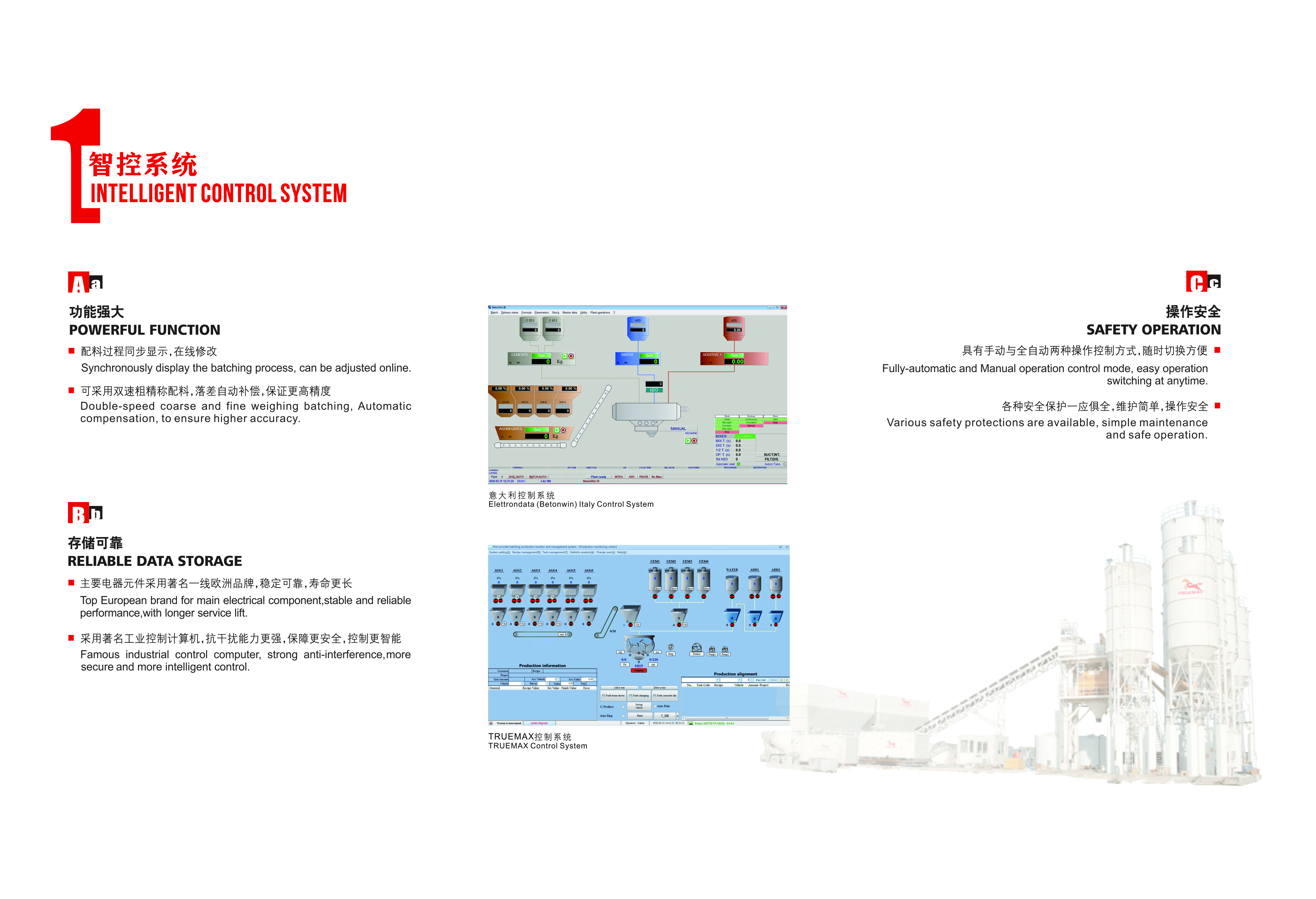

Control System
Intelligent Control Features
- Synchronized display of batching process
- Online adjustment capabilities
- Automatic fall compensation for higher accuracy
- Fully-automatic and manual operation modes
- Industrial control computer with anti-interference

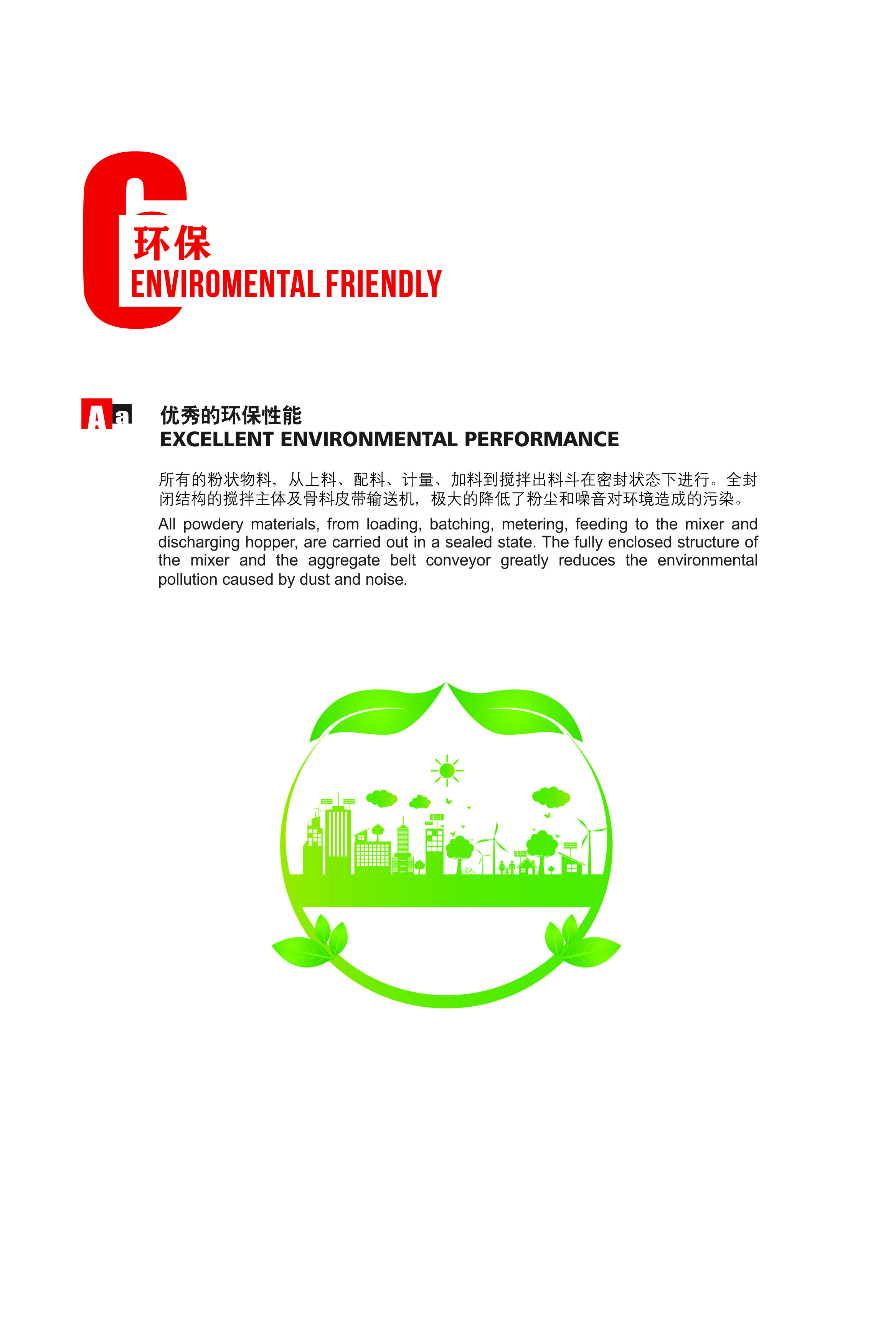

Environmental & Design
- Design & Environmental Compliance
- Fully Enclosed StructureDust Pollution ReductionNoise ReductionModular DesignMobile/PortableISO 9001:2015CE Certified
Optional Components
Screw Conveyor Options
| Diameter | Max Length | Capacity |
|---|---|---|
| Φ219 | < 15m | 40 t/h |
| Φ273 | < 15m | 80 t/h |
| Φ323 | < 15m | 110 t/h |
