Technical Specifications
Overview
Efficient Urban Waste Management

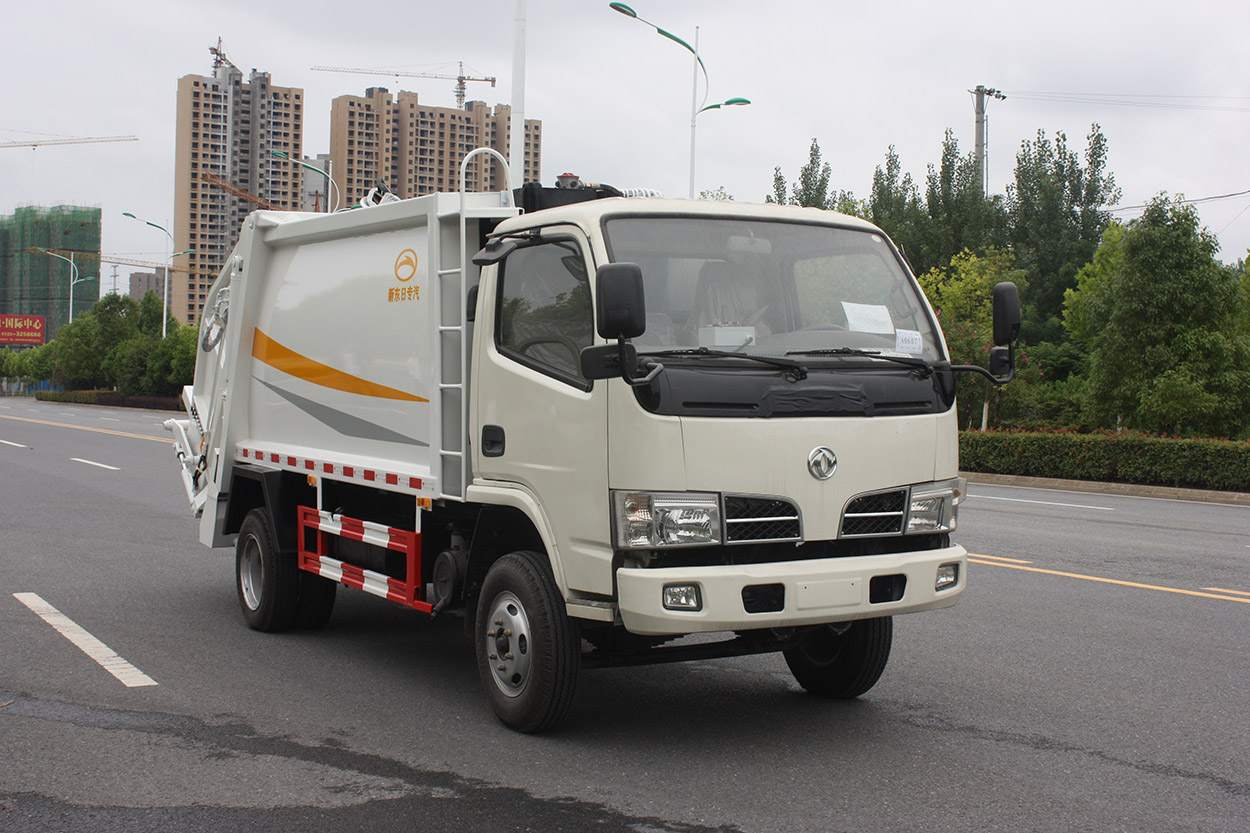

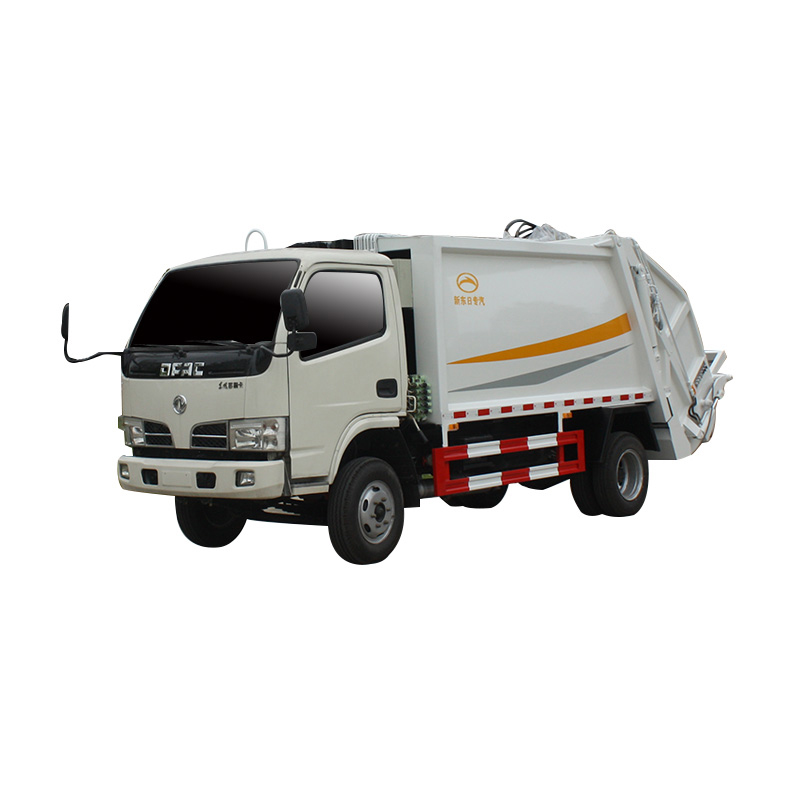

This compactor garbage truck is designed for reliable waste collection in urban and residential environments. Featuring a robust 5CBM carbon steel tank and a powerful hydraulic compaction system, it maximizes load capacity for efficient disposal operations. The compact 4x2 chassis ensures excellent maneuverability on city streets, while the user-friendly design supports quick loading and dumping cycles.
Performance Metrics
Operational Efficiency
5 CBM
Tank Volume
90 km/h
Max Speed
82 hp
Horse Power
Vehicle Specifications
Dimensions & Weight
| Parameter | Value |
|---|---|
| Overall Dimension | 6580 x 2100 x 2520 mm |
| GVW | 7360 kg |
| Curb Weight | 5380 kg |
| Wheelbase | 3300 mm |
- Drivetrain Configuration
- 4x2 Driving TypeLHD Steering6-Speed ManualDiesel
- Tire Configuration
- 7.00-16 (6+1 Tires)
Engine & Performance
Engine Specifications
- Emission Standard: Euro 3
- Displacement: 3700ml
- 4-Stroke, 4-Cylinders In-line
- Water Cooling System
Compaction System
Compaction Performance
| Feature | Specification |
|---|---|
| Compress Rate | 0.6-0.8 ton/CBM |
| Recycle Time | ≤ 28S |
| Dumping Time | ≤ 30S |
| Tumbler Mechanism | Two 240L Garbage Bins |
