Compact Wood Lathe for Hobbyists
This compact wood lathe is designed for small to medium-sized woodworking projects. It features a variable speed motor allowing precise control for different materials and techniques.
Technical Specifications
Overview
Compact Performance for Woodworking

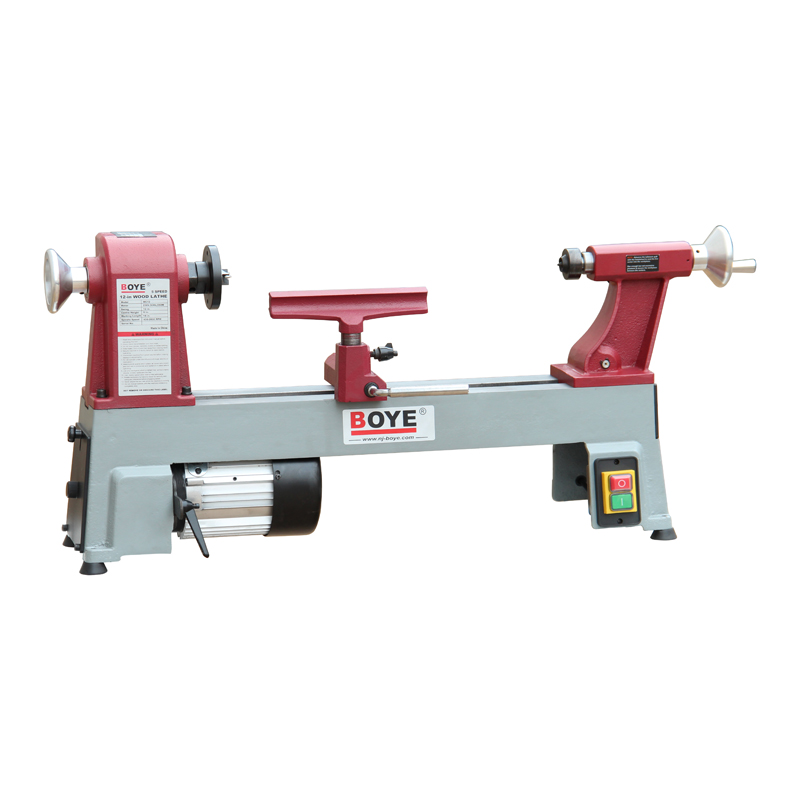

The MC12 wood lathe is a versatile and compact machine engineered for precision in small to medium-sized woodworking projects. Featuring a robust cast iron bed for enhanced stability and vibration reduction, this unit is ideal for hobbyists and workshops where space is at a premium. With an adjustable speed motor and reliable power output, it provides the control necessary for detailed turning tasks and various material requirements.
Performance Metrics
Motor Power
550 W
Motor Power
- Spindle Speed (50Hz)
- 430 rpm
- Spindle Speed (60Hz)
- 520 rpm
Technical Specifications
Working Capacity
| Specification | Value |
|---|---|
| Swing (Round Diameter) | 305 mm |
| Centre Height | 152 mm |
| Working Length | 455 mm (Expandable to 1000 mm) |
- Speed Change Levels
- 5
Logistics & Physical
Weight
- Net Weight: 32 kg
- Gross Weight: 35 kg
- Packing Dimensions
- 845 x 475 x 330 mm
- Container Loading (20"/40")
- 217 / 448 / 512 pcs
Safety & Features
- Safety Features
- Overload ProtectionPush-to-Reset MechanismCast Iron Bed
