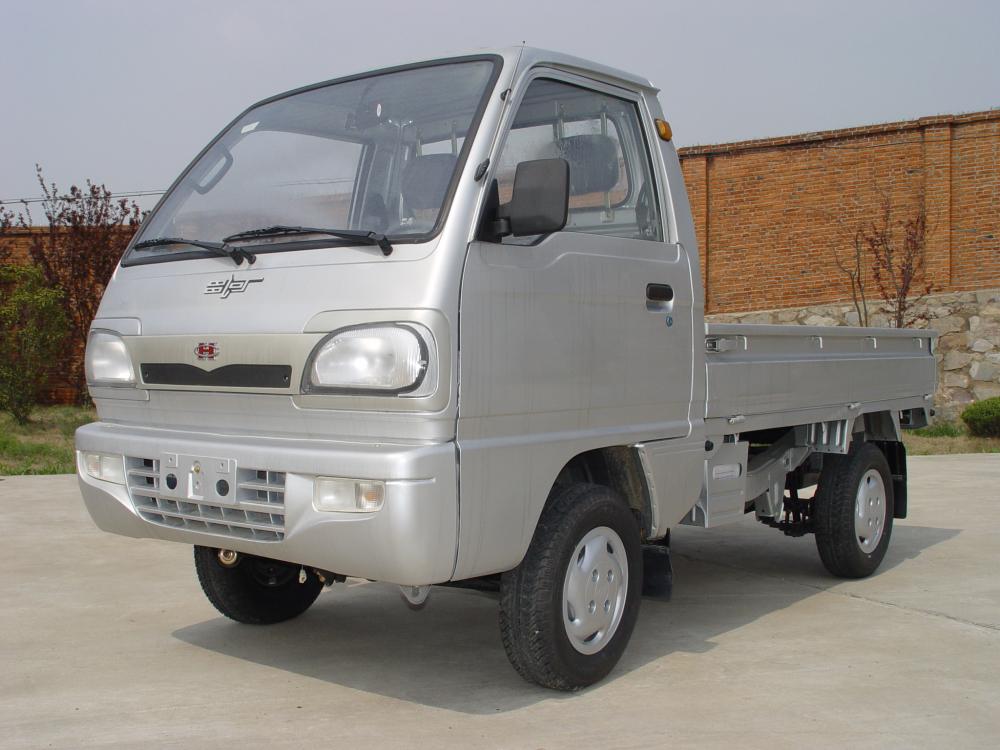

Compact Utility Truck
This compact utility truck features a strength chassis for enhanced load capacity. Its economic design and good performance-price ratio make it a useful and cost-effective solution with low repairing costs.
Technical Specifications
Overview

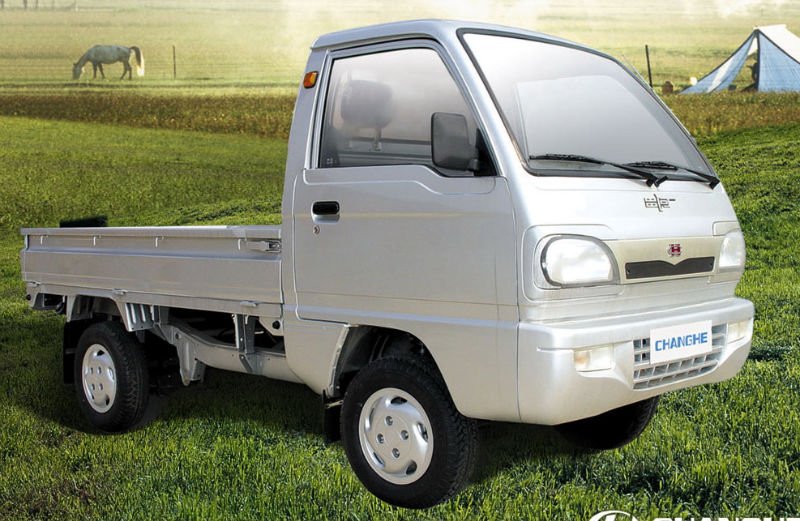

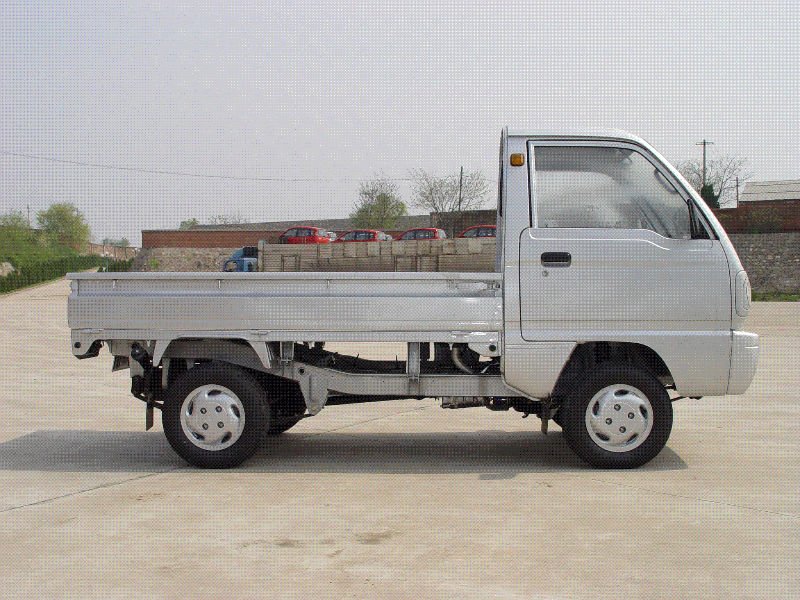

Compact and Economical Utility Truck
This mini truck is engineered with a high-strength chassis to maximize load capacity while maintaining an economical and useful profile. It offers an excellent performance-price ratio with low maintenance costs, making it an ideal choice for light-duty hauling. Its compact dimensions and tight turning radius ensure superior maneuverability in urban environments and narrow roads.
Engine & Performance
Engine Performance
35.5 kW
Max Power
72 Nm
Max Torque
105 km/h
Top Speed
Engine Specifications
| Feature | Value |
|---|---|
| Model | DA465QE/F1 |
| Type | MPI (Multi-Point Injection) |
| Displacement | 970 ml |
| Bore x Stroke | 65.5 × 72 mm |
| Compression Ratio | 8.8 |
| Emission Level | EU III |
Dimensions & Weight
Vehicle Dimensions
| Dimension | Measurement (mm) |
|---|---|
| Overall Length | 3,540 |
| Overall Width | 1,395 |
| Overall Height | 1,765 |
| Wheelbase | 2,010 |
| Front Tread | 1,205 |
| Rear Tread | 1,200 |
- Minimum Turning Radius
- 4.9 m
- Curb Weight
- 740 kg
- Gross Vehicle Weight
- 1420 kg
Transmission & Chassis
Suspension System
- Front: MacPherson strut and coil spring
- Rear: Leaf spring
Brakes
- Front: Ventilated disc
- Rear: Drum, leading and trailing
Tyre Specification
155R12LT
- Transmission
- 5-speed, all Synchromesh
- Steering
- Rack and pinion
Capacity & Utility
- Seating Capacity
- 2
- Fuel Tank Capacity
- 36 litre
