Compact Prefabricated Transformer Substation
This combined type transformer substation integrates voltage switch equipment and a transformer with distribution equipment. It is a complete set product designed for efficient power distribution.
Technical Specifications
Product Overview

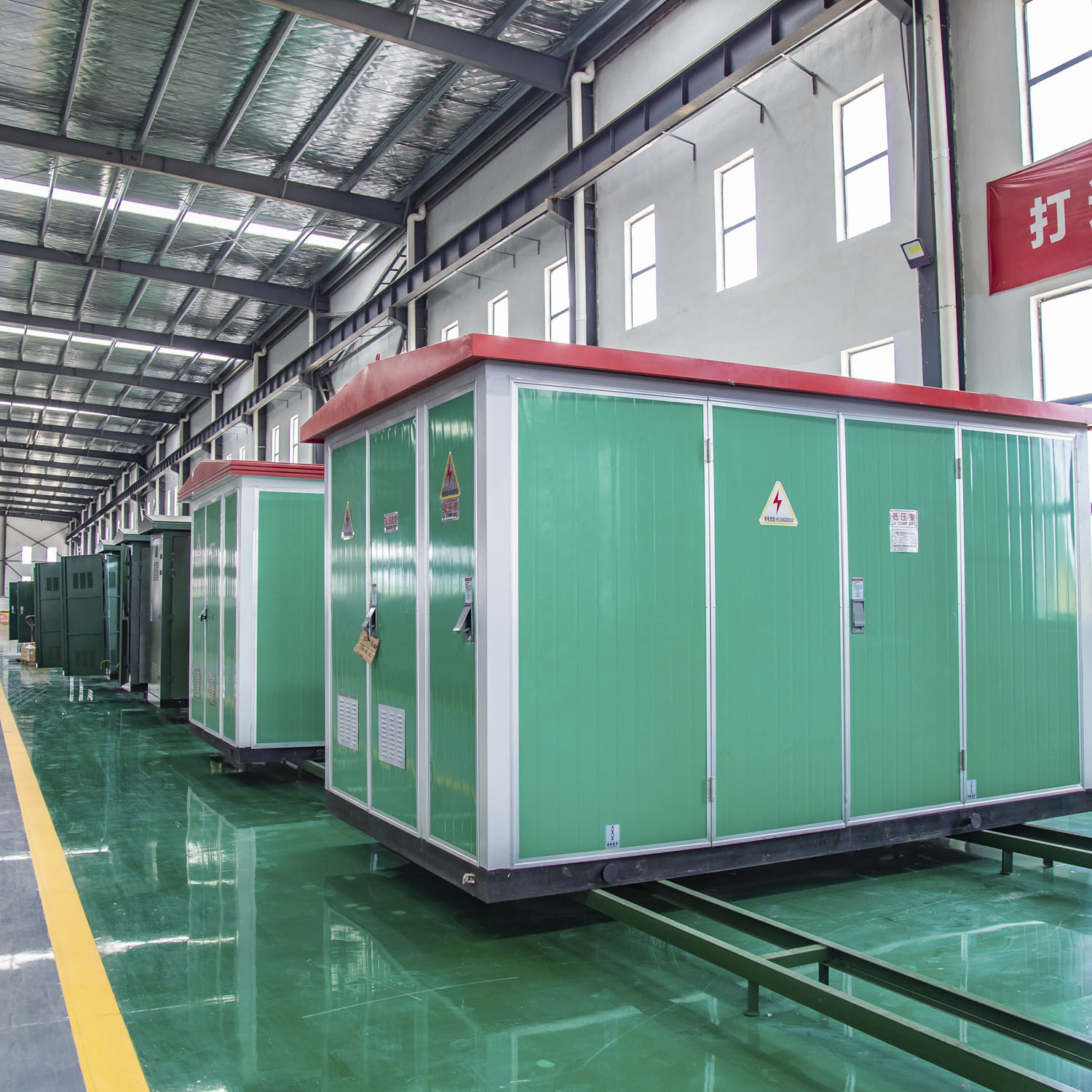

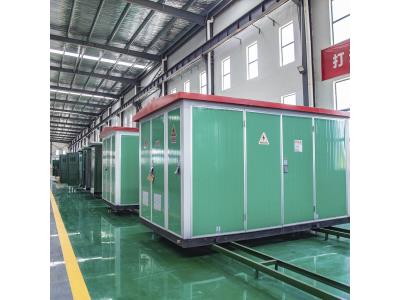

Compact Prefabricated Substation
This combined transformer substation is a complete, integrated solution designed for efficient power distribution in urban and industrial environments. It seamlessly combines high-voltage switchgear, distribution transformers, and low-voltage switchgear into a single, compact, and prefabricated enclosure. The design prioritizes safety, ease of installation, and reliability, offering flexible configurations to meet specific project requirements.
Technical Configuration
Internal Components

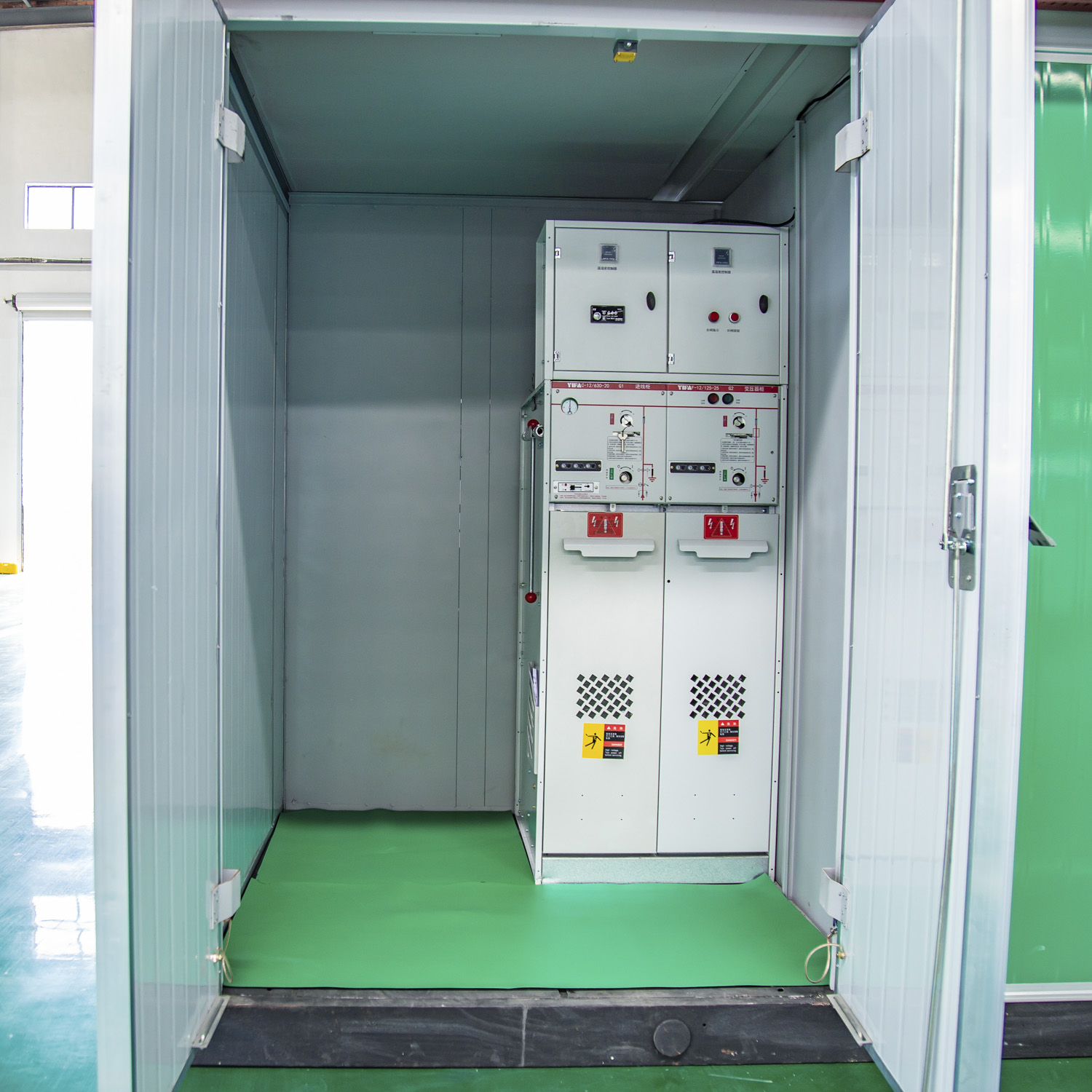

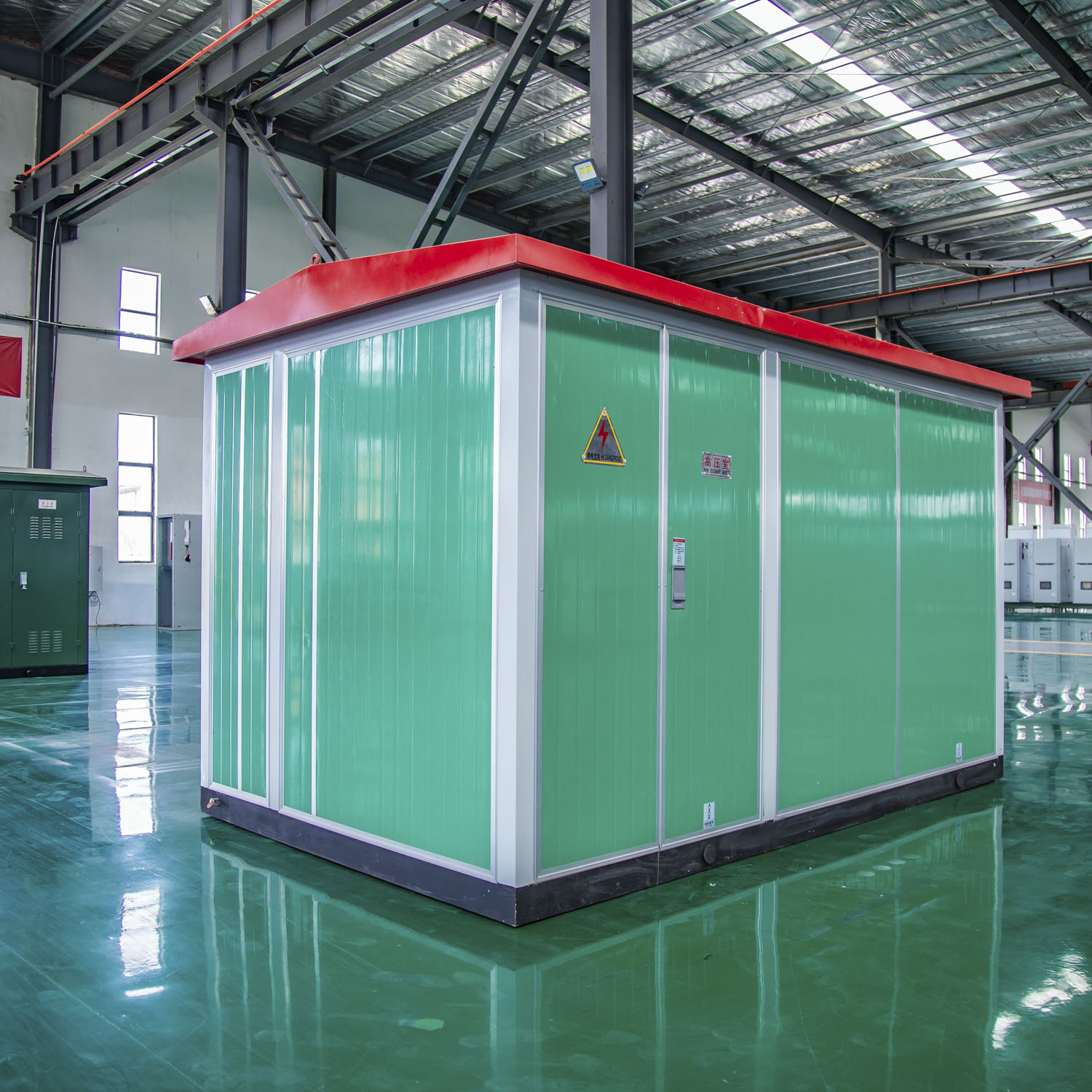

- HV switch compartment

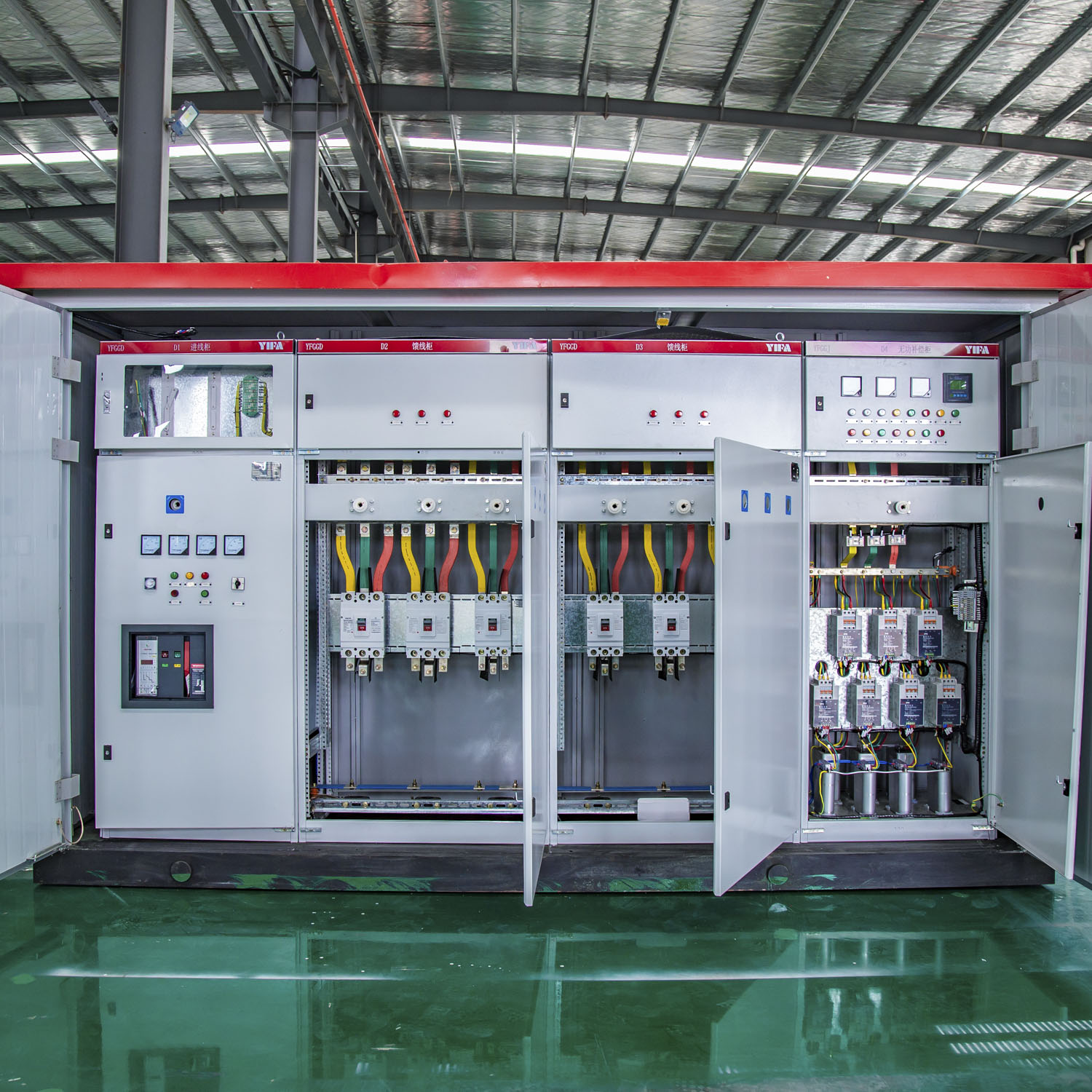

- LV switch compartment
- Relay protection compartment
- Transformer compartment
- Enclosure Materials
- Aluminum alloy plateSteel plateComposite plate
- Control System Options
- General relay protection or microcomputer-based integrated automatic control system
Logistics & Packaging
Shipping Dimensions
| Dimension | Value |
|---|---|
| Width | 800 cm |
| Depth | 1300 cm |
| Height | 2200 cm |
- Gross Weight
- 1000 kg
Certifications & Standards
Management Certifications
ISO 14001:2015OHSAS 18001:2007
- Applicable Standards
- GB 1094.1-2013GB/T 25446-2010
