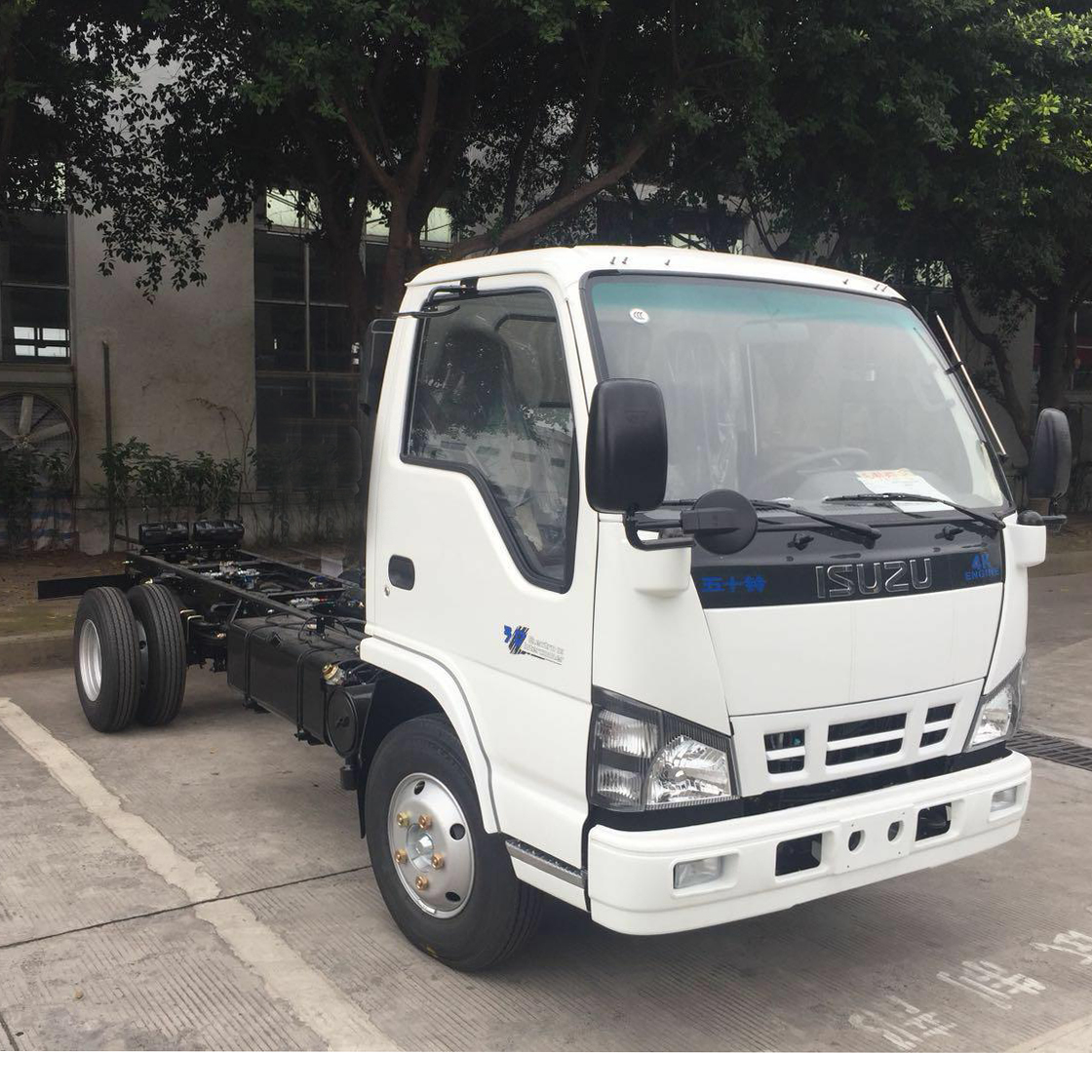

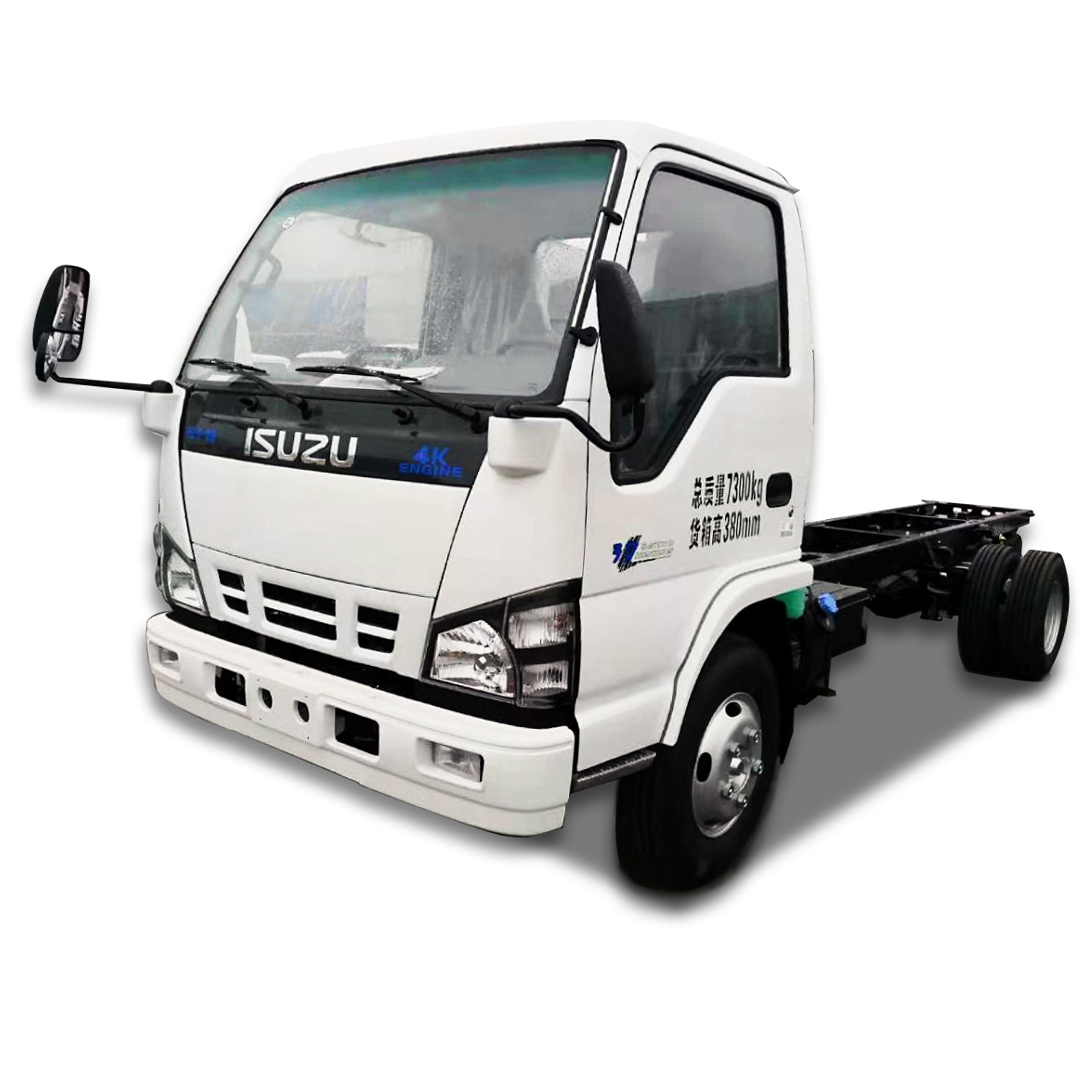

Commercial Single Cabin Truck Chassis
This single cabin truck chassis is designed for commercial vehicle applications. Its robust frame and heavy-duty suspension allow for various body configurations to suit different business needs.
Technical Specifications
Overview
Commercial Single Cabin Truck Chassis
This versatile commercial truck chassis is designed for professional applications, providing a reliable platform for various body configurations. Built with a robust frame and powered by a durable 120Hp engine, it is engineered for consistent performance under demanding conditions. The 4x2 drive system and efficient transmission ensure excellent maneuverability and productivity for diverse business logistics needs.
Key Metrics
Performance Metrics
120 Hp
Horsepower
88 Kw
Engine Power
6,435 Kg
Gross Vehicle Weight
Vehicle Parameters
- Dimensions (L x W x H)
- 5900 x 1880 x 2160 mm
- Curb Weight
- 1900 Kg
- Wheelbase
- 3360 mm
Engine & Powertrain
Engine Specifications
| Feature | Specification |
|---|---|
| Model | 4KH1-TCG40 |
| Delivery Capacity | 2999 ml |
| Drive Type | 4x2 |
- Transmission
- MSB-5SM (5 Forward, 1 Backward)
Configuration
Electrical System
- Free Maintenance Battery
- 90A Generator
- Standard Features
- Power SteeringAir ConditioningABSTubeless Tires
