Combinable Busbar
Combinable busbars are designed for flexible electrical connections and power distribution. Their modular design allows for easy expansion and customization to suit various application requirements.
Technical Specifications
Product Overview
Modular Combinable Busbar System

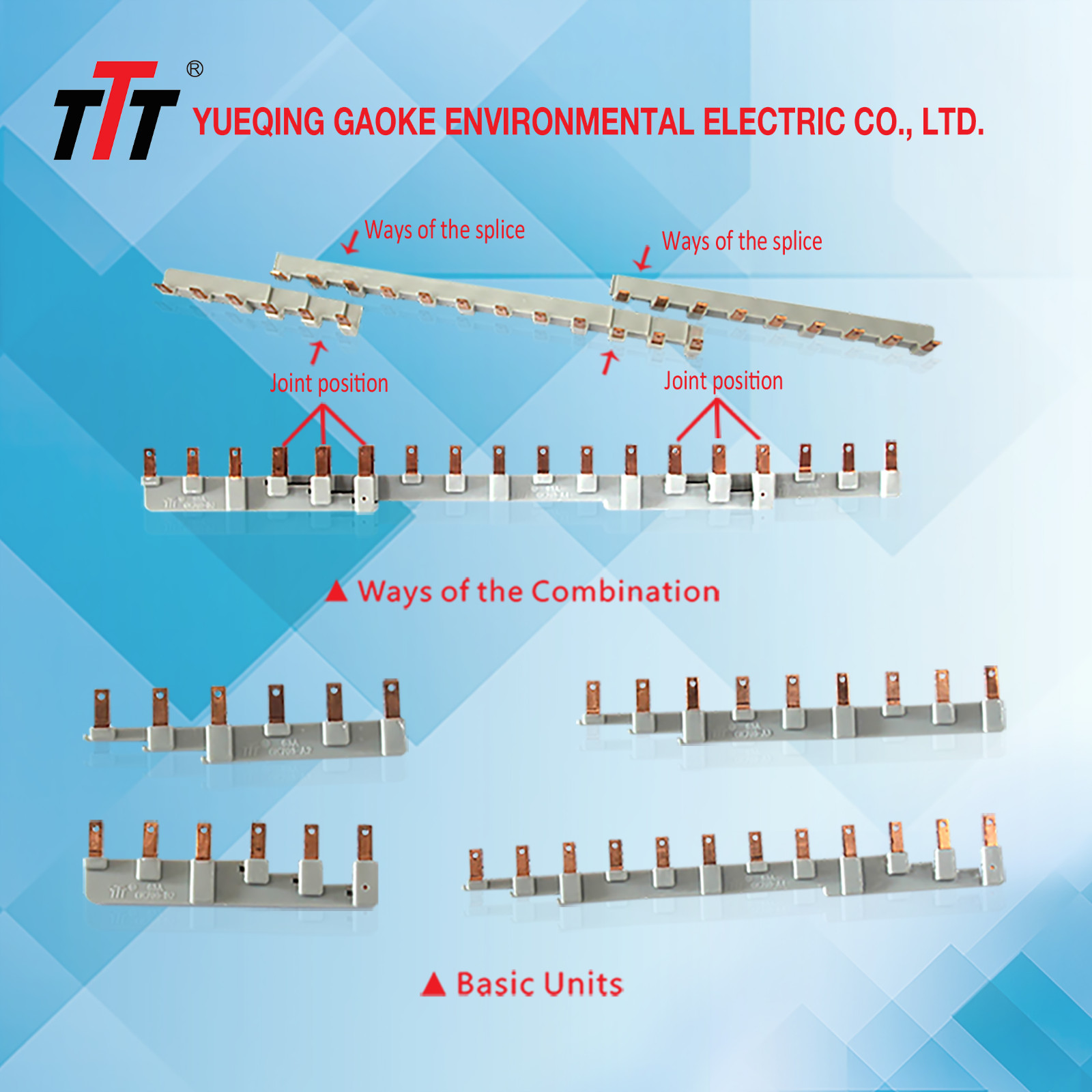

This patented combinable busbar system offers a flexible alternative to traditional busbars, allowing end-users to combine units directly to match any type and quantity of MCBs. This modular design eliminates the inconvenience of cutting busbars and enables the creation of mixed configurations without specialized factory molds. Engineered for durability, the system features a sealed structure for excellent climate stability in humid or frozen conditions and high temperature resistance.
Performance & Safety
Key Performance Metrics
120 °C
Heat Resistance
5,000 V
Withstand Voltage
- Key Features
- Climate StableSealed StructureFlame RetardantModular Design
Technical Specifications
Standard Unit Dimensions
| Model Series | Copper Thickness (mm) | Copper Width (mm) |
|---|---|---|
| GK703-63A | 1.5 | 7 |
| GK701-63A | 1.5 | 7 |
Available Configurations

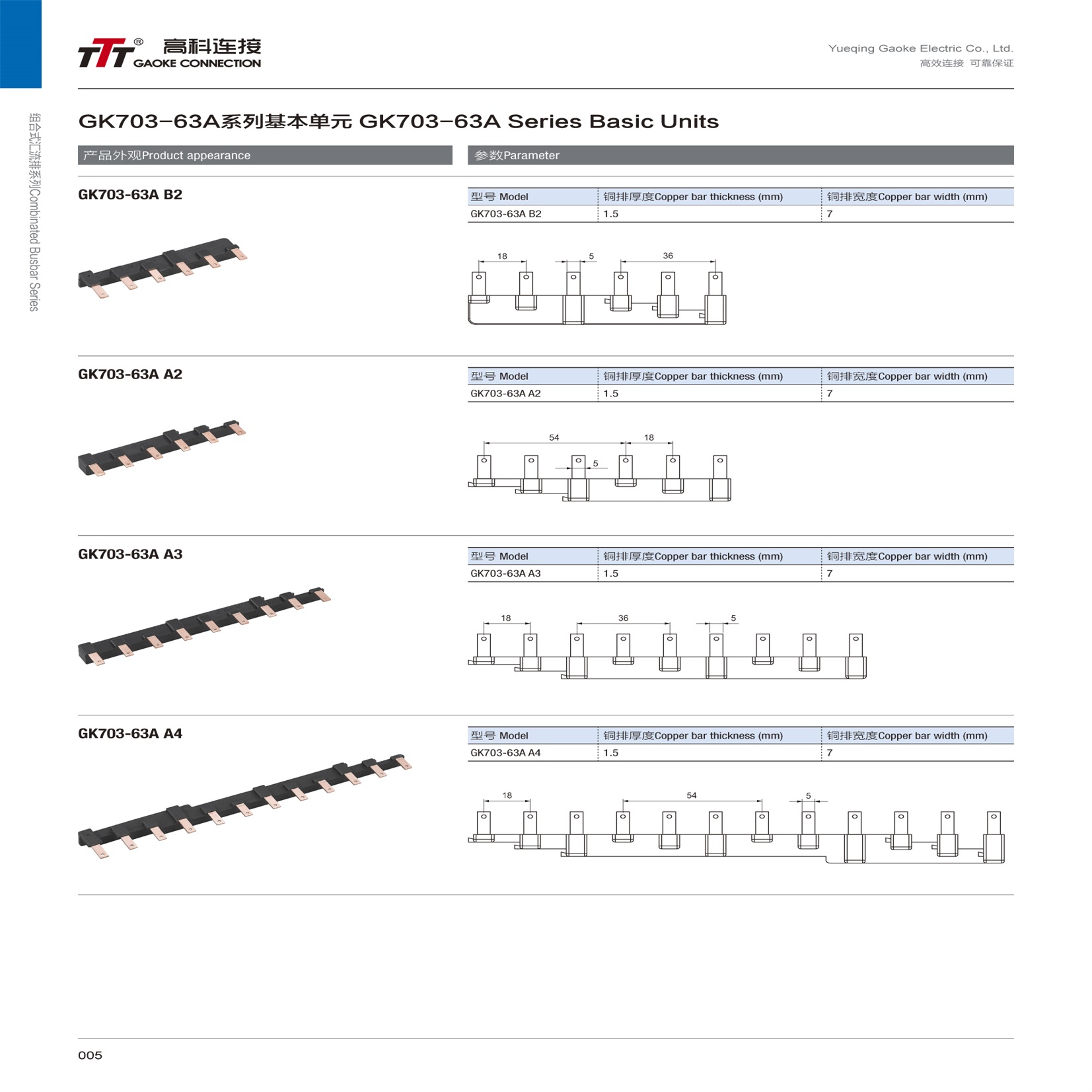

- GK703-63A (B2, A2, A3, A4)
- GK701-63A (A2, A3, A6, B6, B10, A12)
