CNC Wood Turning Lathe with Carving Spindle
This CNC wood turning lathe is equipped with a lathe cutter and carving spindle. It is designed for precise woodworking projects with automated cutting tool control and a user-friendly interface.
Technical Specifications
Overview
High-Precision CNC Wood Turning Lathe

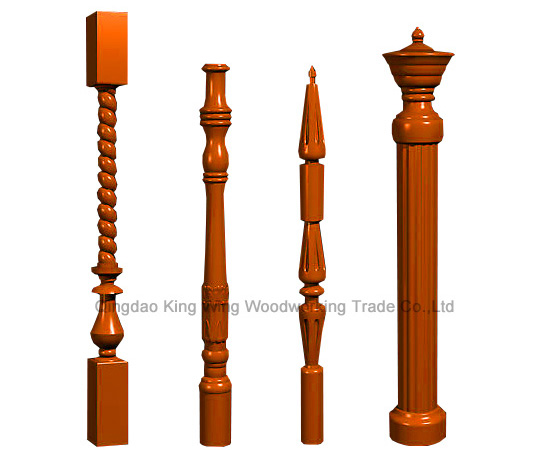

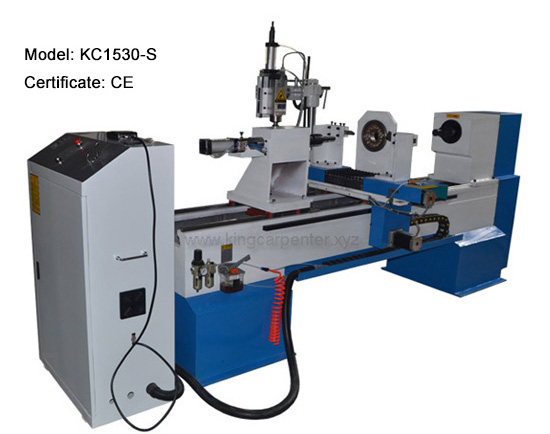

The KC1530-S is a professional-grade CNC wood turning lathe designed for high-efficiency production of intricate woodworking projects. Equipped with both a lathe cutter and a carving spindle, it offers versatility for creating detailed spindles, furniture components, and decorative art. This robust machine utilizes advanced control systems and high-quality components to ensure precision, reliability, and consistent output for complex turning operations.
Technical Specifications
- Max Working Diameter
- 300 mm
- Max Working Length
- 1500 mm
- Control System
- DSP
- Compatible Software
- CADJDpaint
Hardware Components
- Inverter
- Fuling 4KW
- Driver
- YAKO 2811
- Motor
- Stepper 450B
- Drive Type
- HIWIN rack & pinion
- Rail Guide
- HIWIN 25#
Dimensions and Weight
Weight
1,550 kg
Net Weight
1,600 kg
Gross Weight
- Packing Dimensions
- 3100 x 1200 x 1600 mm
