Technical Specifications
Overview
Professional CNC Woodworking Solution

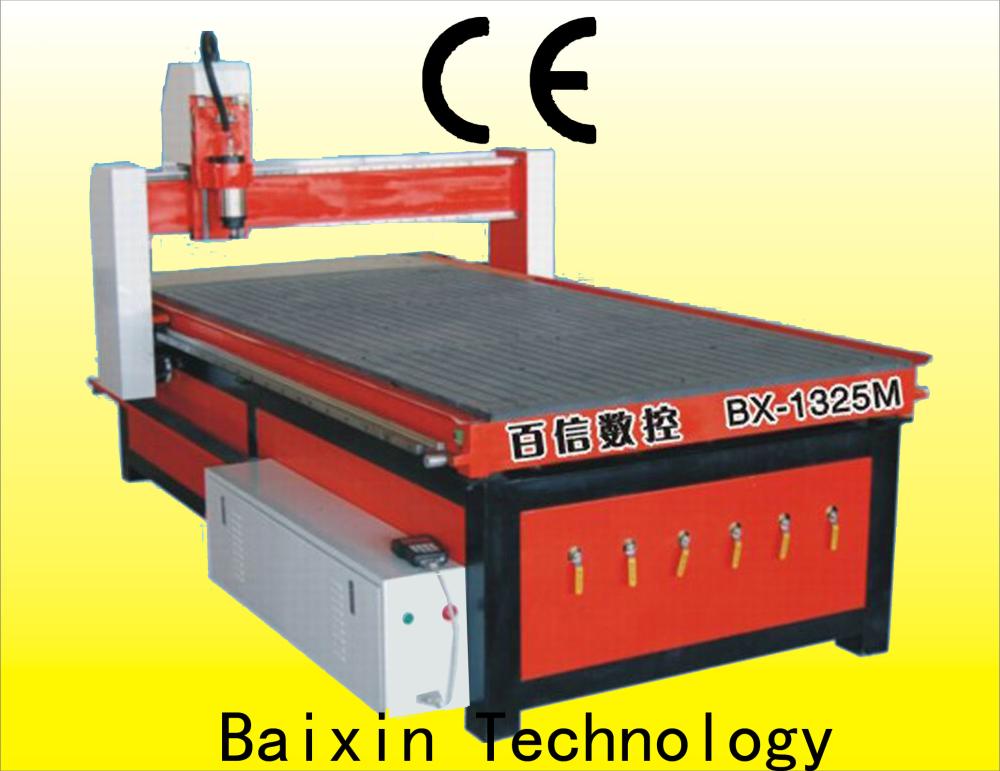

This high-performance CNC router is designed for precision cutting, engraving, and carving across a variety of materials including wood, MDF, and aluminum composite panels. It features a robust architecture with large working areas to accommodate demanding industrial applications. With customizable spindle power and advanced interface options, this machine provides the versatility needed for modern woodworking workshops.
- Compatible Materials
- MDFWoodWave PanelAluminum CompositePVC Board
Performance Metrics
Key Performance Metrics
24,000 rpm
Max Spindle Speed
0.05 mm
Repositioning Accuracy
35 m/min
Max Working Speed
Technical Specifications
Machine Configuration Comparison
| Model | Work Area (XY) | Platform Size | Max Speed |
|---|---|---|---|
| BX-1325 | 1300*2500mm | 1500*3100mm | 14m/min |
| BX-1325M | 1300*2500mm | 1500*3100mm | 35m/min |
| BX-1530 | 1500*3000mm | 1700*3600mm | 14m/min |
| BX-1530M | 1500*3000mm | 1700*3600mm | 35m/min |
Operating Requirements
- Power: AC220V/50Hz
- Supported OS: Windows 98/2000/XP
- Commands: G Code, U00, Mmg, Plt
Certifications
CE
