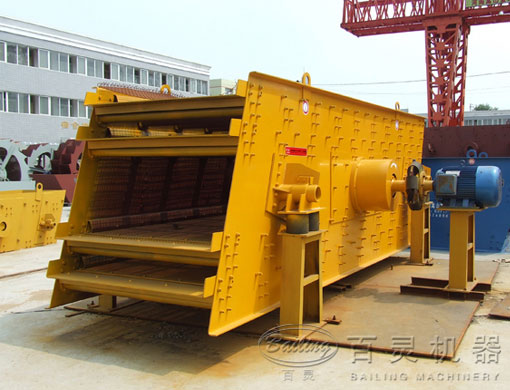

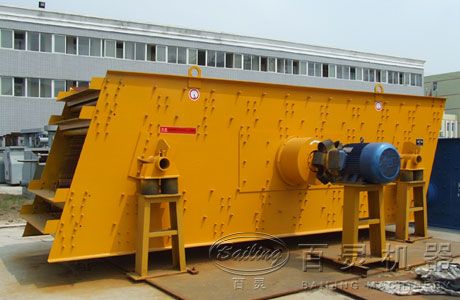

Circular Vibrating Screen for Material Separation
The circular vibrating screen is a high-efficiency machine used for separating materials of different sizes. It is designed for precise classification and efficient processing in mining, quarry, aggregate, and recycling industries.
Technical Specifications
Overview
High-Efficiency Circular Vibrating Screen
This circular vibrating screen is engineered for high-performance material separation in mining, quarry, and aggregate processing. Utilizing a barrel-type eccentric shaft vibration exciter, it delivers strong vibrating force with low electricity consumption and minimal noise. The robust design features large clearance bearings and thin-oil lubrication, ensuring excellent durability and a long service life even in demanding industrial environments.
Key Features
Advantages
- Ring groove rivet connection for advanced structure and durability
- Simple structure with eccentric block excitation
- High screening efficiency and handling capacity
- Low electricity consumption and noise levels
- Small amplitude, high frequency, and big angle design
Technical Specifications
Model Specifications
| Model | Layers | Screen Size (m²) | Mesh (mm) | Max Feed (mm) | Capacity (m³/h) | Power (kW) |
|---|---|---|---|---|---|---|
| 2YK1245 | 2 | 5.4 | 5-50 | 200 | 35-206 | 11 |
| 3YK1245 | 3 | 5.4 | 5-50 | 200 | 35-206 | 11 |
| 2YK1545 | 2 | 6.75 | 5-50 | 400 | 44-258 | 15 |
| 3YK1545 | 3 | 6.75 | 5-50 | 400 | 44-258 | 15 |
| 3YK1548 | 3 | 7.2 | 5-50 | 400 | 47-275 | 15 |
| YK1848 | 1 | 8.8 | 5-100 | 400 | 56-330 | 15 |
| 2YK1848 | 2 | 8.8 | 5-100 | 400 | 56-330 | 15 |
| 3YK1848 | 3 | 8.8 | 5-100 | 400 | 56-330 | 22 |
| 2YK1860 | 2 | 9.72 | 5-100 | 400 | 63-586 | 22 |
| 3YK1860 | 3 | 9.72 | 5-100 | 400 | 63-586 | 22 |
| 2YK2160 | 2 | 12.6 | 5-100 | 400 | 81-720 | 30 |
| 3YK2160 | 3 | 12.6 | 5-100 | 450 | 81-720 | 30 |
| 4YK2160 | 4 | 12.6 | 5-100 | 400 | 66-720 | 45 |
| 4YK2460 | 4 | 14.4 | 5-150 | 200 | 450-650 | 45 |
- Typical Operating Frequency
- 970 r/min
- Screen Slope Range
- 15-20°
