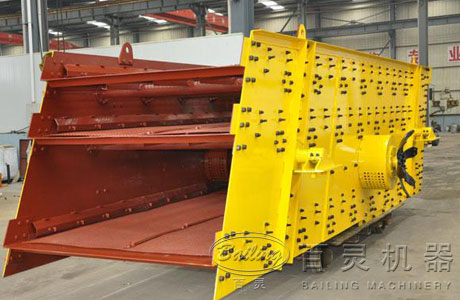

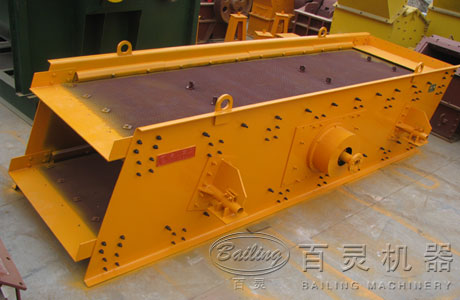

Circular Vibrating Screen for Material Separation
The circular vibrating screen employs a circular motion for efficient, multi-layer material separation. Designed with an eccentric shaft vibration exciter and adjustable eccentric block, it ensures effective screening across various specifications.
Technical Specifications
Product Overview
High-Efficiency Material Separation
This circular vibrating screen is engineered for high-efficiency material separation and sizing across industrial applications like mining and aggregate processing. Utilizing a barrel-type eccentric shaft and adjustable eccentric block, it delivers precise circular motion for optimal screening performance. The robust design incorporates large clearance bearings with thin oil lubrication, ensuring low noise operation, reduced power consumption, and extended service life.
Key Features
Key Features
- Advanced ring groove rivet connection for superior durability
- High-frequency, small-amplitude vibration for increased handling capacity
- Adjustable vibration swing via eccentric block design
- Low-noise operation with thin-oil lubricated large clearance bearings
- Multi-deck configuration options for versatile material sizing
Technical Specifications
Performance Metrics
970 r/min
Standard Frequency
50 mm
Max Mesh Size
400 mm
Max Feeding Size
Model Specifications
| Model | Layers | Area (m²) | Capacity (m³/h) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| 2YK1245 | 2 | 5.4 | 35-206 | 11 | 4,320 |
| 3YK1245 | 3 | 5.4 | 35-206 | 11 | 4,460 |
| YK1535 | 1 | 5.25 | 34-200 | 11 | 3,355 |
| 3YK1535 | 3 | 5.25 | 34-200 | 15 | 5,710 |
| YK1545 | 1 | 6.75 | 44-258 | 11 | 3,900 |
| 2YK1545 | 2 | 6.75 | 44-258 | 15 | 4,370 |
| 3YK1545 | 3 | 6.75 | 44-258 | 15 | 5,832 |
| 3YK1548 | 3 | 7.2 | 47-275 | 15 | 6,070 |
| 4YK1548 | 4 | 7.2 | 47-275 | 18.5 | 7,090 |
