Circuit Breaker Latching Solenoid Coil
This latching solenoid coil is designed for circuit breaker applications, facilitating both closing and opening operations. It features a shunt coil and trip coil for remote tripping and control in power distribution systems.
Technical Specifications
Overview
Professional Latching Solenoid Coil

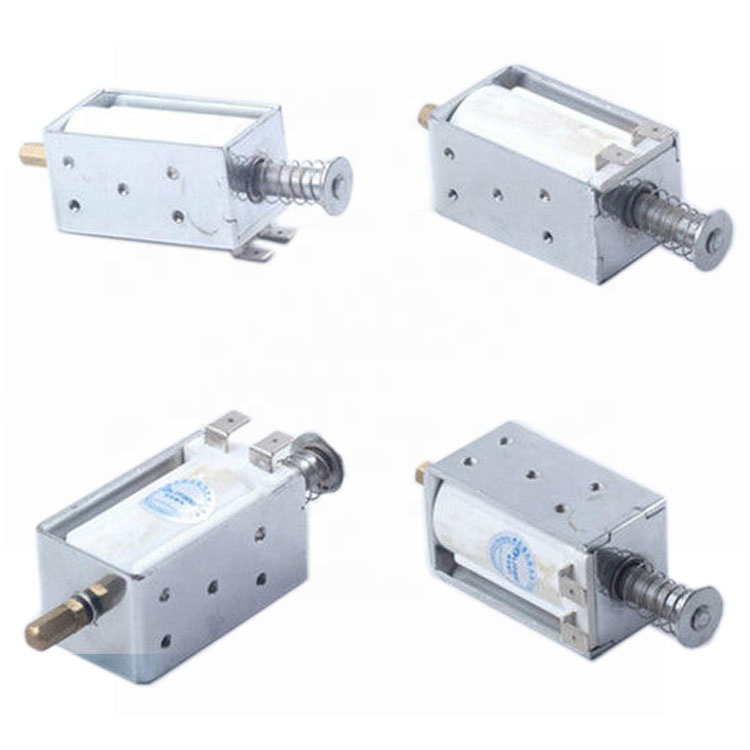

This latching electromagnetic solenoid is designed for critical circuit breaker operations, specifically engineered for ZN63 (VS1) type breakers and PT handcarts. It serves as a core-driven control module featuring a precision moving core, mounting base, and return spring assembly. Built for durability and high-temperature environments, this component ensures consistent, reliable closing and opening performance in power transmission and distribution systems.
Technical Details
Assembly Components
- Electromagnetic Coil
- Moving Core
- Mounting Base
- Return Spring
Operational Logic
| State | Action |
|---|---|
| Charged | Retracts to operate closing |
| Uncharged | Pops up to prevent closing |
- Compatible Systems
- ZN63VS1PT Handcart
Quality & Performance
Key Performance Features
High Temperature ResistantLong Service LifeReliable PerformancePrecision Manufactured
