Technical Specifications
Product Overview
High-Efficiency Centrifugal Concentration

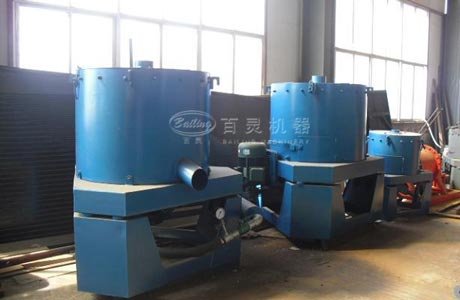

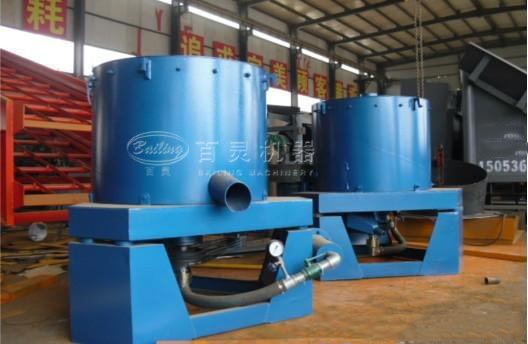

This centrifugal concentrator, also known as a centrifugal chute, utilizes high-speed rotation to generate powerful centrifugal forces that significantly enhance gravity separation. It is engineered to effectively recover ultra-fine ore particles, achieving recovery rates of over 90% for particles in the 37-39 micron range. Designed for high automation and a compact footprint, this equipment optimizes processing capacity while drastically shortening separation times for various minerals including gold, tungsten, lead, manganese, and iron.
- Key Features
- High Recovery RateFine Particle RecoveryAutomated OperationCompact FootprintEnhanced Gravity Separation
Technical Specifications
Model Specifications
| Model | Capacity (T/H) | Motor Power (KW) | Rotation Speed (r/min) | Approx. Weight (Kg) |
|---|---|---|---|---|
| STLB20 | 1-2 | 0.75 | 800 | 160 |
| STLB30 | 2-3 | 1.5 | 600 | 600 |
| STLB60 | 10-20 | 4 | 480 | 1,400 |
| STLB80 | 30-40 | 11 | 400 | 2,200 |
| STLB100 | 50-80 | 18.5 | 360 | 3,700 |
Operational Parameters
- Feeding Density: 10-50%
- Feeding Size: 0-6mm (model dependent)
- Fluidization Water: 1-30 T/H (model dependent)
- Pressure Water: 0.05-0.3 Mpa
Applications
Suitable Minerals
GoldTungstenLeadManganeseIron
