Centrifugal Blower Module
This centrifugal blower module features an integrated motor and electronic control. Its compact design ensures efficient air movement in vacuum cleaners and other household appliances.
Technical Specifications
Product Overview
VMM30 Centrifugal Blower Module
The VMM30 is a high-performance centrifugal blower module engineered for demanding air movement applications, such as vacuum cleaners and household appliances. This compact unit features an integrated motor and electronic control system, ensuring reliable operation and easy integration. Designed for efficiency, it delivers substantial airflow and static pressure while maintaining a controlled noise output.
Performance Metrics
Core Performance
22,500 rpm
Rated Speed
1 m³/min
Max Wind Volume
4.2 kPa
Max Static Pressure
90 dB
Max Noise Level
Electrical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Rated Voltage | 14.4V |
| Phase | 3-Phase |
| Poles | 12-Pole |

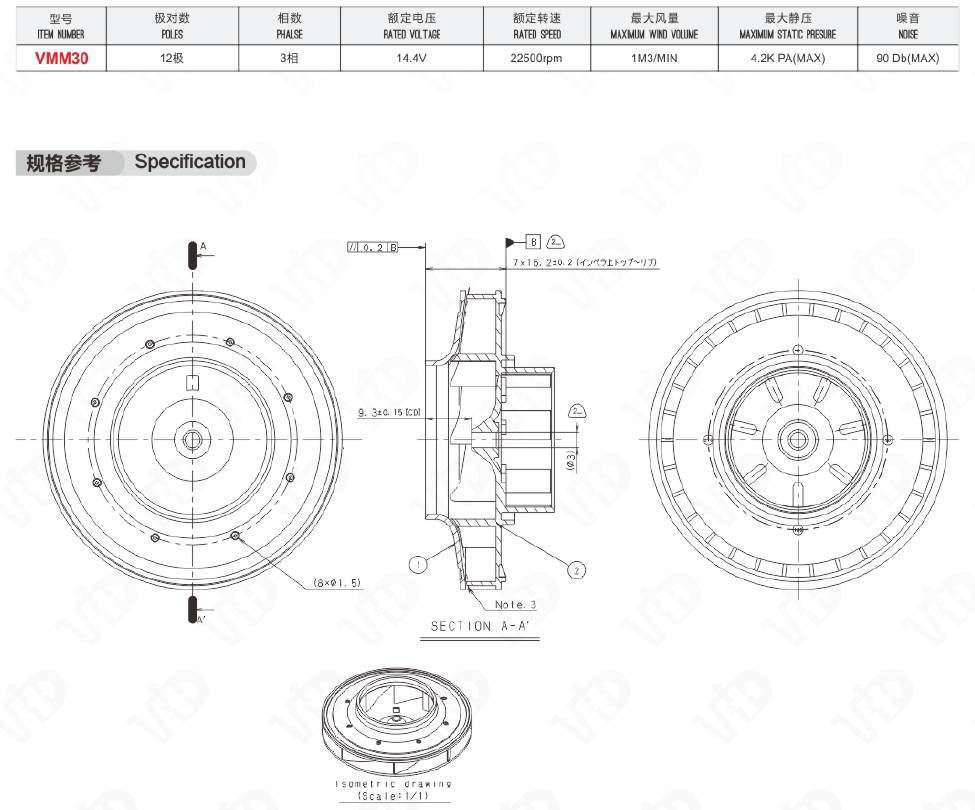

Mechanical Dimensions
Key Dimensions
- CD Dimension: 9.3 ± 0.15 mm
- Impeller Top to Rib: 7 x 15.2 ± 0.2 mm
- Mounting Holes: 8 x 1.5 mm diameter
