Central Locking DC Motor
This DC motor is designed for central locking systems in vehicles. It provides the rotational force necessary for locking and unlocking mechanisms.
Technical Specifications
Overview
Compact DC Motor for Locking Systems

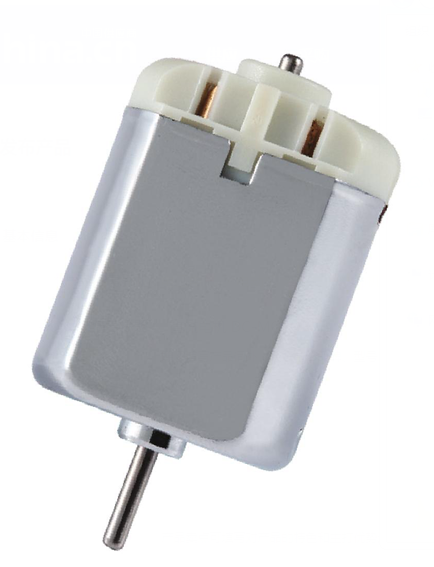

This compact DC motor is engineered specifically for central locking mechanisms in automotive and security applications. Featuring a durable metal housing and a robust steel shaft, it ensures reliable rotational power for locking and unlocking operations. The design includes integrated overcurrent protection via an onboard PTC thermistor for enhanced safety and longevity.
- Common Applications
- Automotive Central LockingSecurity SystemsAccess Control

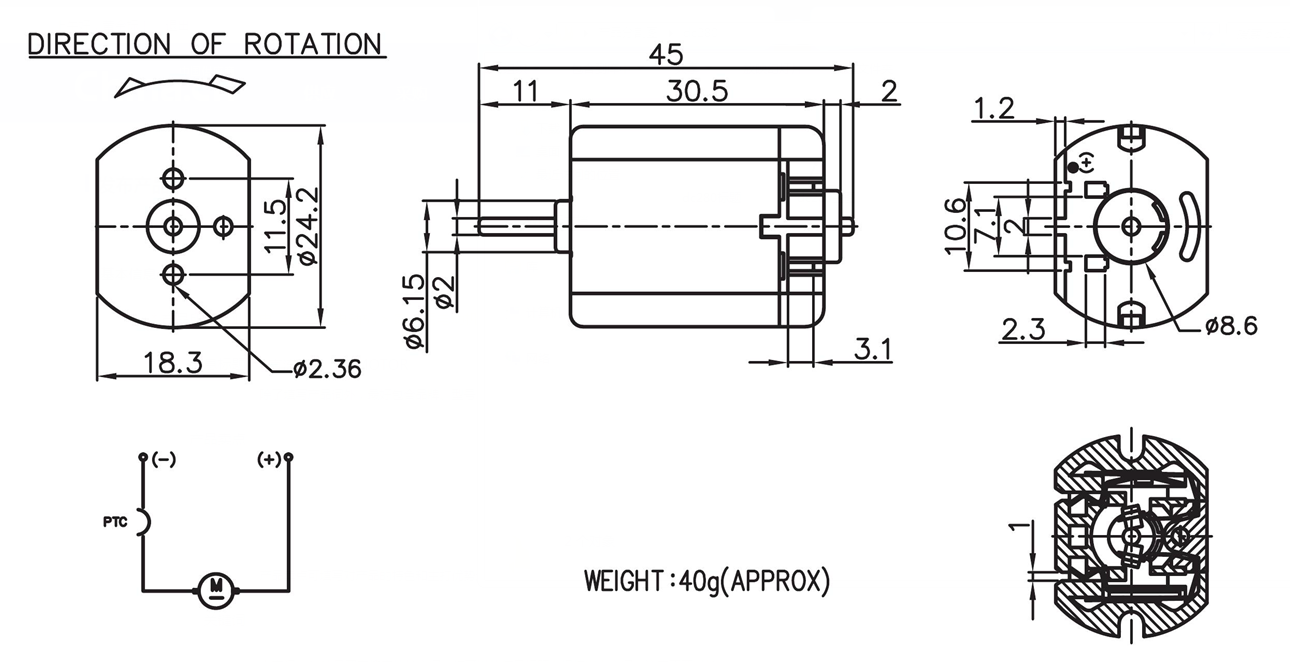

Physical Specifications
Construction Features
Metal HousingPlastic End CapSteel ShaftPTC Protection
- Motor Body Length
- 45 mm
- Shaft Diameter
- 2 mm
- Approximate Weight
- 40 g
- Mounting Hole Diameter
- 2.36 mm
Performance Data
Model Performance Comparison
| Model | Voltage | Max Speed (RPM) |
|---|---|---|
| DC-280P-14310-N | 24.0V | 18,000 |
| DC-280ST-18165P | 12.0V | 17,250 |
| DC-280ST-18180P | 12.0V | 15,000 |
| DC-280ST-20150P | 12.0V | 18,750 |
