Overview

Advanced Large-Scale Irrigation

The CP600 Center Pivot system is a high-capacity, automated irrigation solution designed for diverse crops including corn, wheat, alfalfa, and potatoes. It maximizes productivity by covering up to 1200 acres with a single unit while reducing water consumption by 30% to 50%. This system integrates high-quality mechanical components to ensure 90% spray uniformity and reliable long-term performance in demanding agricultural environments.

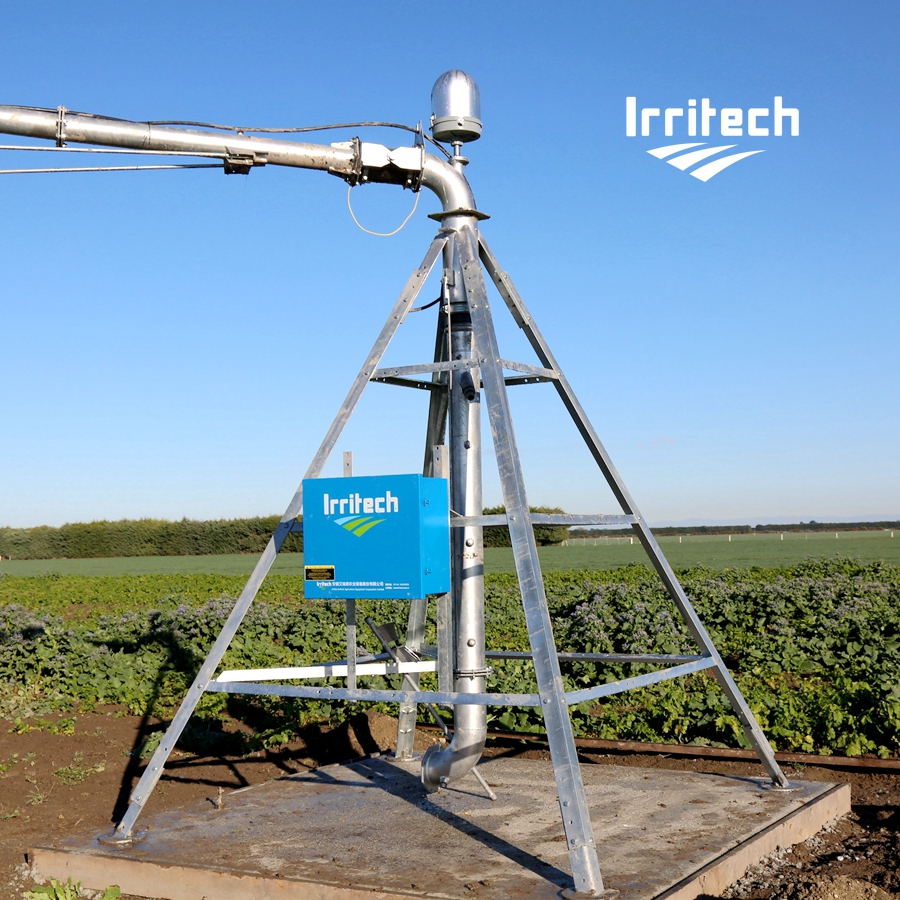

Center pivot irrigation system in field — A large-scale center pivot system providing uniform water distribution across a crop field.

Key Performance Metrics

Performance Highlights

50 %

Water Saving Up To

90 %

Spray Uniformity

50 %

Yield Increase Up To

1,200 acres

Max Coverage

Mechanical Components

Drive & Transmission

Component	Specification Options
Motor	25.5:1 (1.5hp) or 40:1 (0.75hp)
Gearbox	50:1 or 52:1 Ratio
Couplers	Genuine UMC heavy-duty
Collector Rings	Genuine UMC

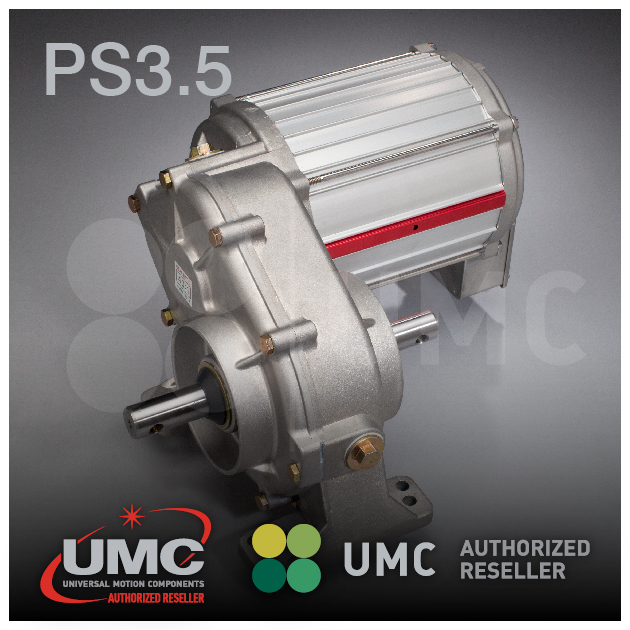

Heavy duty irrigation gearbox — Precision-engineered gearbox ensuring reliable power transmission for the drive towers.

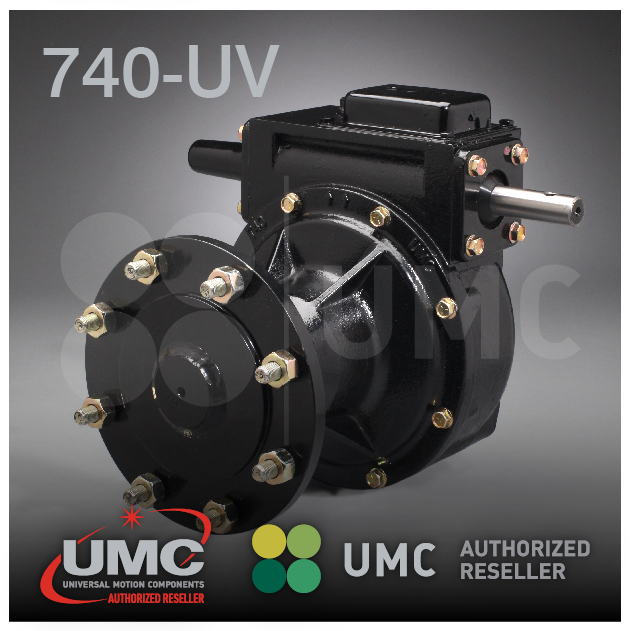

UV-resistant irrigation drive component — Durable drive components designed to withstand continuous operation and harsh environmental exposure.

Structure & Spans

Span & Pipe Details

Feature	Dimensions/Specs
Center Pivot Pipe	6 5/8" (168mm) or 8 5/8" (219mm)
Span Pipe Diameter	5" (127mm), 6 5/8" (168mm), or 8" (203mm)
Span Lengths (m)	37.5, 43.3, 49.1, 54.9, or 60.7
Overhang Lengths (m)	2.7, 5.5, 8.2, 11, 16.5, 19.5, or 25
