Overview

Advanced Irrigation Solution

This automated irrigation system is designed for large-scale agricultural operations, providing efficient water distribution for crops ranging from grains and vegetables to fruit trees. It supports both center pivot and lateral move configurations, allowing for flexible coverage across diverse field shapes. The system is engineered to reduce labor requirements while significantly improving water usage efficiency and crop yields.

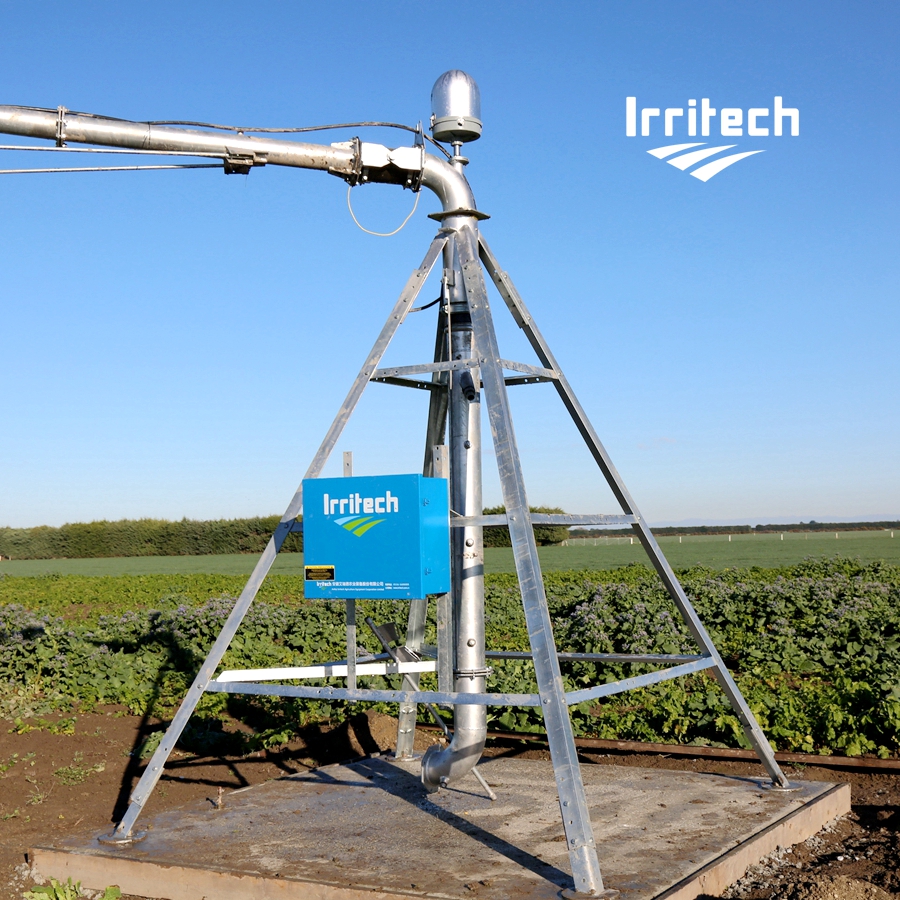

Wide shot of center pivot irrigation system in a field — The system provides large-scale coverage with minimal infrastructure requirements.

Key Advantages

Operational Benefits

Covers up to 1200 acres with a single unit
Reduces water consumption by 30% to 50%
Achieves up to 90% spray uniformity
Integrates irrigation, seeding, and fertilizing in one step
Automated operation minimizes manual labor requirements

Technical Specifications

Detailed Technical Parameters

Parameter	Specification Options
Center Pivot Diameter	6 5/8" (168mm) or 8 5/8" (219mm)
Pipe Diameter	5" (127mm), 6 5/8" (168mm), or 8" (203mm)
Span Length	37.5m, 43.3m, 49.1m, 54.9m, or 60.7m
Tire Specification	14.9-24 or 11.2-24 (with vacuum/inner tube)
Drive Motor	1.5hp or 0.75hp options

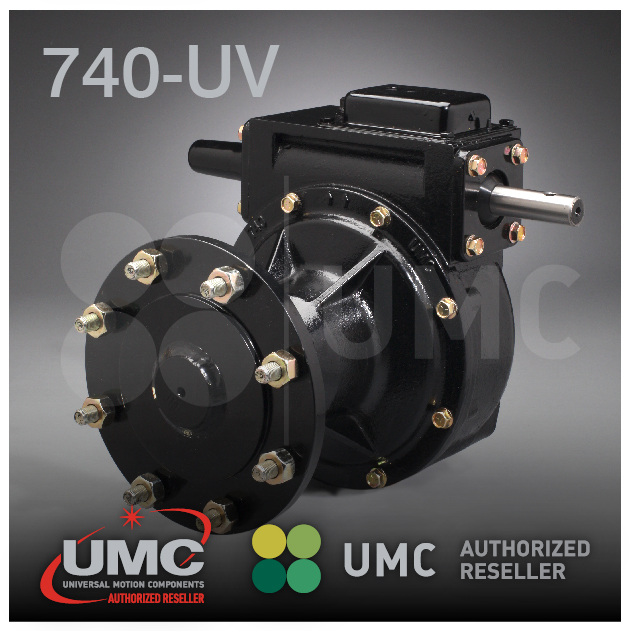

Gearbox Ratio	50:1 or 52:1

Compatibility Notice: 8 5/8 inch (219mm) pipes are specifically designed for spans of 43.3m and 49.1m.

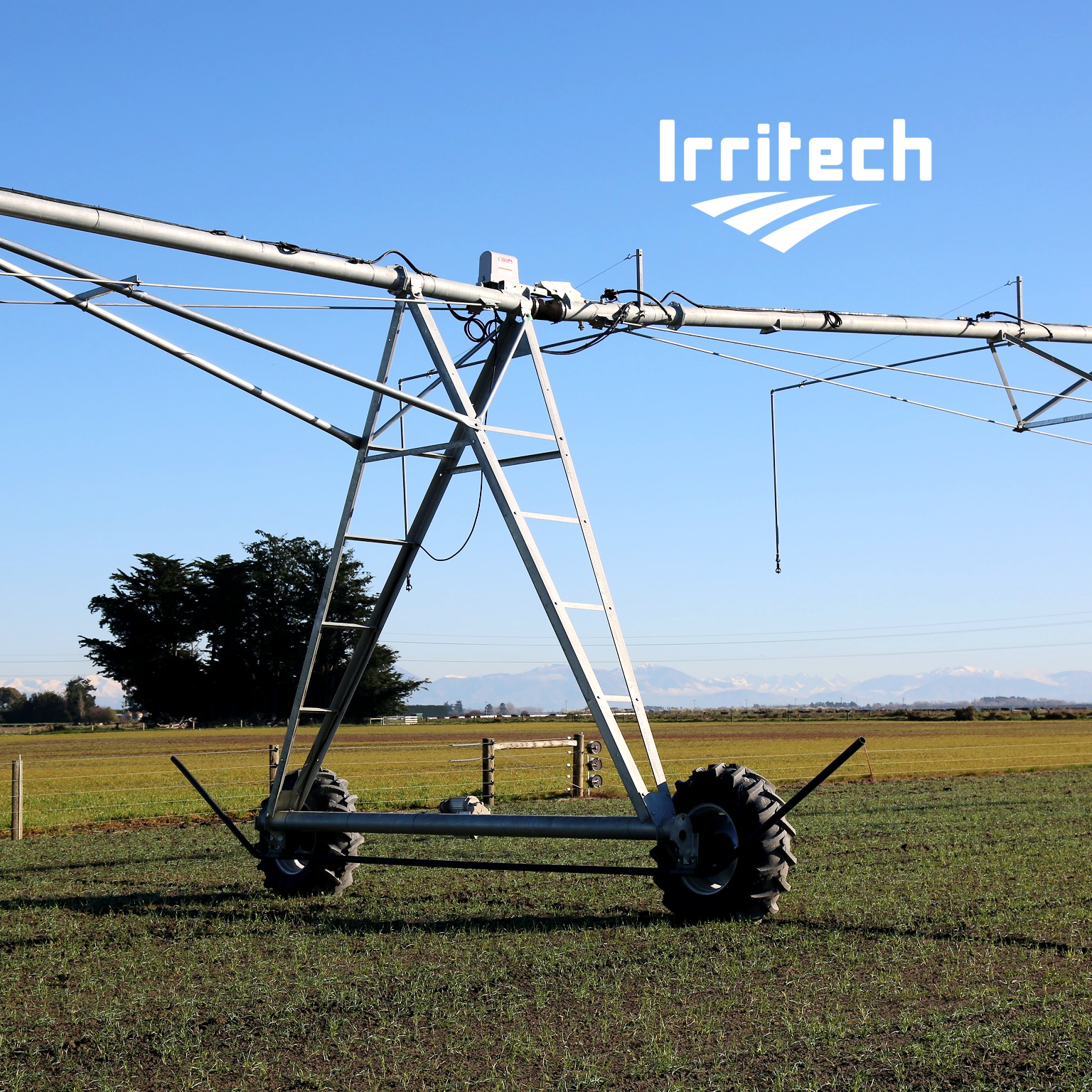

Close up of irrigation tower and wheel structure — Robust structural design ensures stability and longevity in agricultural environments.

Components & Safety

Safety & Control Features: Safety Circuit Indicator LightStainless Steel Control PanelNight Operation LED LightingTroubleshooting QR CodesArmored Cabling
