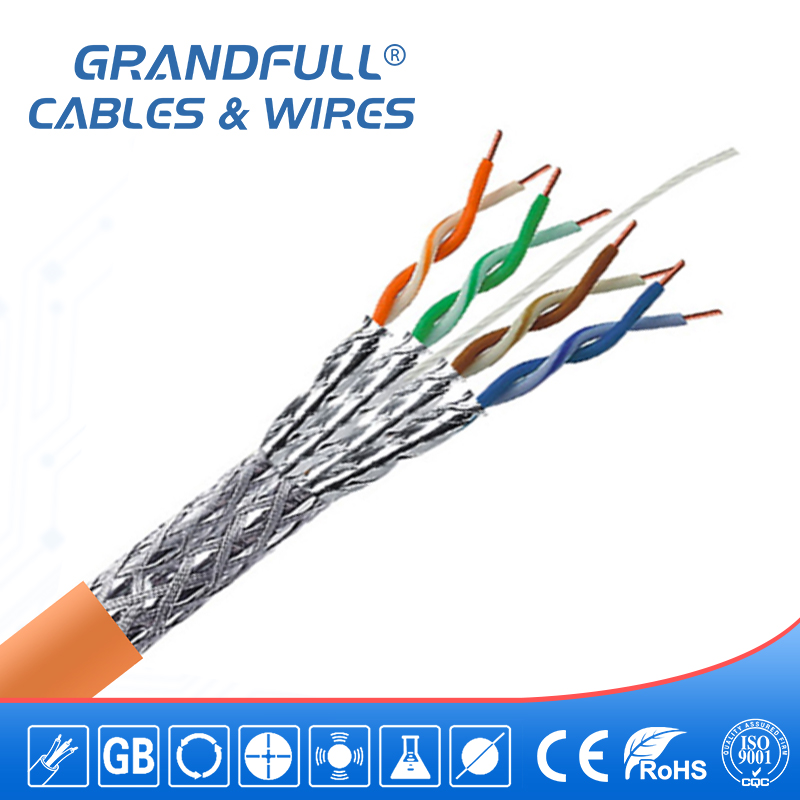

Cat7 Shielded Twisted Pair LAN Cable
This Cat7 LAN cable is designed for indoor installations requiring long transmission distances and minimal signal loss. It supports bandwidths up to 600 MHz and data transfer rates of up to 10 Gbps.
Technical Specifications
Product Overview
High-Performance Cat7 Networking Solution
This Cat7 Shielded Twisted Pair LAN cable is engineered for high-speed data environments, supporting bandwidths up to 600MHz and 10Gbps transmission rates. Designed primarily for indoor installations, it features robust double shielding (S/FTP) to minimize interference and signal loss over long distances. The cable is ideal for demanding applications including 5G networks, data centers, and integrated smart building wiring systems.
Technical Performance
Key Performance Metrics
600 MHz
Frequency Bandwidth
10 Gbps
Data Transfer Rate
305 m
Standard Length

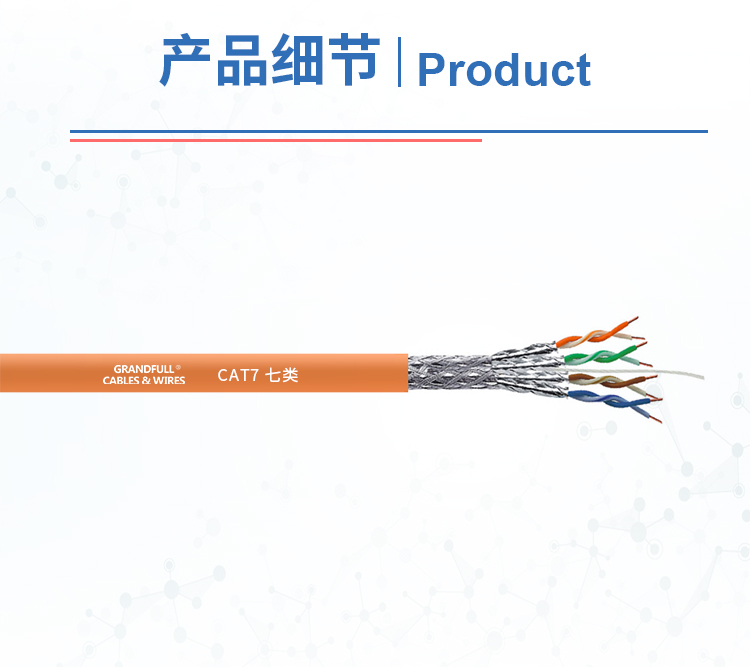

Construction Details
Conductor Specifications
| Feature | Specification |
|---|---|
| Wire Gauge | 23AWG |
| Conductor Material | Oxygen-free Bare Copper (BC) |
| Conductor Size | 4*2*0.57mm (0.58mm) |
| Insulation Material | PE / HDPE |
| Shielding Type | SFTP (Shielded Foiled Twisted Pair) |
| Number of Pairs | 4 Pairs |
Physical Characteristics
Jacket & Durability
| Property | Details |
|---|---|
| Outer Sheath Material | PVC / LSZH PVC |
| Sheath Thickness | ≥0.6mm |
| Operating Temperature | -20°C to +70°C |
| Conductor Elongation | >30% |
| Capacitance (Max) | 5.4nF/100m |
Compliance & Testing
- Certifications & Standards
- ISO9001ISO14001ISO18001CERoHSFluke Tested
Application & Services
Recommended Applications
- 5G Network Infrastructure
- Intelligent Building Systems
- Smart Home Integrated Wiring
- Data Centers
- Voice, Image, and Video Transmission
Business Services
- OEM Service Available
- Customizable Jacket Color
- Customizable Cable Printing
- Free Samples Available for Testing

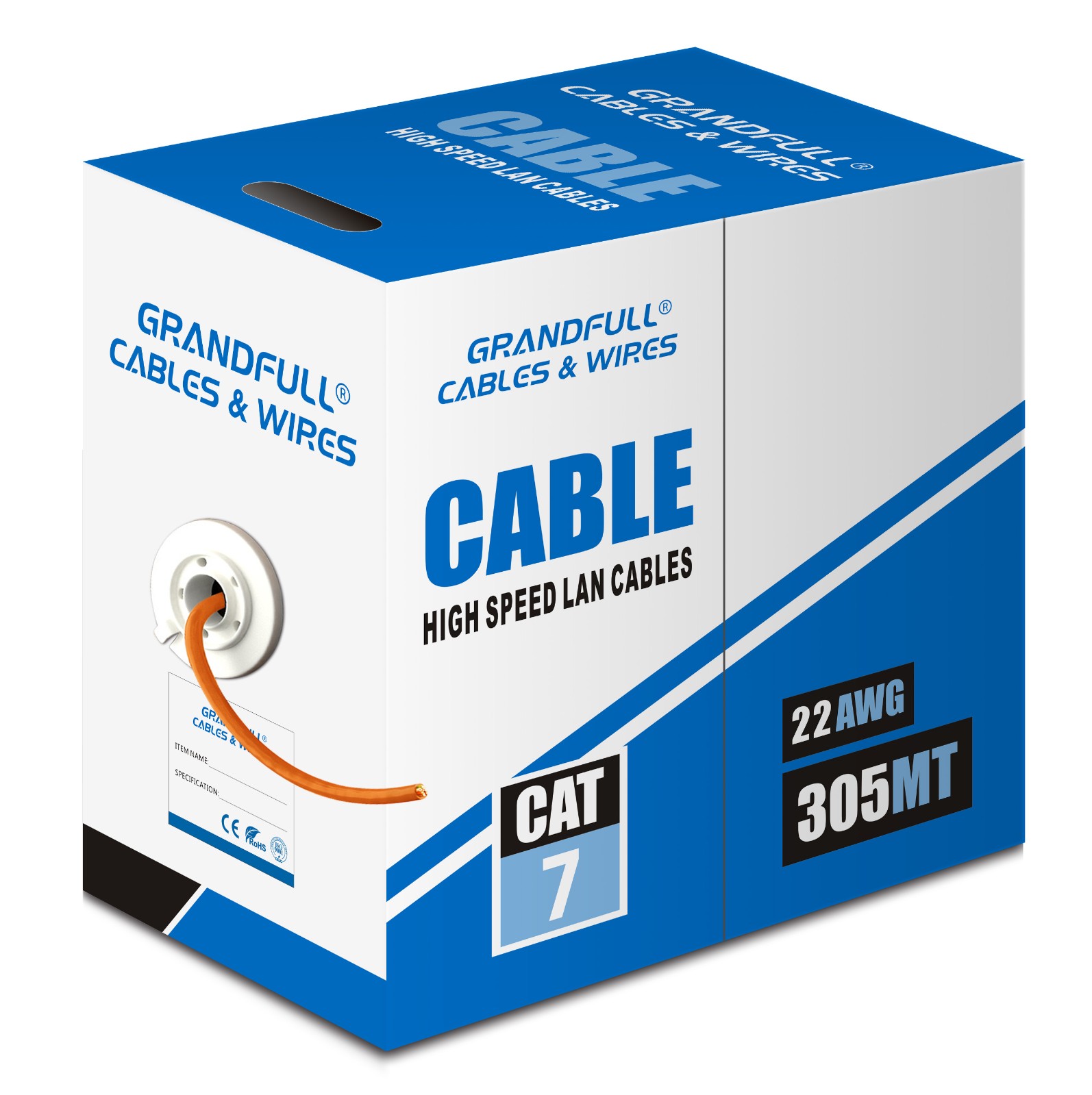

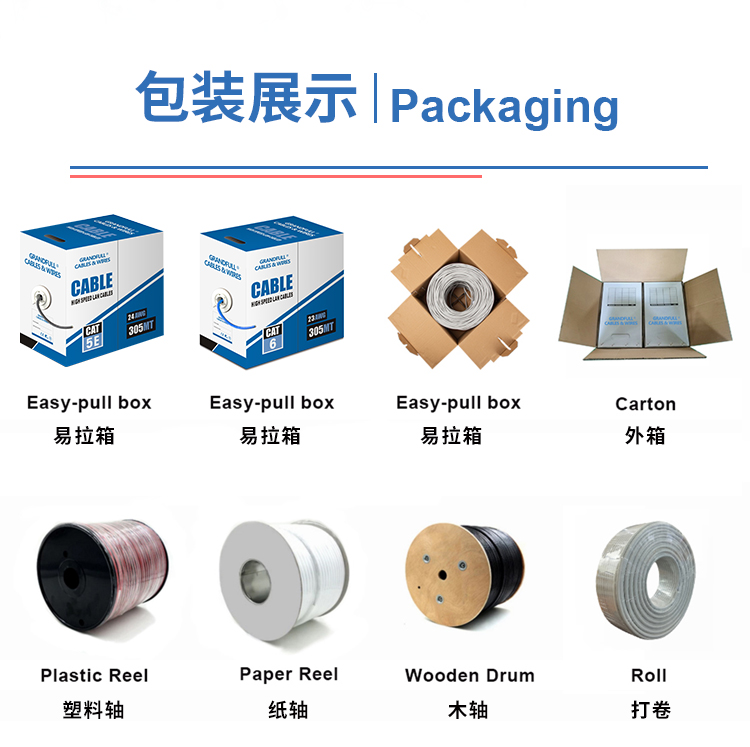

Packaging
Available Packaging Options
Easy-pull BoxCartonPlastic ReelPaper ReelWooden DrumRoll
