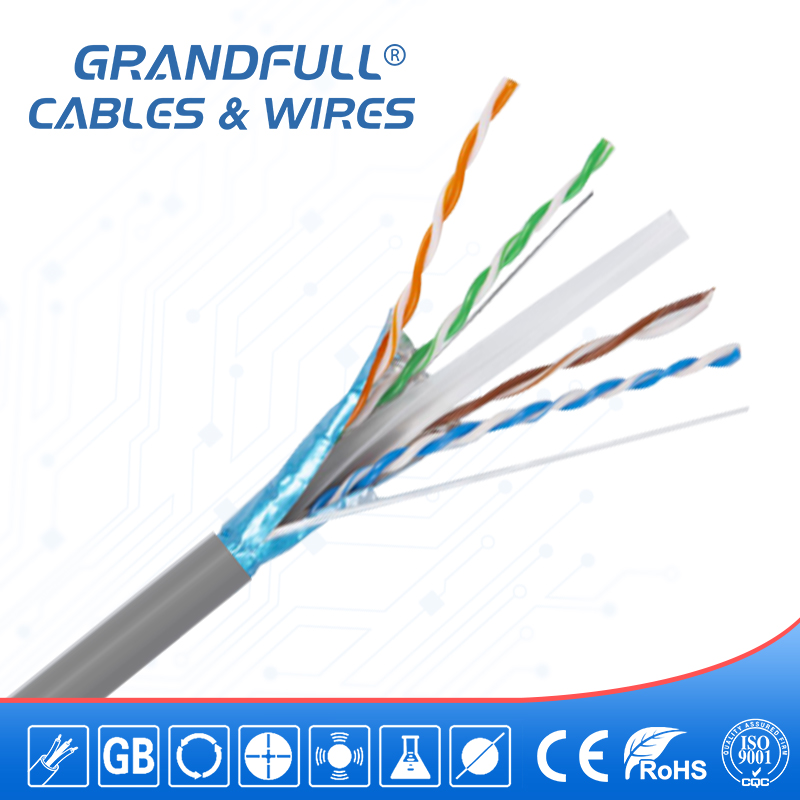

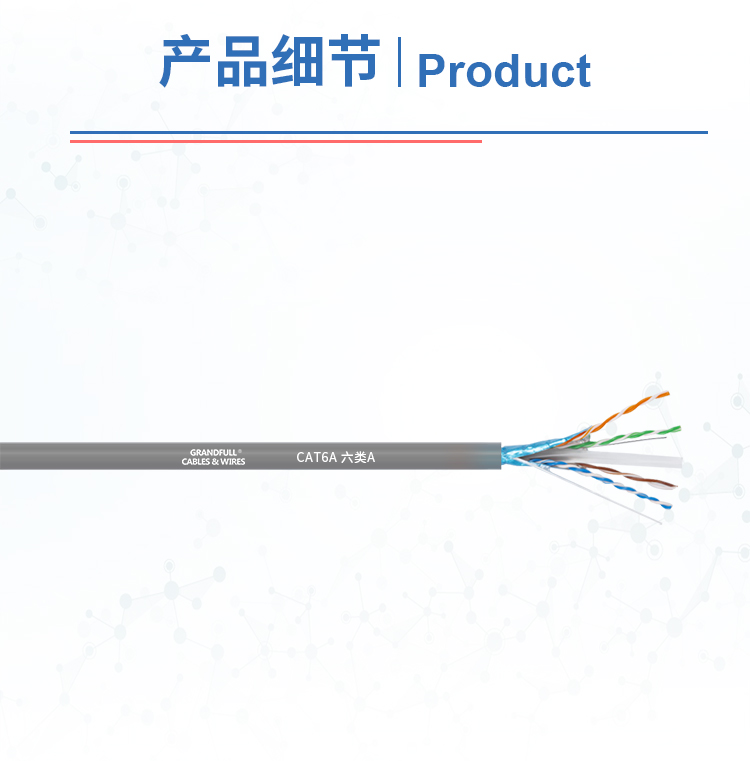

Cat6A Ethernet Cable
This Cat6A Ethernet cable is designed for high-performance networking applications. It supports data transmission speeds up to 10 Gigabit Ethernet, making it suitable for data centers and enterprise networks.
Technical Specifications
Overview
High-Performance Cat6A Networking Solution
This Category 6A Ethernet cable is engineered for high-speed data transmission in demanding environments like 5G networks, data centers, and smart buildings. It supports bandwidths up to 500MHz and is designed for indoor installations where reliability and low signal loss are critical. With multiple shielding and conductor options, it provides a versatile solution for integrated wiring systems, including voice, image, and video transmission.
Technical Performance
Key Performance Metrics
500 MHz
Frequency Bandwidth
10 Gbps
Data Rate (Up to)
305 m
Standard Length
Construction
Conductor Specifications
| Feature | Specification |
|---|---|
| Gauge | 23AWG |
| Conductor Diameter | 4*2*0.56mm (0.57mm/0.58mm variants available) |
| Material Options | Oxygen-free Copper (BC) or Copper-clad Aluminum (CCA) |
| Insulation Material | PE / HDPE |
| Number of Pairs | 4 Pairs (8 Conductors) |
Physical Properties
Jacket Material
- PVC
- LSZH PVC (Low Smoke Zero Halogen)
- Shielding Types
- UTP (Unshielded)FTP (Single Shielded)SFTP (Double Shielded)
- Jacket Thickness
- 0.5 mm
Environmental & Electrical
- Operating Temperature
- -20°C to +70°C
- Max Working Capacitance
- 5.4nF/100m
Compliance & Quality
Certifications
CERoHSISO 9001ISO 14001ISO 18001Fluke Test Passed
Quality Features
- Wear resistance
- Resistance to pressure
- Small transmission loss
- Long transmission distance
Applications
Typical Applications
- 5G Network Infrastructure
- Smart Home & Intelligent Buildings
- Data Center Integrated Wiring
- CCTV & Security Monitoring
- Voice and Video Communication
Packaging & Service

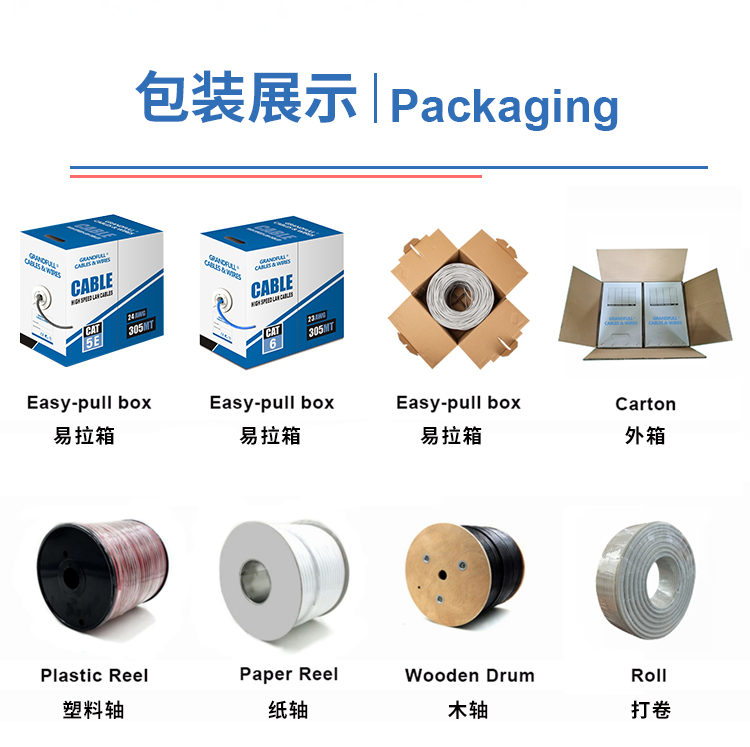

- Available Packaging

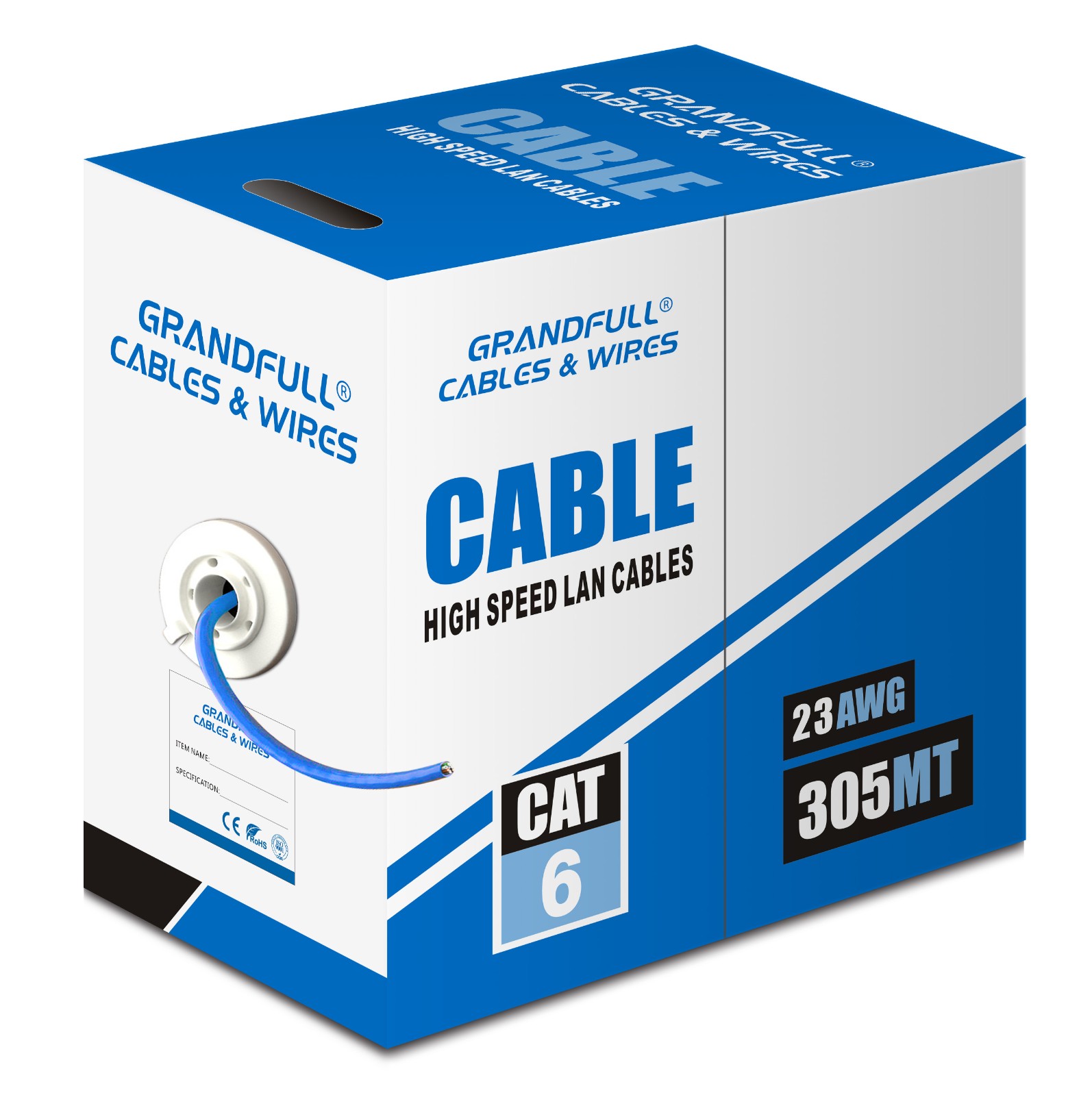

- Easy-pull BoxPlastic ReelPaper ReelWooden DrumRollCarton
- Customization Services
- Yes
