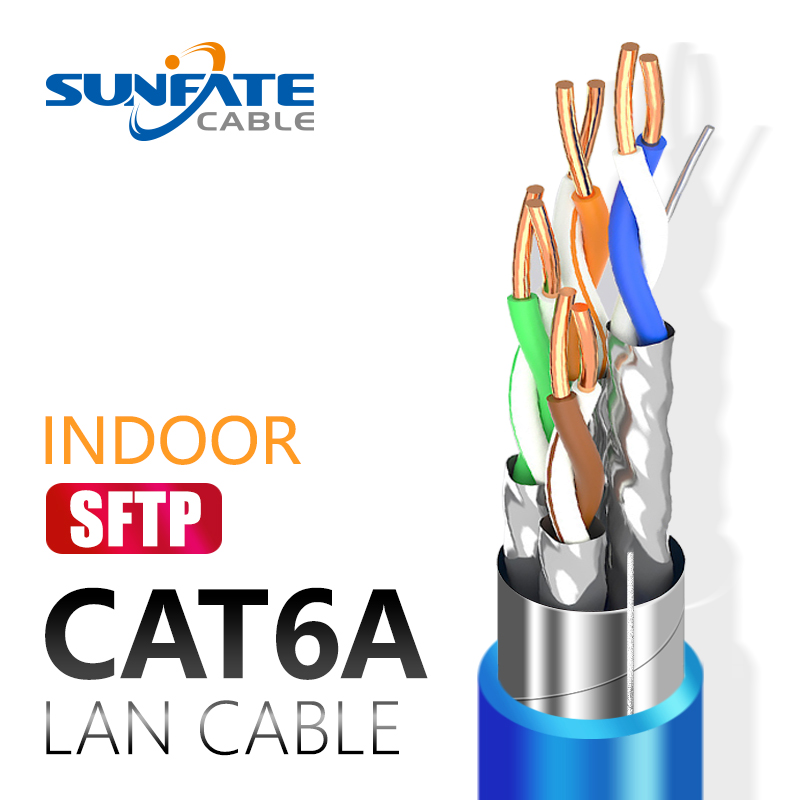

CAT6A Ethernet Cable
This CAT6A Ethernet cable is designed for high-performance networking applications. Its SFTP (Shielded Foiled Twisted Pair) construction provides enhanced protection against electromagnetic interference (EMI) and radio frequency interference (RFI).
Technical Specifications
Overview
High-Performance CAT6A Networking
This CAT6A Ethernet cable is engineered for demanding indoor networking environments, providing robust data transmission capabilities. Designed to support high-bandwidth applications including 10G Base-T, it features advanced shielding to minimize interference. The construction includes high-quality insulation and a durable PVC jacket, ensuring reliable performance and longevity in professional installations.
Construction
- Conductor Material
- BCCCA
- Shielding
- Aluminum foil with pair shield and drain wire
- Insulation
- Skin-foam-skin insulation
- Jacket Material
- PVC
- Outer Diameter
- 6.5 mm
Applications
Network Standards
- 10 Base-T
- 100 Base-T
- 1000 Base-T
- 10G Base-T
- 155M/622M/1.2G ATM
- VoIP
- ISDN
- Token Ring
Electrical Characteristics
Performance Parameters
| Metric | Unit |
|---|---|
| Frequency | MHz |
| Impedance | ohm |
| RL | ≥dB |
| Attenuation | <dB/100m |
| NEXT | dB/100m |
| ELFEXT | dB/100m |
| PS NEXT | dB/100m |
| PS ELFEXT | dB/100m |
| Delay Skew | ns/100m |
