Technical Specifications
Product Overview
High-Performance Networking Solution

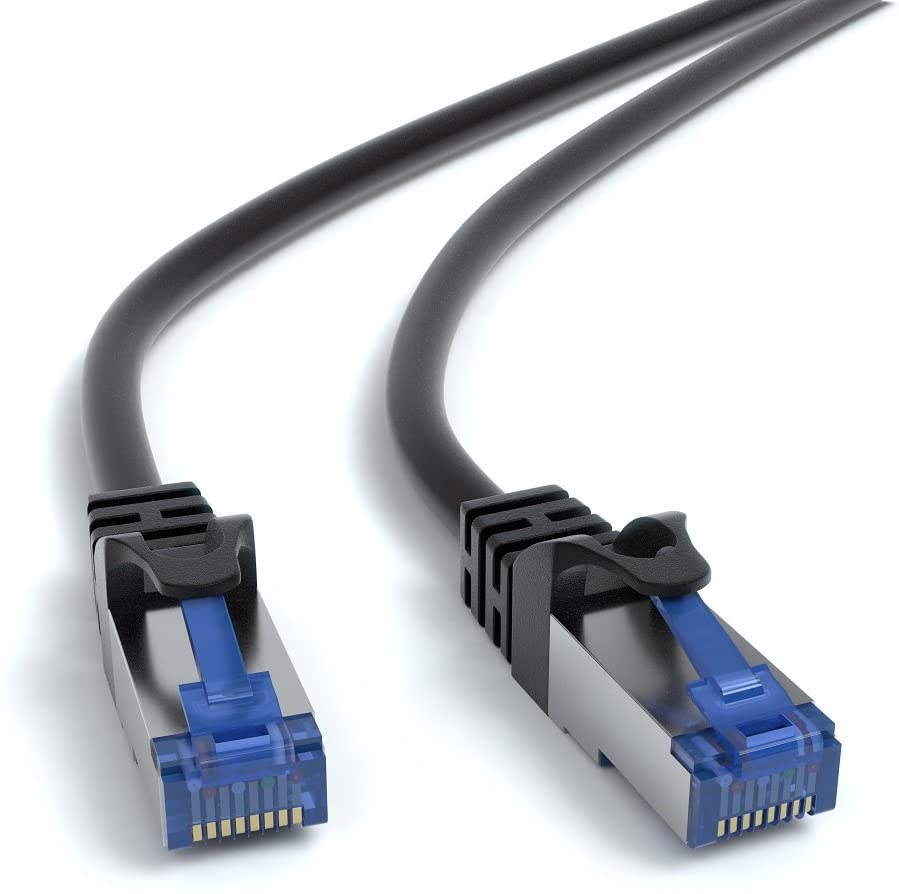

This Cat6 Ethernet cable is engineered for robust data transmission in both home and professional office environments. Featuring 100% bare copper conductors, it supports high bandwidths up to 550 MHz, ensuring reliable performance for Gigabit and 10-Gigabit Ethernet applications. The snagless design and gold-plated contacts provide long-term durability and secure connectivity for critical network components.
Technical Specifications
- Cable Type
- CAT6 4-Pair UTP
- Conductor Material
- 100% Bare Copper
- Conductor Gauge
- 24 AWG
- Connector Type
- RJ45
- Contact Plating
- Gold Plated
- Cable Structure
- Stranded
Performance Metrics
Max Bandwidth
550 MHz
Frequency
- Compliance & Standards
- TIA/EIA 568-C.2RoHSUL Code 444PoE CompliantVoIP Compliant
Physical Dimensions
Connector Dimensions
| Dimension | Value |
|---|---|
| Width | 11.6 mm |
| Height | 14.3 mm |
| Length | 40 mm |
- Outside Diameter
- 5.8 mm
Compatibility
Supported Network Devices
- PCs & Servers
- Routers & Switch Boxes
- Network Printers
- NAS Devices
- VoIP Phones
- PoE Devices
- Media Players
