Cat5e Ethernet Cable
This Cat5e LAN cable is designed for indoor installations. It features optional shielding, conductor material, and diameter.
Technical Specifications
Overview
High-Performance Cat5e Networking Solution
This Cat5e Ethernet cable is engineered for reliable data transmission in professional networking environments, supporting bandwidths up to 100MHz. Designed specifically for indoor installations, it features high-quality twisted pair conductors that minimize interference and ensure signal integrity for 5G networks and intelligent building systems. The cable is rigorously tested to meet international standards, including Fluke Test compliance and CE/RoHS certifications, ensuring long-term durability and low transmission loss.
Technical Specifications
Performance Metrics
100 MHz
Frequency
305 m
Standard Length
24 AWG
Conductor Gauge

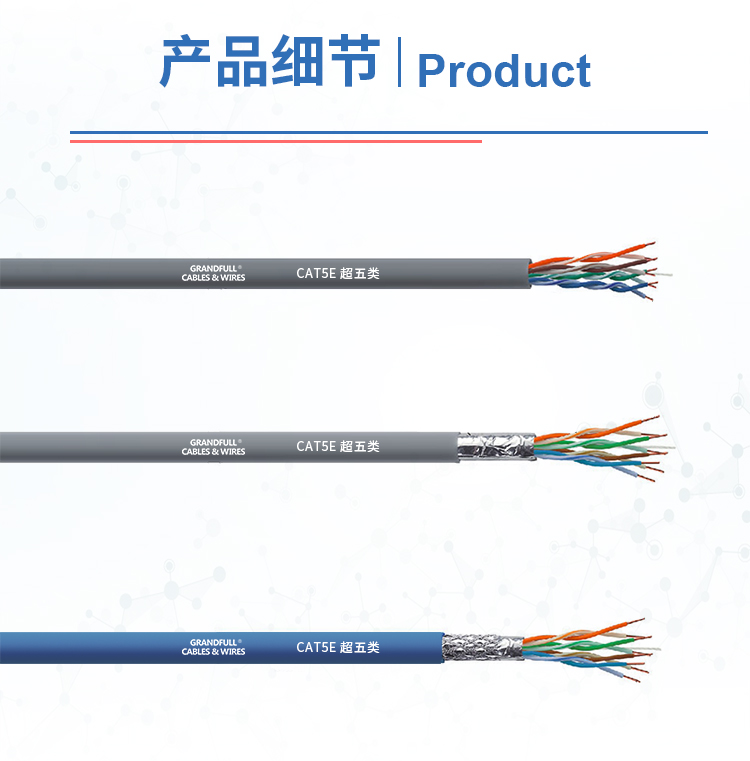

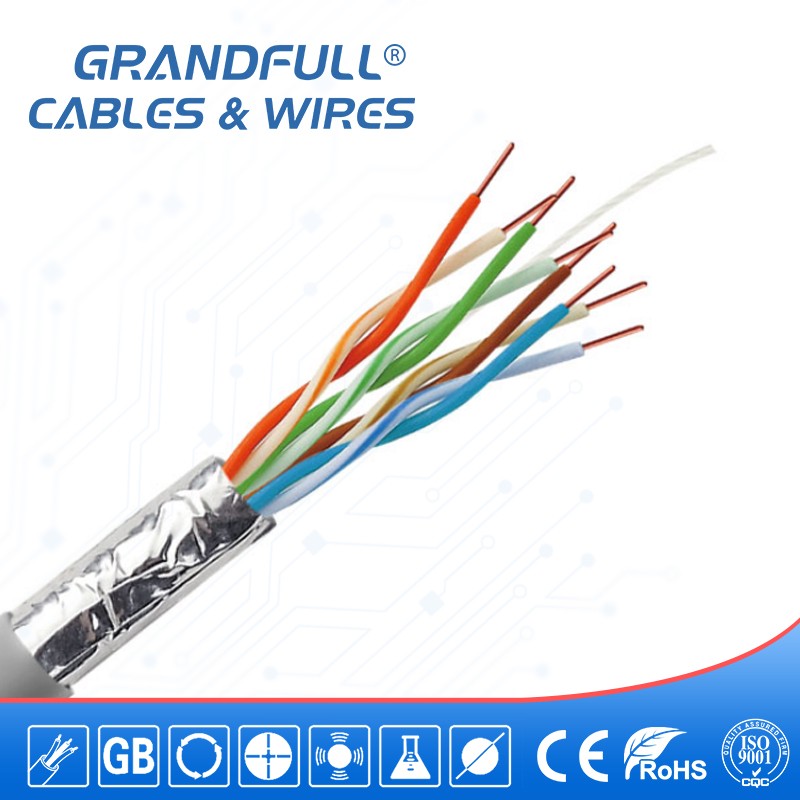

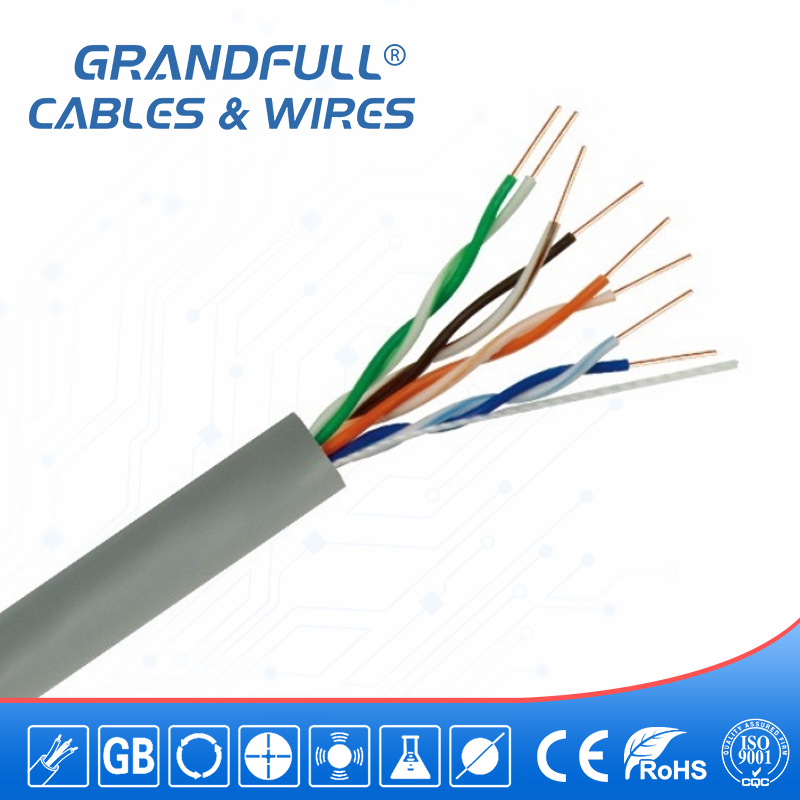

Cable Construction
| Component | Specification |
|---|---|
| Conductor Material | BC (Bare Copper) / CCA (Copper Clad Aluminum) |
| Conductor Diameter | 0.5mm (Options: 0.35mm, 0.4mm, 0.45mm, 0.48mm) |
| Insulation Material | PE / HDPE |
| Shielding Type | UTP / FTP / SFTP (Optional) |
| Jacket Material | PVC / LSZH PVC |
| Jacket Thickness | ≥0.5mm |
Electrical & Physical Properties
- Working Capacitance (Max): 5.4nF/100m
- Tensile Elongation of Conductor: >27%
- Operating Temperature: -20°C to +70°C
- Transmission: Long distance with small loss
Compliance & Quality
- Certifications
- CERoHSISO 9001ISO 14001ISO 18001Fluke TestedCQCGB Standard
Application & Services
Primary Applications
- 5G Network Infrastructure
- Intelligent Building & Home Wiring
- Data Center Connectivity
- Voice and Image Transmission
- Integrated Wiring Systems
Business Services
OEM Service AvailableFree SamplesCustom Jacket PrintingCustom Jacket Color
Packaging
- Available Packaging
- Easy-pull BoxPlastic ReelPaper ReelWooden DrumCartonRoll
