Cat5e Cable with 2C Power Conductors
This Cat5e cable integrates 2C power conductors for combined data and power transmission. It is designed for long transmission distances with minimal signal loss and features robust shielding.
Technical Specifications
Product Overview
Integrated Data and Power Solution
This high-performance Cat5e cable is integrated with 2C power conductors, specifically designed to simplify installations for networking and surveillance applications like IP cameras. It combines reliable data transmission with efficient power delivery in a single cable, reducing clutter and installation time. Engineered for indoor use, it features wear-resistant materials and low transmission loss to ensure long-distance signal integrity.
Technical Specifications
Conductor Specifications
| Component | Size Options | Material |
|---|---|---|
| Cat5e Network | 4*2*0.5mm (Optional 0.4mm/0.45mm) | Oxygen-free Copper / BC |
| Power Cable | 0.5mm² or 0.75mm² | Oxygen-free Copper / BC |
Electrical Performance
100 Ohm
Impedance
6.58 Ω/100m
Max DC Resistance
5,000 MΩ·km
Insulation Resistance
Construction

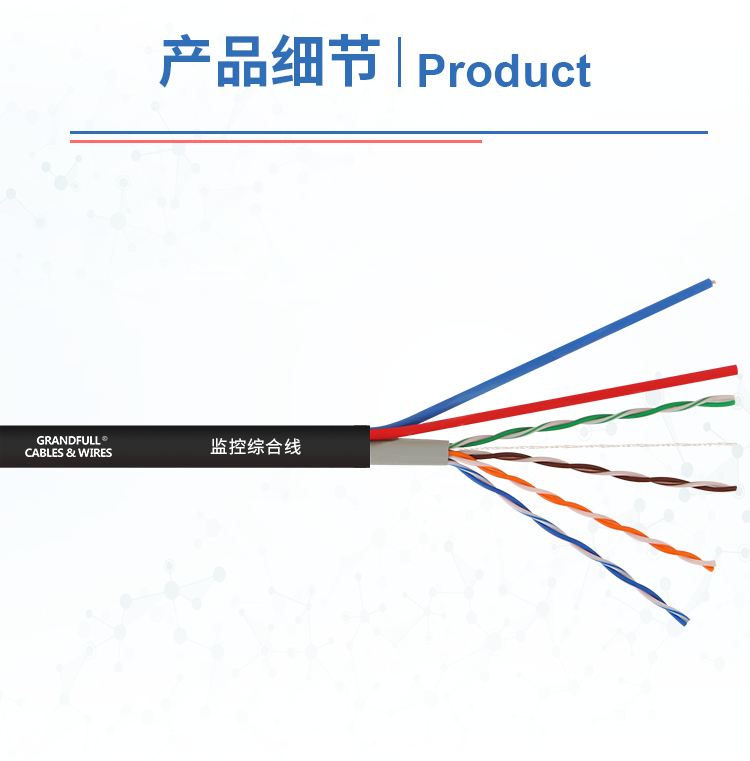

Cable Construction
- 4 Twisted Pairs
- PE (Polyethylene) Insulation
- PVC (Polyvinyl Chloride) Outer Jacket
- Optional Rip Cord
- Optional Center Splitter
- Shielding (Optional)
Compliance & Quality
- Certifications & Standards
- CERoHSISO 9001ISO 14001ISO 18001Fluke Test Passed
Applications
Recommended Applications
- 5G Network Systems
- Smart Building Integrated Wiring
- IP Camera & Security Surveillance
- Smart Home Systems
- Voice and Image Data Transmission
Logistics & Customization
Customization Services
OEM ServiceCustom Jacket ColorCustom PrintingFree Samples Available

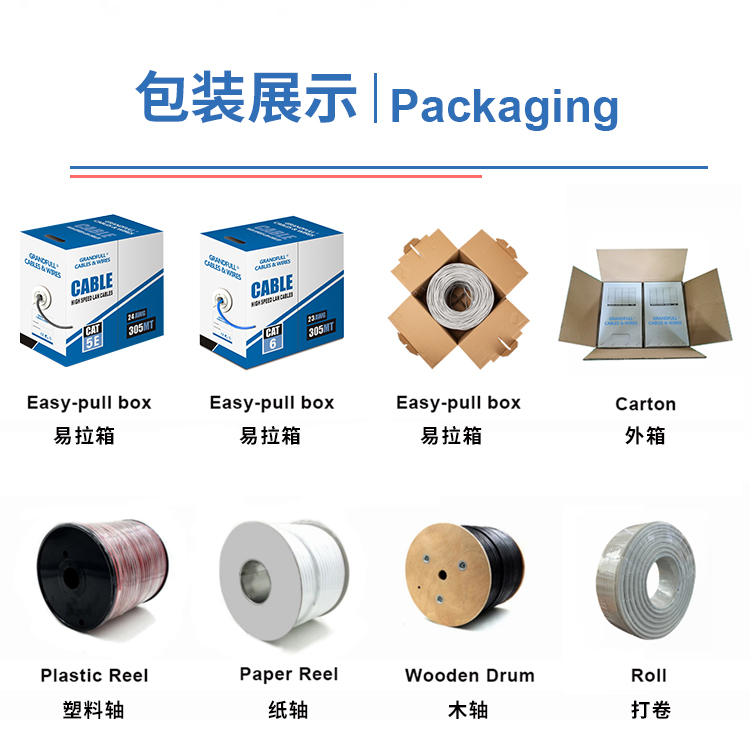

- Available Packaging
- Easy-pull BoxPlastic ReelPaper ReelWooden DrumCartonRoll
