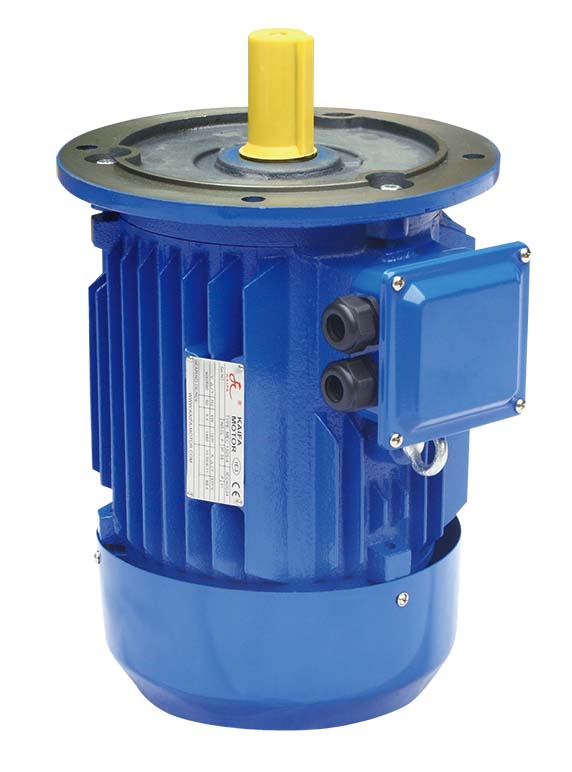

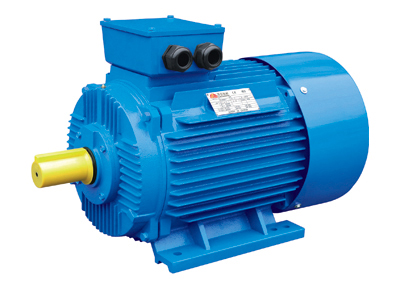

Cast Iron Three-Phase Induction Motor
This high-efficiency three-phase induction motor features a durable cast iron frame designed for continuous operation. Optimized ventilation ensures effective thermal management, while its versatile mounting configuration suits various industrial applications, including pumps, fans, compressors, and machine tools.
Technical Specifications
Product Overview
Industrial Induction Motor
The Y2 series three-phase induction motor is designed according to national uniform standards, ensuring full compliance with IEC34-1 and JB/T 8680.1-1998 requirements. Engineered with a robust cast iron frame, these motors offer sophisticated construction, low vibration, and quiet operation for demanding environments. They are suitable for continuous S1 duty and various industrial applications, including pumps, fans, and machine tools.
Technical Specifications
Protection Class
Insulation Class
- Operating Duty
- S1 (Continuous)
- Cooling Method
- ICO141
Operating Conditions
Ambient Temperature Range
- Maximum Altitude
- 1000 m
Electrical Data
Connection Type
| Power Output | Connection |
|---|---|
| Up to 3KW | Star |
| 4KW and above | Delta |
- Voltage Range
- 220V - 760V
Compliance
- Certified Standards
- IEC34-1JB/T 8680.1-1998CE
