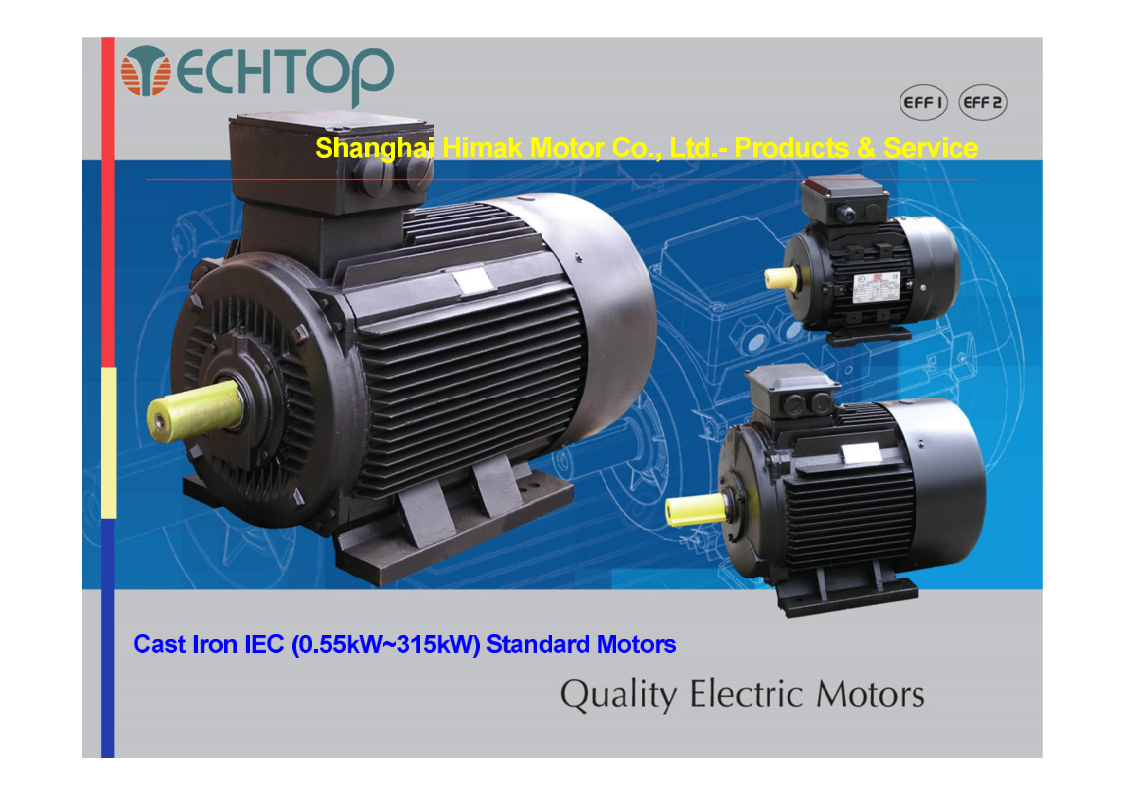

Cast Iron AC Induction Motor
This AC induction motor is made with a cast iron frame. It is available in IE1, IE2, IE3, and IE4 efficiency classes.
Technical Specifications
Product Overview
TC Series Induction Motors
The TC series induction motors feature a robust cast iron construction designed for versatility and easy modification in a wide variety of industrial applications. These motors are engineered with cold-rolled silicone steel to ensure even stator magnetization, effectively reducing winding temperature rise. Available in multiple efficiency standards including IE2, IE3, IE4, and NEMA premium ratings, this series provides a compact solution that meets or exceeds current market standards.
Technical Features
Mechanical Configuration Options
- Integrated or Removable feet
- Top terminal box location
- Left terminal box location
- Right terminal box location
- Efficiency Standards
- IE2IE3IE4NEMA EPACTMEPS
Performance Metrics
Power Range
0.55 kW
Minimum Power
315 kW
Maximum Power
