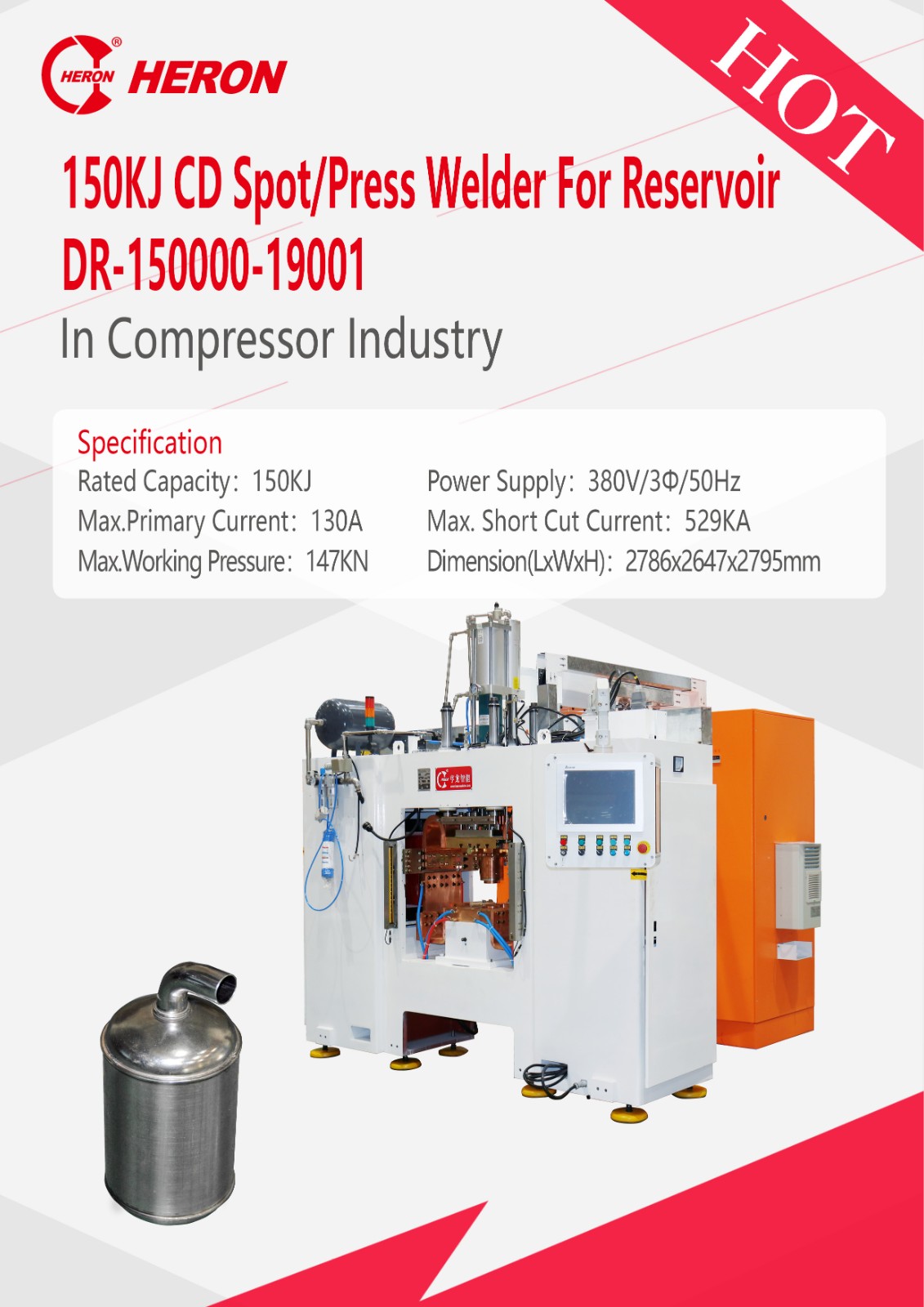

Capacitor Discharge Spot/Press Welder
The Capacitor Discharge Spot/Press Welder delivers precise, high-energy spot welds using capacitor discharge technology. It is designed for welding reservoirs and offers a user-friendly interface with a touchscreen control panel.
Technical Specifications
Product Overview
High-Efficiency Capacitor Discharge Welding
This capacitor discharge spot and press welder is engineered specifically for demanding reservoir welding applications within the compressor industry. Utilizing advanced capacitor discharge technology, it delivers high-energy, precise spot welds that ensure consistent and strong joints. The system is built for heavy-duty, high-volume production environments, featuring a user-friendly touchscreen interface for precise parameter control and monitoring.
Performance Metrics
Rated Capacity
150 KJ
Rated Capacity
Welding Capabilities
- Max Primary Current: 130A
- Max Short Circuit Current: 529KA
- Max Working Pressure: 147KN
Technical Specifications
- Power Supply
- 380V / 3Φ / 50Hz
- Dimensions (LxWxH)
- 2786 x 2647 x 2795 mm
Features
Key Features
Capacitor Discharge TechnologyTouchscreen ControlHeavy-Duty ConstructionReservoir Welding OptimizedAdvanced Safety Systems
