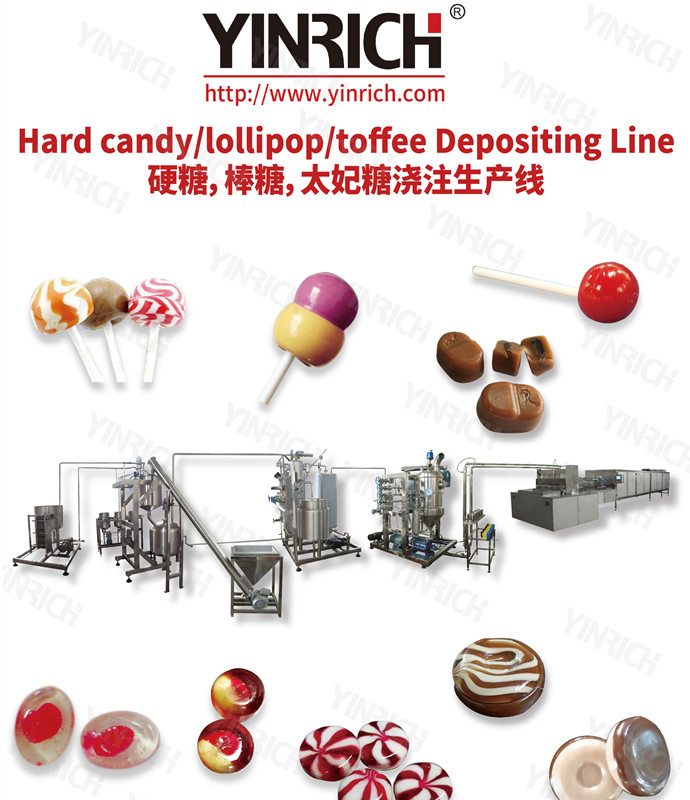

Candy Depositing Line
The candy depositing line is a comprehensive solution for manufacturing hard candies, lollipops, and toffees. It integrates ingredient preparation, mixing, cooking, depositing, cooling, and packaging.
Technical Specifications
Overview
High-Capacity Confectionery Production
This advanced servo-driven depositing line is engineered for the high-volume production of hard candies, lollipops, and toffees. Featuring a compact underband servo-drive design, the system minimizes mechanical inertia to achieve superior running speeds and output capacity. The line offers precise control over depositing processes, ensuring consistent product dimensions, weight, and quality while eliminating the need for hydraulic systems to prevent contamination.
Performance Metrics
Production Capacity
500 kgs/h
Minimum Output
1,000 kgs/h
Maximum Output
Capabilities
Depositing Modes
- Two/three-color striped depositing
- Two-color double layers depositing
- Central filling
- Clear hard candies
- Compatible Products
- Hard CandyLollipopToffee
Technical Features
Drive System
Servo-drivenHydraulic-freeThree-axis control
Automation & Control
- Full PLC control
- LED touch panel interface
- Automatic injection of colors, flavors, and acids
- In-line liquid/milk dosing
- Recipe management
- Alarm handling
Maintenance & Design
Design Advantages
| Feature | Benefit |
|---|---|
| Underband Drive | Reduces inertia and weight for higher speed |
| Hydraulic-free | Eliminates oil leakage risk |
| Open Hopper Area | Easy syrup feeding and access |
| Modular Components | Easy removal of hoppers/manifolds for cleaning |
