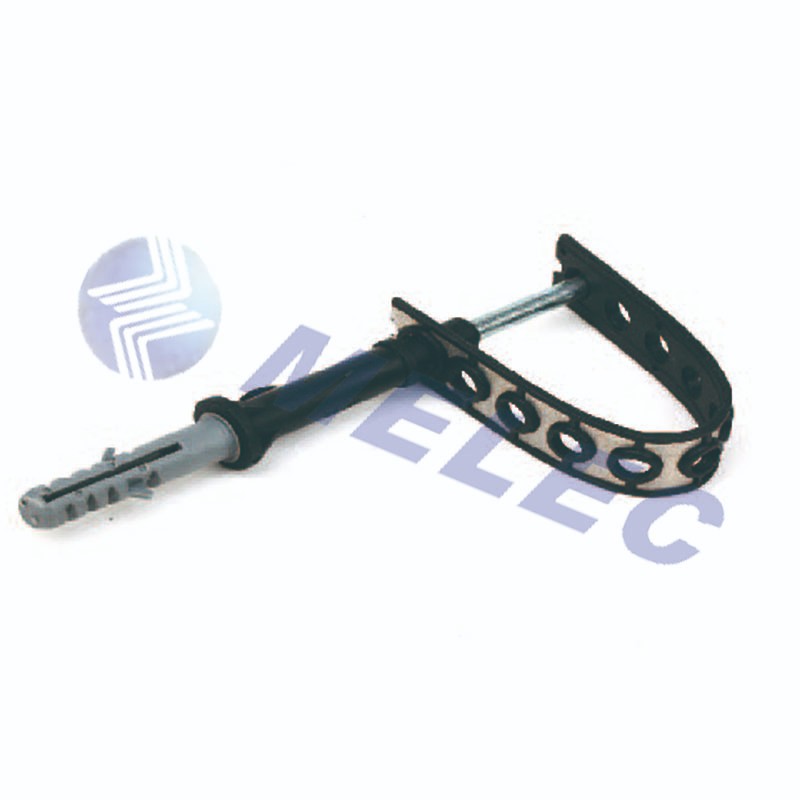

Cable Fixing Nails
These fixing nails are designed for anchoring low voltage aerial cables. The FNA model is suitable for wall applications, while the FNB model is designed for wooden surfaces.
Technical Specifications
Product Overview
Professional Cable Anchoring Solutions
The FNA and FNB fixing nails provide a robust and reliable method for anchoring low voltage aerial cables. FNA models are specifically engineered for secure installation on wall surfaces, while FNB models are optimized for wooden substrates. Constructed with weather-resistant, anti-UV materials and featuring galvanized carbon steel nails, these fasteners ensure durability and long-term performance in outdoor electrical installations.
Technical Specifications
Surface Compatibility
WallWood
- Standard
- NF C 33-040
- Materials
- Anti-UV PlasticWeather ResistantGalvanized Medium Carbon Steel
Model Variants
Model Specifications
| Model | Cable Diameter (mm) | Nail Length (mm) | Failure Load (N) | Pack Size (pcs) |
|---|---|---|---|---|
| FNA1-15-47 | 15 | 47 | 112 | 200 |
| FNA6-15-47 | 15 | 47 | 158 | 200 |
| FNA6-15-57 | 15 | 57 | 158 | 200 |
| FNB5-12-47 | 12 | 47 | 114 | 100 |
