Technical Specifications
Overview

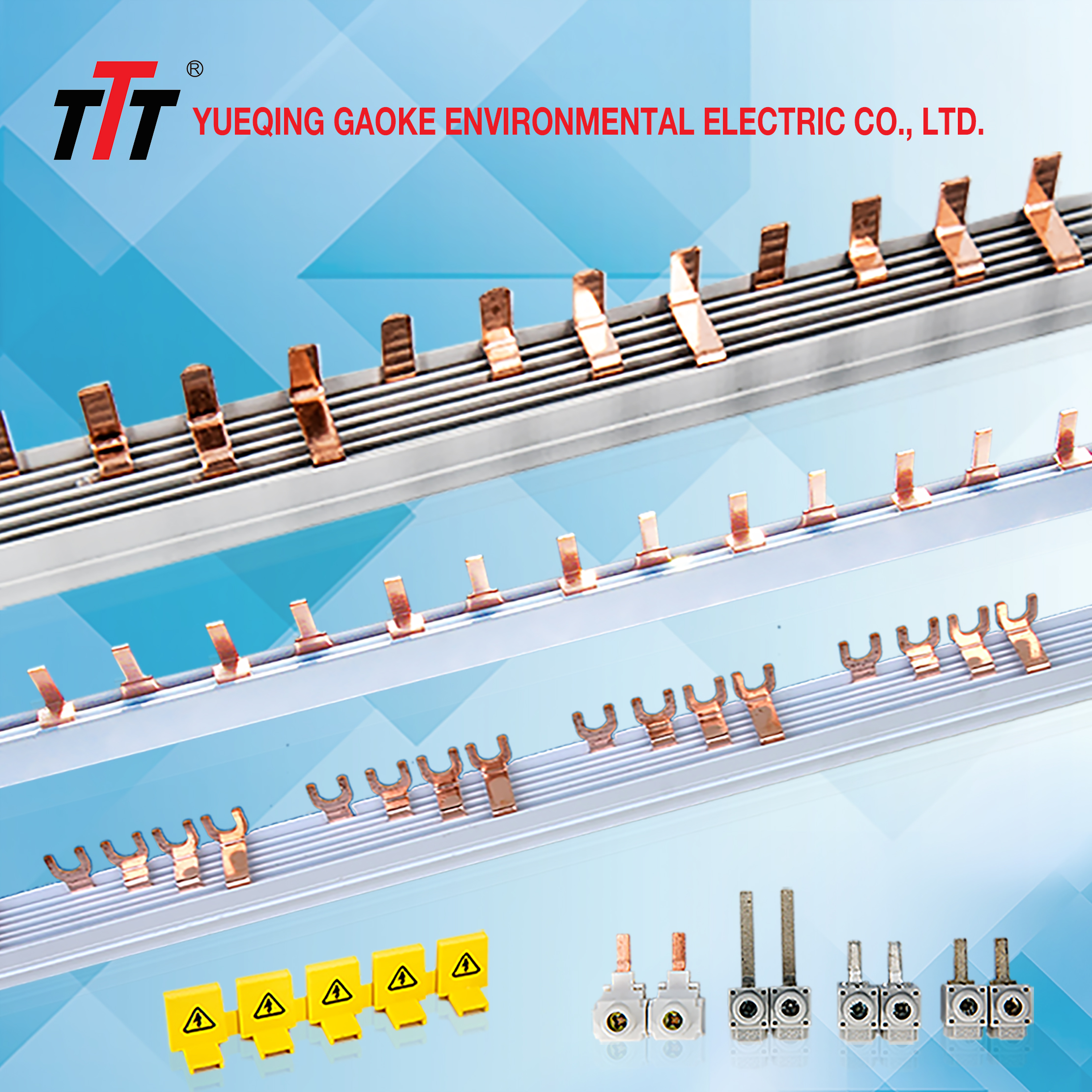

Modern Electrical Connection System
This busbar system provides an advanced, efficient alternative to traditional miniature circuit breaker (MCB) connection methods. Engineered for superior performance, it offers a wider contact area, significantly lower power consumption, and reduced temperature rise compared to outdated wiring practices. Constructed from high-quality pure copper, these busbars ensure excellent electrical conductivity, low contact resistance, and enhanced safety for various building electrical applications.
Technical Specifications
- Busbar Material
- E-CU-F25 (Pure Copper)
- Insulation Material
- PVCPC/ABS
- Nominal Voltage
- 415 V
- Max Operating Voltage
- 500 V
- Surge Voltage
- 4 kV
- Short-circuit Strength
- 50kA/250A gl
- Dielectric Strength
- 36 kV/mm
Performance Metrics
Key Performance Metrics
45 mm²
Max Cross-Section
235 A
Max Current (Middle Feed)
150 A
Max Current (End Feed)
Configuration Table
Busbar Sizing Specifications
| Cross Section (mm²) | Thickness (mm) | Max Current End Feed (A) | Max Current Middle Feed (A) |
|---|---|---|---|
| 6 | 1.2 | 40 | 63 |
| 10 | 1.5 | 63 | 100 |
| 13 | 1.5 | 70 | 110 |
| 16 | 1.5 | 80 | 130 |
| 22 | 2 | 100 | 180 |
| 33 | 3 | 130 | 220 |
| 45 | 3 | 150 | 235 |
Applications
Common Applications
- Building electrical distribution
- Low-voltage power cabinets
- Distribution boxes
- Lighting boxes
- Multi-channel distribution equipment
