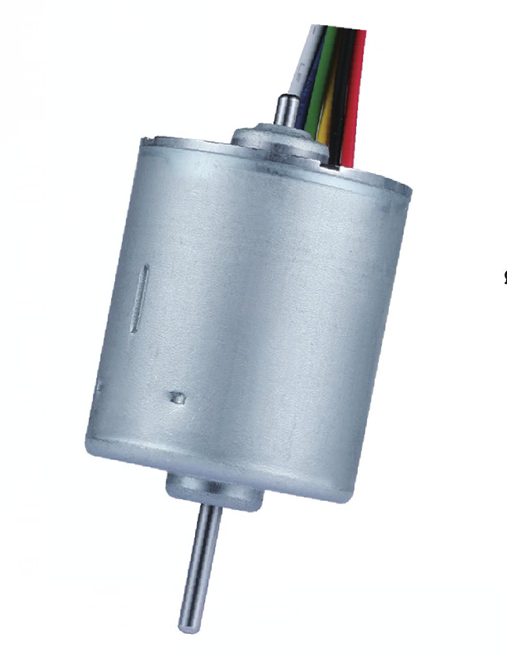

Brushless DC Motor for Vacuum Machines
This brushless DC motor is designed for vacuum machine applications. It features a durable metal casing for robustness and efficient heat dissipation.
Technical Specifications
Product Overview
High-Performance BLDC Motor
This brushless DC motor is expertly designed for high-efficiency vacuum cleaner applications. Featuring a durable metal casing for superior heat dissipation, it offers an extended lifespan and significantly reduced operational noise compared to traditional brushed motors. Its compact design and precision-engineered components make it an ideal choice for professional-grade vacuum machine assemblies.

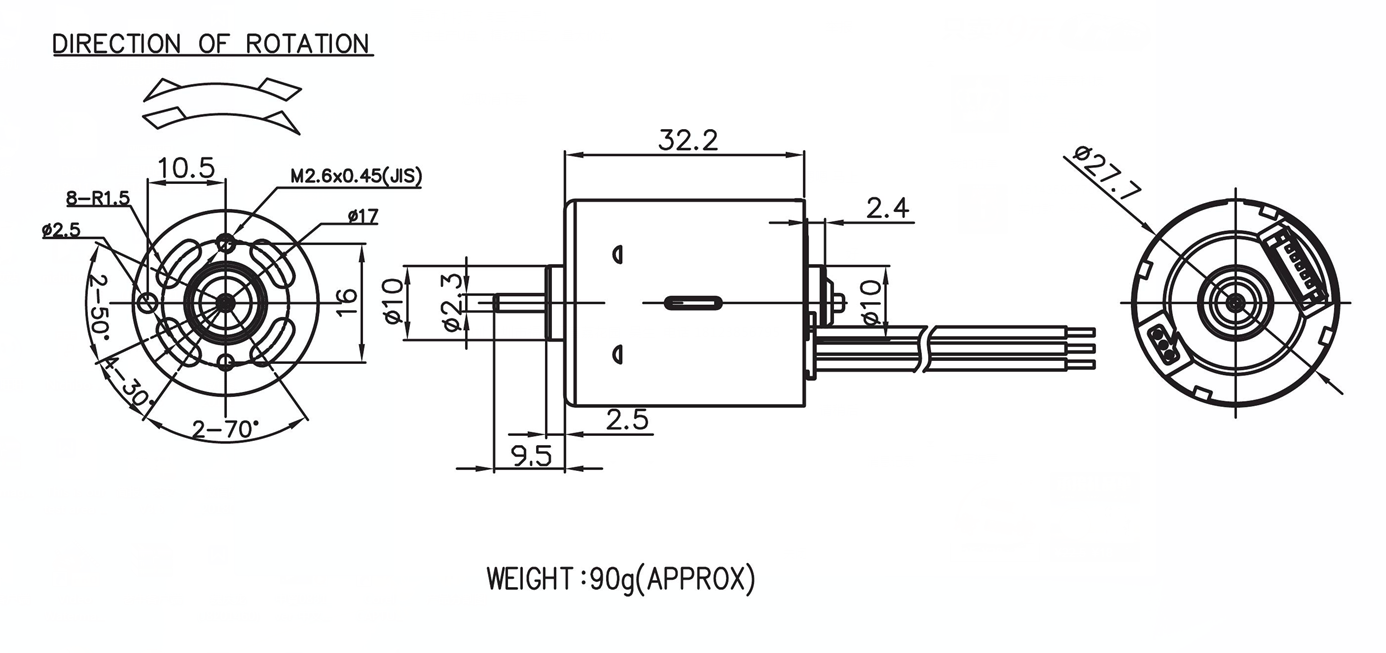

Technical Dimensions
Physical Dimensions
| Parameter | Value |
|---|---|
| Motor Diameter | 27.7mm |
| Overall Length | 32.2mm |
| Shaft Diameter | 2.3mm |
| Approximate Weight | 90g |
| Mounting Holes | M2.6x0.45 (JIS) |
Mounting Details
- 8 mounting holes with radius of 1.5mm
- Central bore diameter of 10mm
- Direction of rotation indicated
Electrical Performance
Operating Characteristics
12 V
Operating Voltage
90 g
Approximate Weight
- Available Motor Models
- BLDC2832B0W0BLDC2832B1W2
