Brushless DC Motor for Vacuum Machines
This brushless DC motor is designed for vacuum machine applications. Its features include a compact size, long lifespan, and efficient energy consumption.
Technical Specifications
Product Overview
High-Performance Brushless DC Motor
This brushless DC motor is specifically engineered for vacuum machine applications, offering a compact design with exceptional energy efficiency. Its durable construction ensures a long operational lifespan, making it an ideal component for various household electrical appliances and vacuum cleaners. The unit features standard color-coded wiring to simplify integration and installation for professional manufacturers.

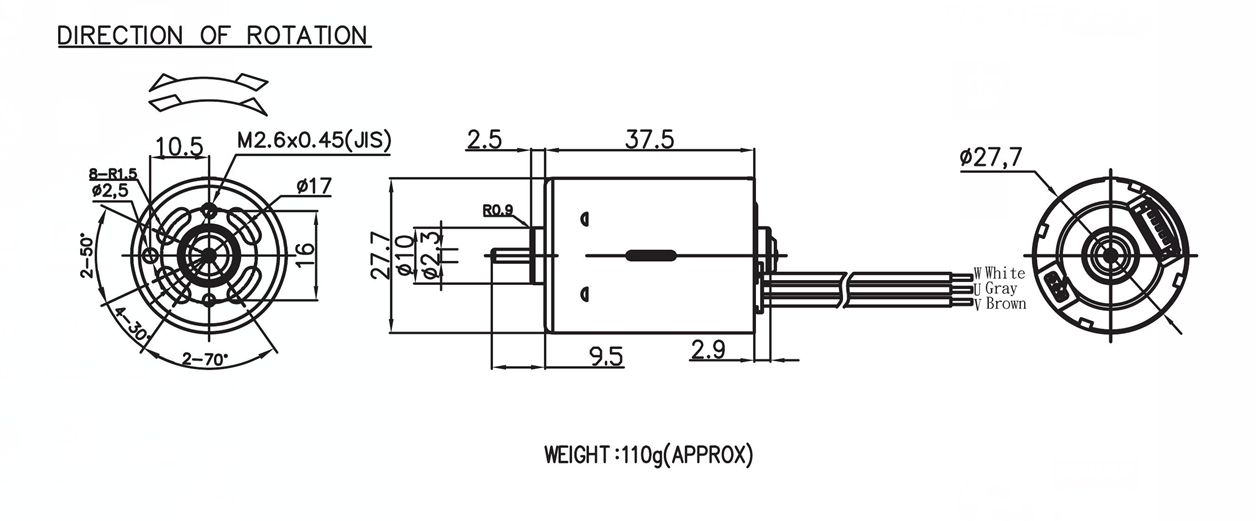

Physical Dimensions
Physical Specifications
27.7 mm
Diameter
37.5 mm
Length
110 g
Weight
Mounting & Hardware
- Mounting holes: M2.6x0.45 (JIS)
- Shaft radius: 0.9 mm
Electrical Specifications
- Wiring Color Codes
- WhiteGrayBrown
Performance Data
Performance Curves Data
| Variant | Voltage |
|---|---|
| BBLDC2838B0W0 | 12 |
| BLDC2838B1W0 | 12 |
- Rated Operating Voltage
- 12 V
