Technical Specifications
Overview
High-Performance Brushless DC Motors
These advanced brushless DC permanent magnet motors are engineered for high-volume applications requiring reliability and efficiency. Featuring a low-noise design and improved structural integrity, they offer a long operational life of 5,000 hours. Ideal for vacuum cleaners, disinfectant sprayers, and ULV fogging machines, these motors are manufactured on automated lines to ensure consistent quality and performance.
Applications
- Suitable Applications
- Vacuum cleanerWireless lithium vacuum cleanerHand dry machineDisinfectant sprayerULV fogging machine
Performance Specifications
Technical Performance Metrics

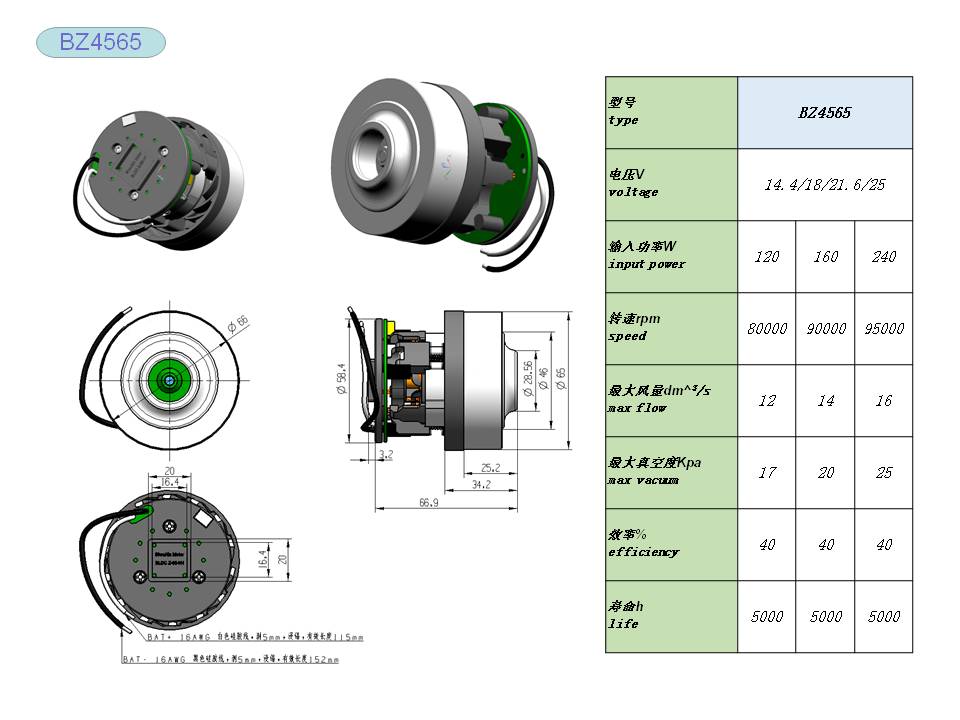

| Model | Voltage (V) | Power (W) | Speed (rpm) | Life (h) |
|---|---|---|---|---|
| BZ4565 | 14.4 / 18 / 21.6 / 25 | 120 / 160 / 240 | 80000 / 90000 / 95000 | 5,000 |
| BJ3453 | 7.2 / 10.8 / 14.4 / 18 | 80 / 100 / 120 | 70000 / 75000 / 80000 | 5,000 |
Efficiency
40 %
BZ4565 Efficiency
35 %
BJ3453 Efficiency
Quality Assurance
Production Standard
Automated production lineHigh-quality control
- Warranty
- One year quality assurance
