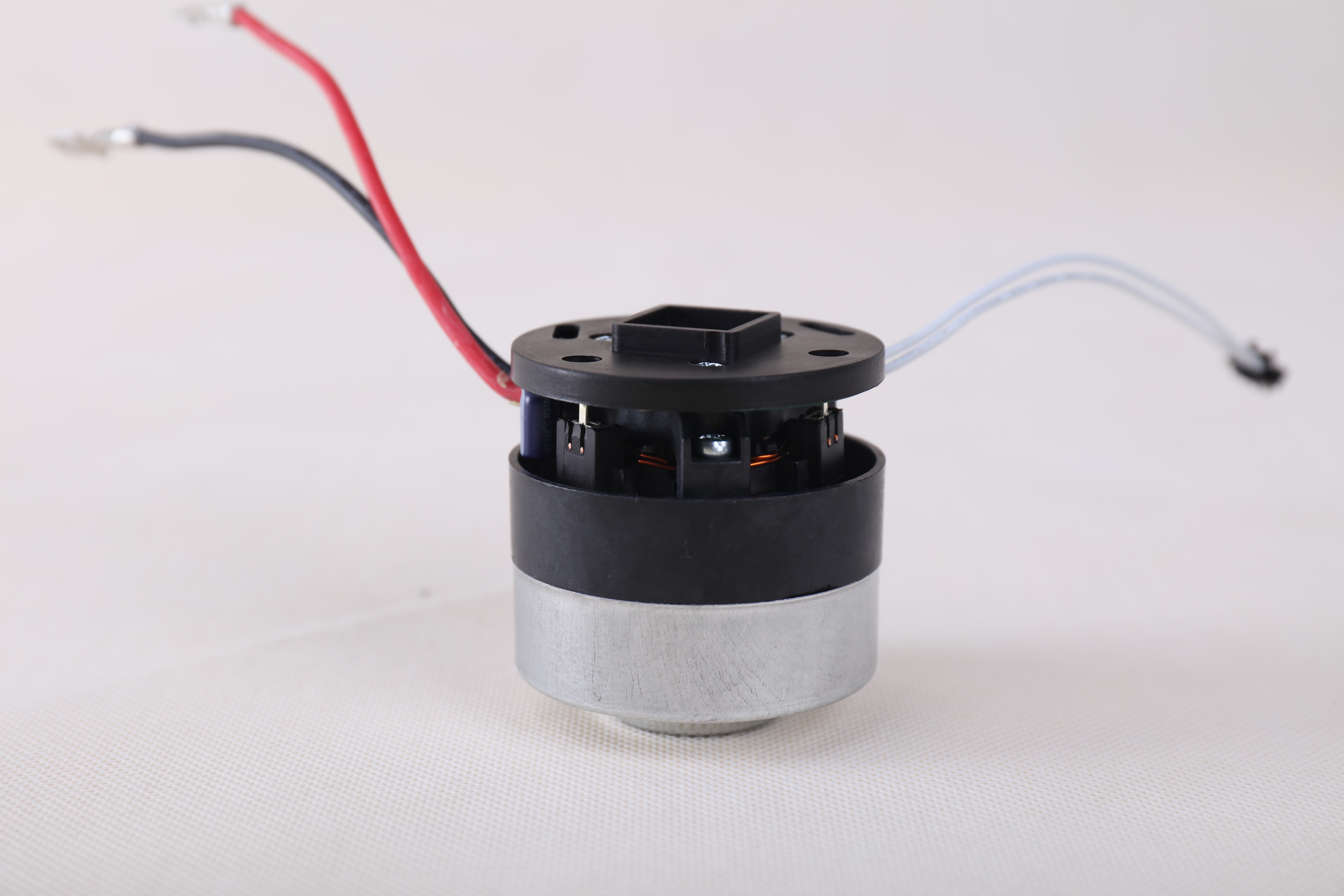

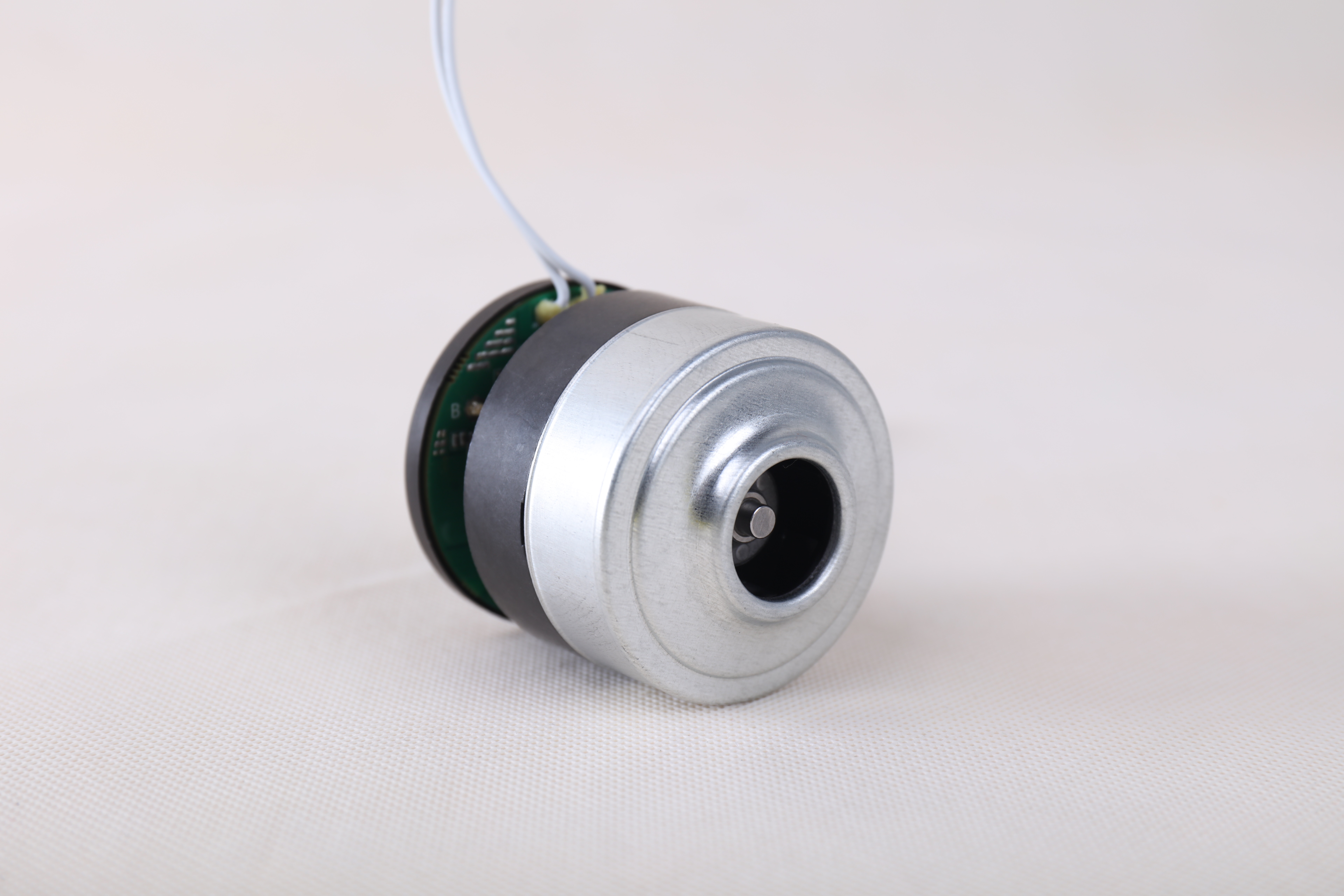

Brushless DC Motor for Vacuum Cleaners
Brushless DC motor designed for vacuum cleaner applications. It features high efficiency and long life.
Technical Specifications
Overview
High-Performance BLDC Motor
This brushless DC motor is engineered specifically for vacuum cleaner applications, offering a compact and efficient solution for modern cleaning devices. With a wide operational voltage range and high rotational speeds, it delivers consistent suction power and reliability. The integrated design ensures easy integration into cordless and robotic vacuum systems, providing an optimal balance of performance and energy efficiency.
Performance Metrics
Input Power
100 W
Min Power
380 W
Max Power
Suction Performance
11 Kpa
Min Vacuum
28 Kpa
Max Vacuum
Airflow & Efficiency
| Metric | Range |
|---|---|
| Max Airflow | 13-24 L/S |
| Max Suction Efficiency | 48-52 % |
| Speed | 60,000-110,000 RPM |
Technical Specifications
- Operating Voltage
- 14.4V - 32.4V
- Model Number
- CG-BLDC55
Dimensions
Physical Dimensions
- Main Diameter: 55mm (±0.5)
- Secondary Diameter: 20.2mm (±0.5)
- Height: 60mm (±1)
- Mounting/Base Height: 49.5mm (±1)
- Section Height: 32.5mm (±0.5)
- Top Plate Height: 4.0mm
