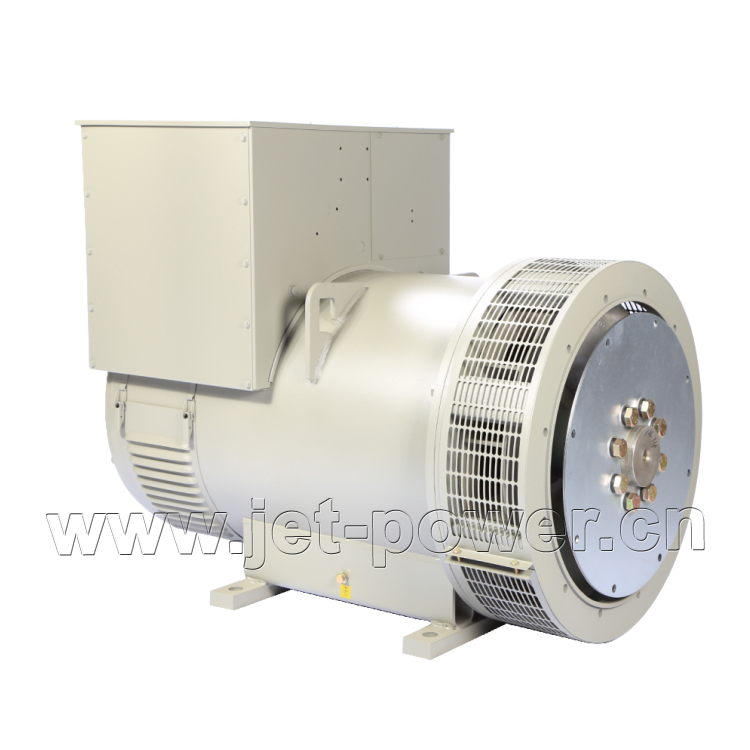

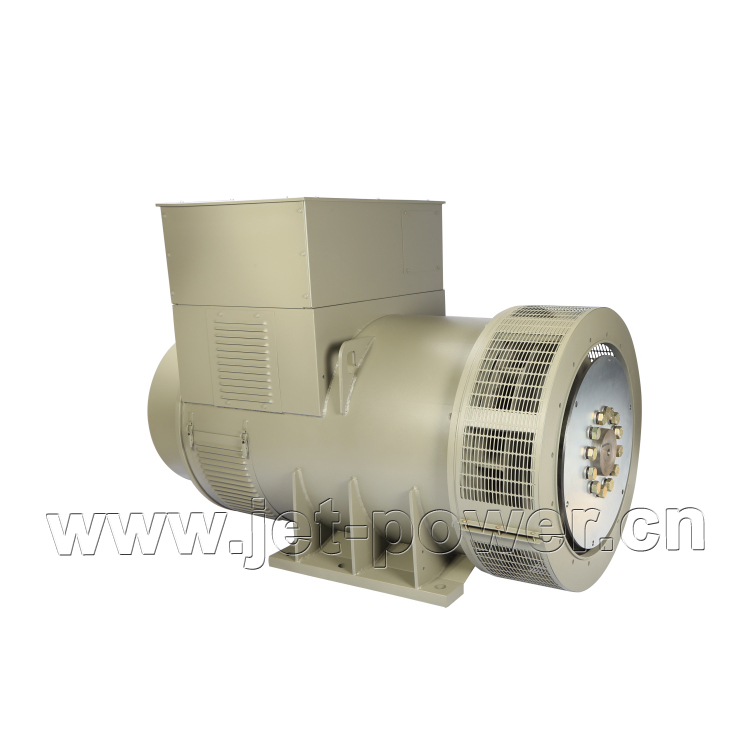

Brushless AC Alternator
This brushless alternator is designed for power generation. Its robust construction includes a protective enclosure and integrated cooling fan, making it suitable for standby generators, prime power units, and distributed generation systems.
Technical Specifications
Overview
High-Performance Brushless Synchronous Alternator
This brushless synchronous alternator is engineered for reliable power generation, utilizing advanced technology to ensure stable voltage output and minimal waveform distortion. Designed for durability, it features an 'H' class insulation system and robust construction to withstand demanding environments. With its 2/3 pitch winding design, it effectively eliminates third harmonic waves, making it an ideal choice for nonlinear loads and UPS applications.
Electrical Features
Insulation Class
Class H
Interference Metrics
2 %
THF
50
TIF
- Winding Design
- 2/3 pitch
Compliance & Standards
- Manufacturing Standards
- GB755BS 5000VDE 0530NEMA MG1-22IEC34
Warranty & Support
Warranty Policy
- 1 year or 1000 hours (whichever comes first)
- Free easy-damageable spare parts during warranty
- Cost-based maintenance after expiration
Technical Capabilities
Integrated Control Features
- Voltage adjustment
- Stability adjustment
- Under frequency roll-off
- Over exciting protection
- Low radio interference
