Broadcast Spraying Agricultural Robot
The Broadcast Spraying Agricultural Robot is a new type of agricultural spraying robot that can work unmanned day and night with centimeter-level precision. It features an intelligent spraying system that can accurately control spraying volume.

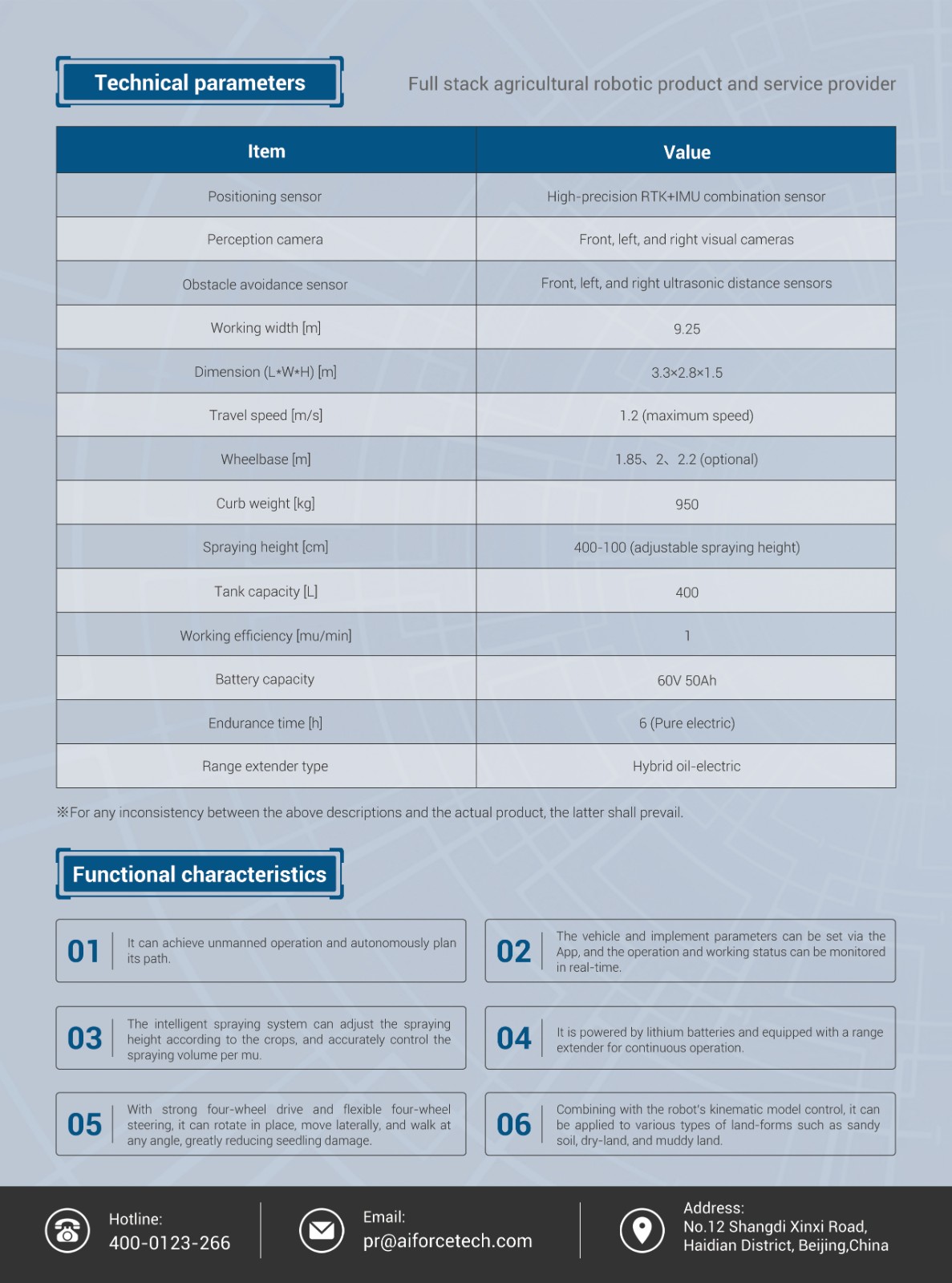

Technical Specifications
Overview
Autonomous Agricultural Precision
This advanced broadcast spraying robot delivers centimeter-level positioning precision for autonomous agricultural operations. Designed for high efficiency, it handles diverse field shapes using multiple steering modes including looping and fish-tailing. The system integrates intelligent spraying with real-time app monitoring to ensure optimal crop coverage for vegetables, herbs, and field crops.
Technical Specifications
Key Performance Metrics
9.25 m
Working Width
400 L
Tank Capacity
1 mu/min
Working Efficiency
6 h
Endurance Time
Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L*W*H) | 3.3 x 2.8 x 1.5 m |
| Curb Weight | 950 kg |
| Wheelbase Options | 1.85m, 2m, 2.2m |
- Navigation & Sensors
- RTK+IMU PositioningFront/Left/Right CamerasUltrasonic Obstacle Avoidance
Operational Features
Power & Propulsion
- 60V 50Ah Lithium Battery
- Hybrid Oil-Electric Range Extender
- Four-Wheel Drive
- Four-Wheel Steering
- Suitable Applications
- Open-air VegetablesMedicinal HerbsTobaccoLawnsFacility AgricultureField Crops
