Technical Specifications
Overview
Precision Automated Dispensing System
This benchtop dispensing robot is engineered for high-precision application of adhesives, sealants, and various industrial fluids. Featuring a versatile syringe-based micro-dispensing system, it ensures consistent material flow and eliminates dripping through an integrated suck-back control. Its robust design, utilizing high-grade aluminum and precision linear guides, makes it an ideal solution for electronics assembly, medical device manufacturing, and other intricate industrial processes.
Performance Metrics
Key Performance Metrics
10 kg
Max Load (XY)
800 mm/s
Max Speed (XY)
9,999 programs
Memory Capacity
Technical Specifications
Model Specifications
| Model | Working Range (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TH-2004D-300 | 300 x 300 x 100 | 500 x 580 x 610 | 34 |
| TH-2004D-400 | 400 x 400 x 100 | 600 x 680 x 610 | 39 |
| TH-2004D-500 | 500 x 500 x 100 | 700 x 780 x 610 | 46 |
Supported Syringe Sizes
- 3cc
- 5cc
- 10cc
- 30cc
- 55cc
- 300cc
- Compatible Materials
- GlueSiliconeRTVCyanoacrylateGreaseAnaerobicUV Cure Resins
Construction & Control

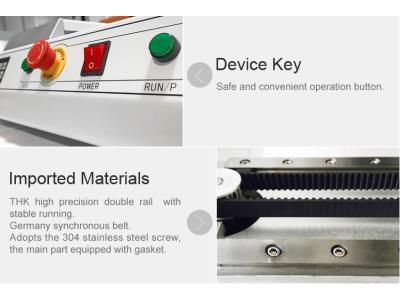

Construction Materials
- 6063 Aluminum Frame
- 304 Stainless Steel Screws
- Precision Linear Guides
- Germany Synchronous Belt
Control System Features
- Offline LCD Operation Panel
- Precision micro-stepper motor
- 4 Inputs / 4 Outputs
- Handheld Programmer
Operating Environment
Operating Environment
- Working Temperature: 0 - 40°C
- Relative Humidity: 20 - 90% (No condensation)
Certifications
Certifications
CE Approved
