Technical Specifications
Product Overview

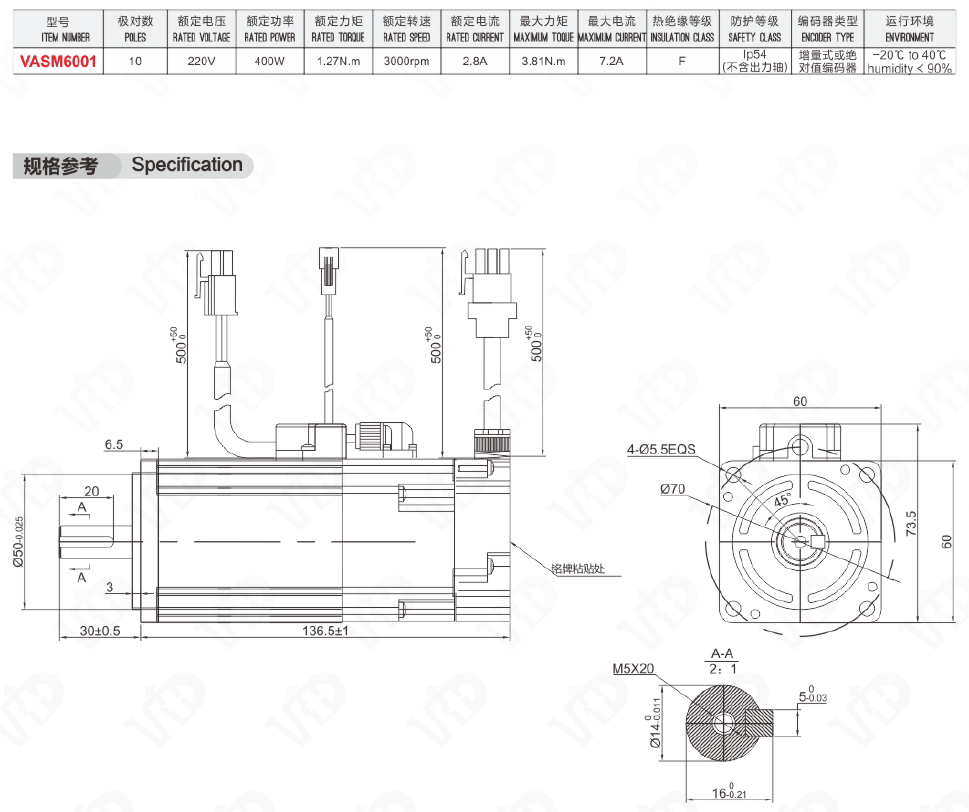

High-Performance Servo Motor VASM60
The VASM60 is a high-performance servo motor engineered for precise industrial automation, robotics, and CNC machine applications. Featuring robust construction and reliable operation, it ensures consistent motion control under demanding conditions. The unit is designed for seamless integration into existing industrial systems through standard connectors and flexible encoder support.
Performance Specifications
Core Metrics
400 W
Rated Power
3,000 rpm
Rated Speed
1.27 N.m
Rated Torque
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 220V |
| Rated Current | 2.8A |
| Maximum Torque | 3.81N.m |
| Maximum Current | 7.2A |
| Pole Count | 10 |
Technical Standards
Operating Conditions
- Operating Temperature: -20°C to 40°C
- Humidity: < 90%
- Safety and Environment
- IP54 (Excluding shaft)Insulation Class F
- Encoder Compatibility
- Supports incremental or absolute encoder types
