Belt Conveyor System
This belt conveyor system is composed of a rack, conveyor belt, belt roll, and gearing. It facilitates material delivery between feeding and discharge points, suitable for granular materials or rhythmic flow in industrial production.
Technical Specifications
Product Overview
High-Efficiency Belt Conveyor System

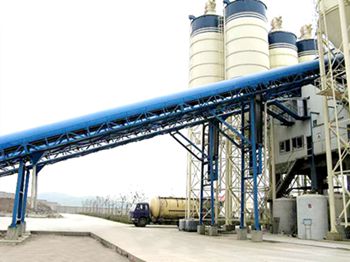

This belt conveyor system is a versatile material handling solution designed for continuous, rhythmic flow transportation. It is composed of a robust rack, conveyor belt, belt rollers, and a reliable gearing system, making it suitable for both horizontal and inclined transport. Ideally suited for mining, construction, and industrial processing, it offers a durable and efficient way to move bulk materials from feeding points to discharge locations.
Technical Specifications
Core Components
- Rack/Frame
- Conveyor Belt
- Belt Rollers
- Gearing/Drive System
- Driving Pulley
- Bend Pulley
- Operational Capabilities
- Horizontal TransportationInclined TransportationContinuous OperationRhythmic Flow
Key Features
Design Advantages
- Compact structure
- Light and handy rack design
- Easy disassembly and assembly
- Can be laid directly on roadway floors
- Tail section length is adjustable
- Supports intermediate drives for long-distance transport
Typical Applications
Mine TunnelsSurface MiningOpen-pit MiningConcentrator PlantsCoal Mining
