Bearing Adapter Sleeve
Adapter sleeves secure bearings with tapered bores onto cylindrical or stepped shafts. They simplify bearing installation and removal, often including a lock nut and locking washer.
Technical Specifications
Overview
High-Precision Bearing Adapter Sleeves
These adapter sleeves are engineered to securely mount bearings with tapered bores onto cylindrical or stepped shafts, simplifying both installation and removal processes. Constructed from high-quality steel, they provide a reliable mounting solution that accommodates shaft size variations while minimizing vibration. This versatile component is ideal for industrial applications with moderate speeds and loads, ensuring optimal machinery efficiency and extended bearing life.
Technical Capabilities
Annual Production Capacity
1,000,000 pcs
Units per Year
- Compatible Models
- H200H300H2300H3100H3000H3200OH3200AH200AH300AH2300AH3100AH3000AH3200AOH3200
Material & Standards
Available Materials
- Q235 Common Carbon Structural Steel
- 20# High-Quality Carbon Structural Steel
Manufacturing Standard
Chinese Steel Standard
Installation & Design

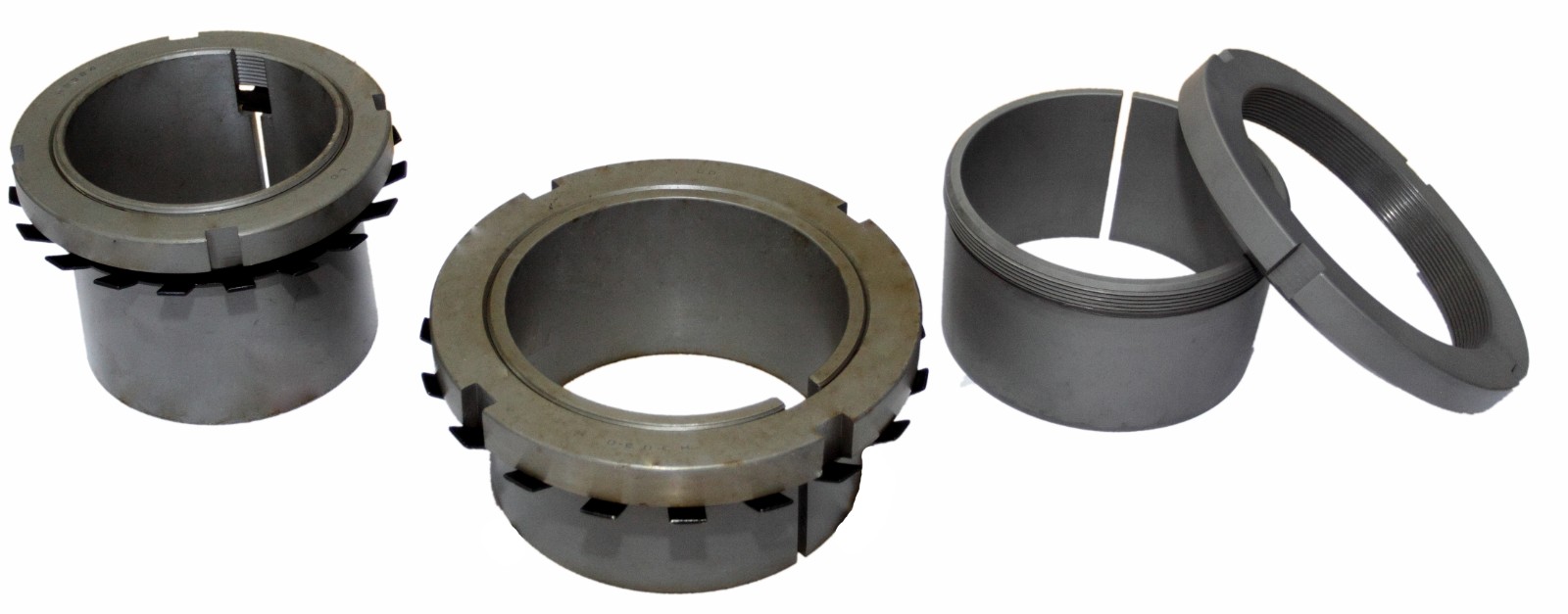

Assembly Components
- Adapter Sleeve
- Lock Nut
- Locking Washer / Tab Washer
Key Design Features
- Split sleeve design for easy mounting

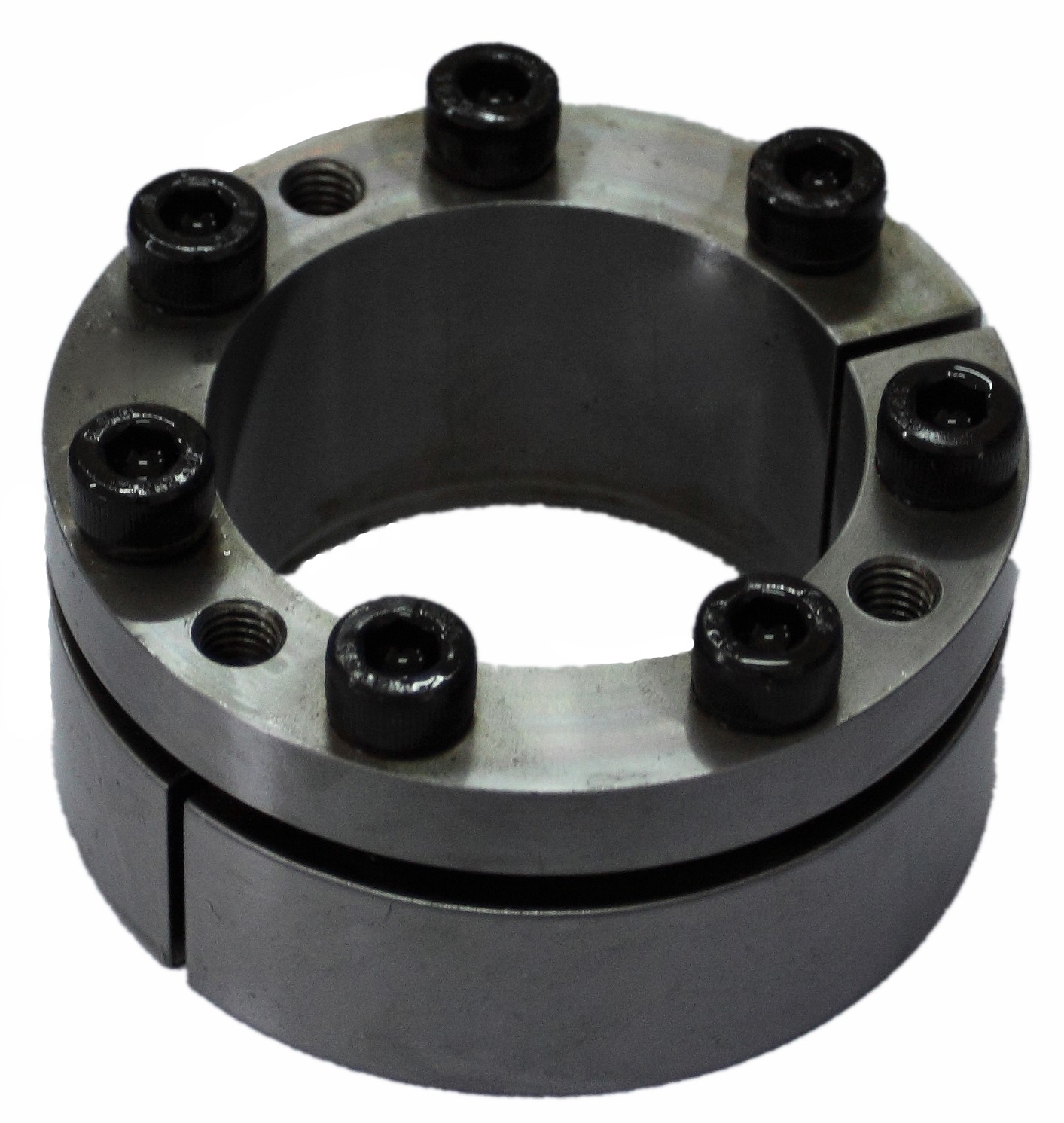

- Multiple set screws for enhanced clamping force
- Precision-engineered for vibration reduction
- Suitable for cylindrical and stepped shafts
- Application Suitability
- Moderate speeds and loads in diverse industrial environments
