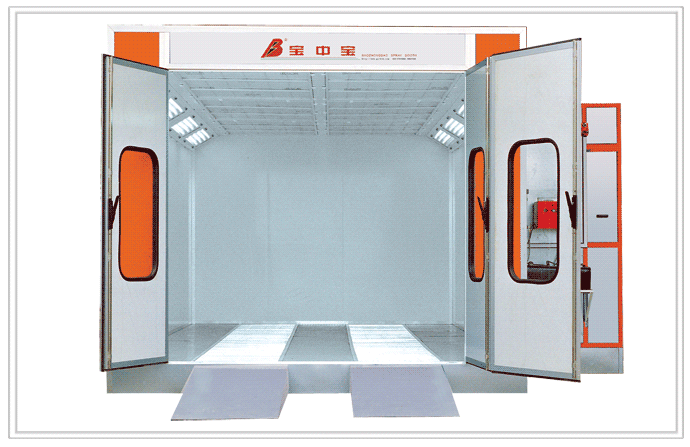

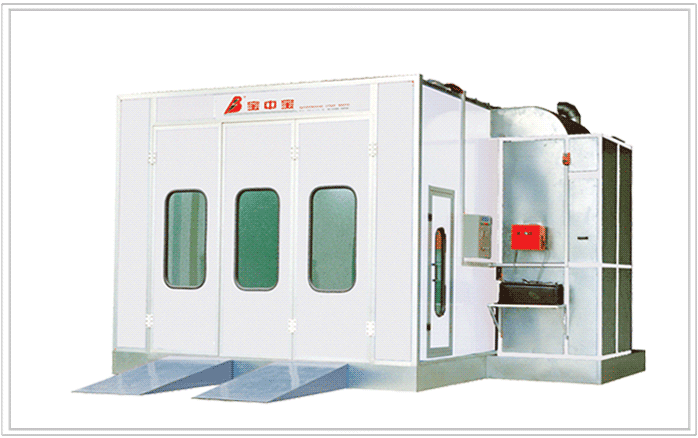

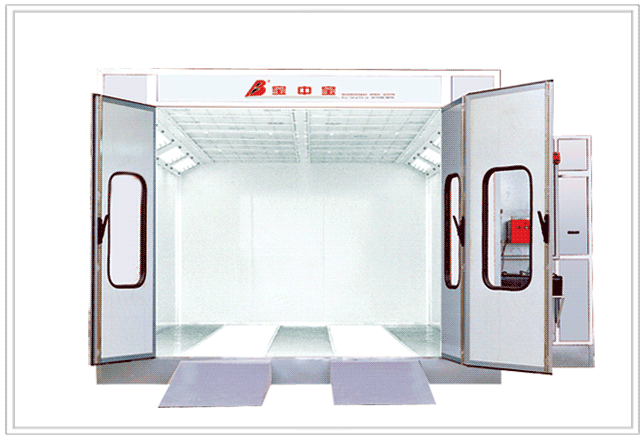

Automotive Spray Booth
This automotive spray booth provides a controlled environment for painting and coating applications. Its fully enclosed structure includes integrated lighting, ventilation, and filtration systems for optimal air quality and visibility.
Technical Specifications
Overview
Professional Automotive Spray Booth
This professional-grade automotive refinishing enclosure provides a clean, controlled environment for high-quality painting and coating applications. Engineered with robust insulated wallboards and an advanced filtration system, it ensures optimal temperature stability and dust control for a pristine finish. The booth features a powerful air circulation system and integrated lighting, making it an efficient solution for auto body shops and industrial finishing operations.
Dimensions
- External Size
- 7000 × 5560 × 3430 mm
- Internal Size
- 6900 × 4000 × 2800 mm
- Front Door Size
- 3000 × 2700 mm
Performance Metrics
Total Power
10 kw
Total Power
Air Circulation Capacity
24,000 m3/h
Air Volume
Air Circulation System
Inlet Fan Specifications
| Metric | Value |
|---|---|
| Capacity per set | 12000 m3/h |
| Power per set | 4 kw |
| Quantity | 2 sets |
| Air Speed | 0.35 m/h |
Air Purification System
Filter Capabilities
- Primary filter: >10 μm particles
- Ceiling filter: >5 μm particles
- Floor filter: Fiberglass
- Filtration Efficiency
- 98 %
Heating System
Heating Performance
- Heat Energy: 180,000 Kcal/h
- Heating Time (20-60°C): 4-6 min
- Max Temperature: 80°C
- Fuel Consumption: 4-6 kg/vehicle
Construction
- Wallboard Material
- EPSColorful Steel Skin50mm ThickAnti-flameHeat-Insulation
Lighting System
- Ceiling Lighting
- 24 PCS 36W Philips Lamp (800Lux)
