Automotive Parking Assist Sensor for AUDI
This parking assist sensor is designed for AUDI vehicles, providing reliable obstacle detection during parking. It uses ultrasonic technology to ensure optimal performance and driver safety.
Technical Specifications
Product Overview
High-Performance Parking Assist Sensor
This automotive parking assist sensor is engineered for precise obstacle detection, ensuring safety and accuracy during parking maneuvers. Designed with robust construction and advanced ultrasonic technology, it integrates seamlessly with existing vehicle systems. Each unit undergoes rigorous environmental testing, including salt fog, vibration, and dust resistance, to guarantee long-term reliability and performance in demanding automotive conditions.
Compatibility & Identification
Compatible Part Numbers
- 1S0919275
- 1S0919275C
- 4H0919275
- 5KD919275B
- 5KD919275
- 3C0919275S
- 5C6919275A
- 3C0919

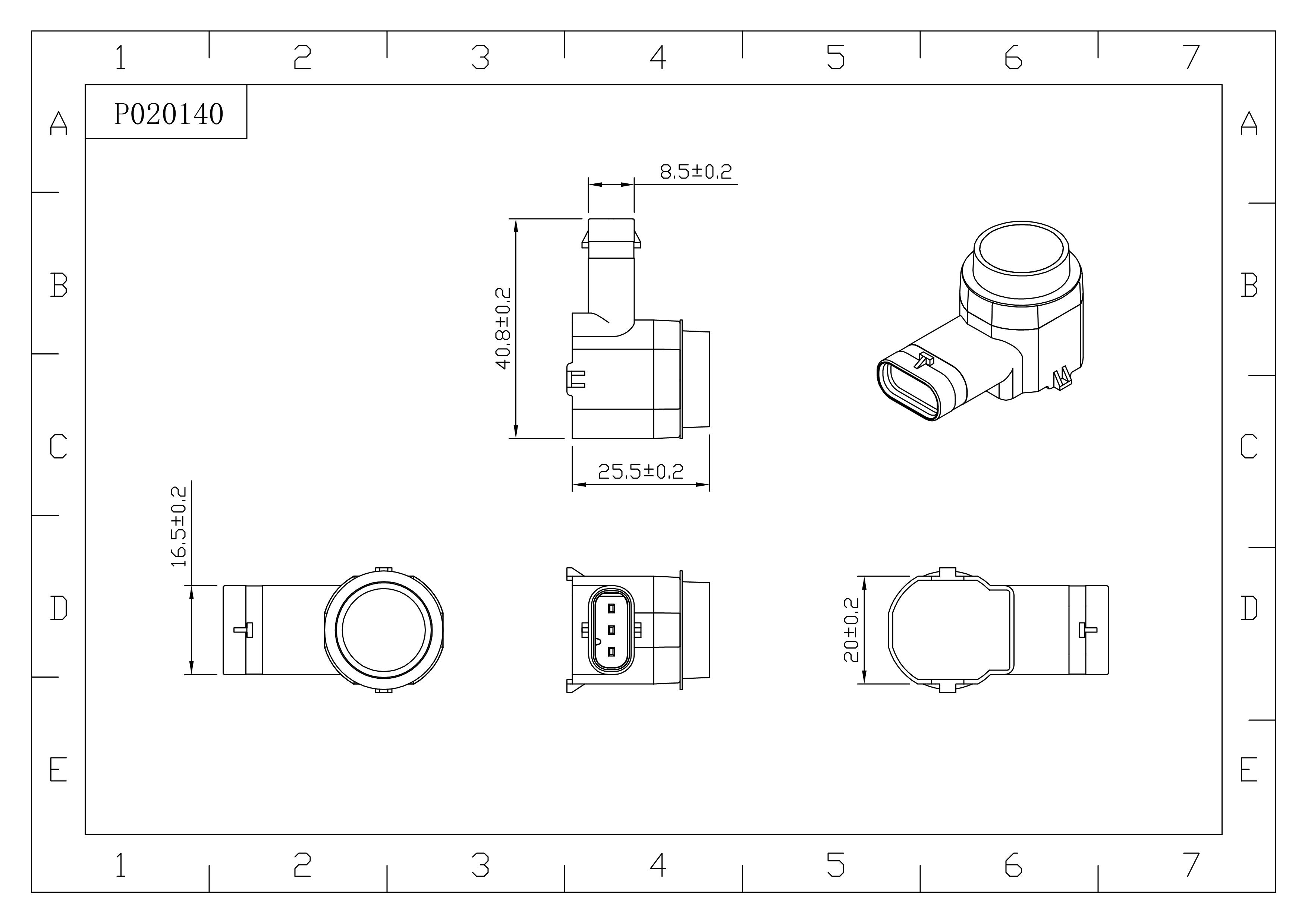

Technical Dimensions
Dimensional Specifications
| Feature | Measurement |
|---|---|
| Height | 40.8 ± 0.2 mm |
| Width | 25.5 ± 0.2 mm |
| Connector Diameter | 8.5 ± 0.2 mm |
| Face Diameter | 16.5 ± 0.2 mm |
| Depth | 20.0 ± 0.2 mm |
Quality & Compliance
Environmental Testing
- Sand and dust resistance
- Rain resistance
- Constant humidity and heat endurance
- Impact resistance
- Vibration durability
- Salt fog corrosion resistance
- Standards & Certifications
- IATF 16949:2016CEIP67
