Automotive Engine Starter

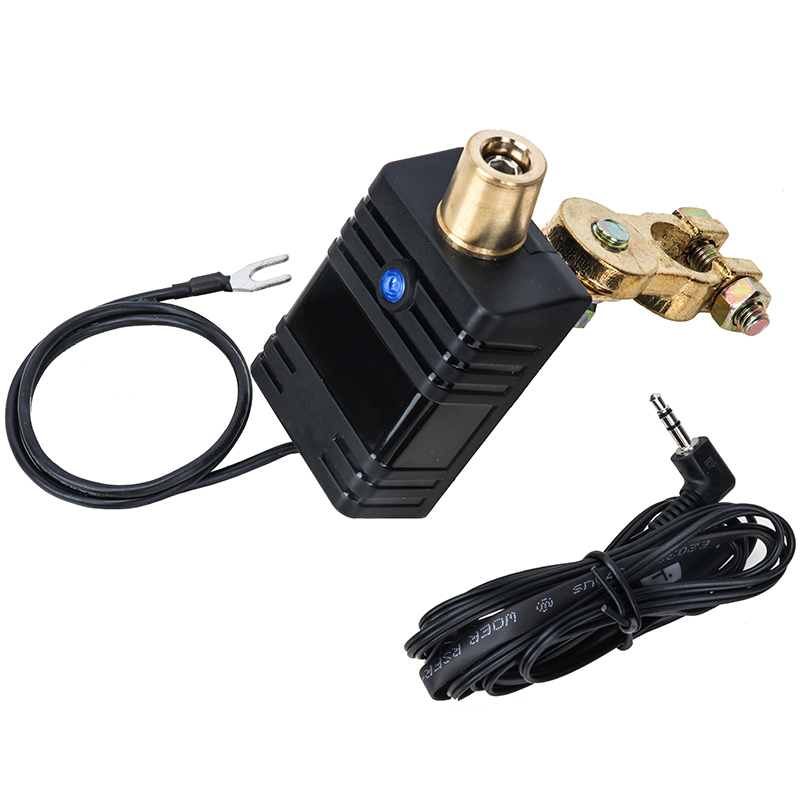

This electronic automatic starter includes a battery terminal connector, ground wire, and auxiliary input cable. The unit features a compact black housing with a blue indicator LED and a brass top connector.
Technical Specifications
Product Overview
Reliable Automotive Engine Starter
This high-performance automotive engine starter is designed to provide consistent and reliable power for 12V vehicle systems. Built with a compact, durable housing and robust brass terminals, it ensures efficient electrical conductivity and secure mounting. The unit features advanced safety mechanisms, including automatic current output regulation to maintain optimal voltage levels during operation.
Electrical Specifications
Peak Current (10ms)
2,400 A
Peak Current
- Rated Voltage
- 12 V
- Maximum Voltage
- 18 V
- Continuous Current
- 100 A
- Max Switch Current
- 60 A
- Internal Resistance
- 1 mΩ
Physical Dimensions
- Weight
- 405 g
- Dimensions
- 50 x 26 x 70 mm
Operating Features
Safety & Protection Logic
- Automatic voltage monitoring
- Cut-off below 11.8V
- Automatic recovery within one minute
