Automotive Diagnostic Communication Module

This automotive diagnostic communication module is a high-performance interface for vehicle ECUs. It supports various communication protocols, enabling comprehensive diagnostics and software updates.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

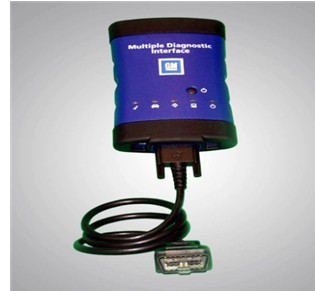

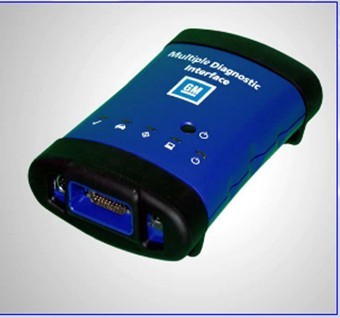

Professional Diagnostic Communication Module

This high-performance communication module serves as the essential link between a vehicle’s onboard electronic control unit (ECU) network and a PC. Designed for professional automotive diagnostics, it enables comprehensive Pass-Thru programming compliant with SAE J2534 standards for vehicles dating back to 1993. The unit supports advanced connectivity options including USB, Ethernet, and wireless communication for maximum shop flexibility.

Technical Specifications

PC Connection Methods

Mini USB port
CAT5 Ethernet
WLAN Wireless Interface

Communication Protocols: UARTClass 2KWP2000GMLAN (CAN)
Compliance: SAE J2534

Included Hardware

Kit Components

Communication Module
J1962 Diagnostic Connector
USB cable
Ethernet cable
AC adapter/power supply
Trigger switch connector
