Automotive DC Motor for Seating
This DC motor is designed for automotive seating applications, providing efficient power for adjusting seat positions. It features durable construction for reliable performance in demanding automotive environments.
Technical Specifications
Product Overview
VDR3803 Automotive Seating Motor
The VDR3803 is a specialized vehicle-based DC motor engineered for high-performance automotive seating adjustment systems. It is constructed with durable materials to ensure long-lasting reliability and smooth operation in demanding environments. Designed for seamless integration, this motor allows for precise positioning control, significantly enhancing user comfort and convenience within modern vehicle interiors.
Technical Performance
Performance Metrics
60 KG
Thrust
700 N
Stalling Torque
7 A
Stalling Current
- Rated Voltage
- 24 V
Operational Specifications
Load and No-Load Specs
| Metric | Speed (mm/s) | Current (Max) |
|---|---|---|
| No-Load | 23+12% | 1A |
| Load | 13.6+10% | 3A |

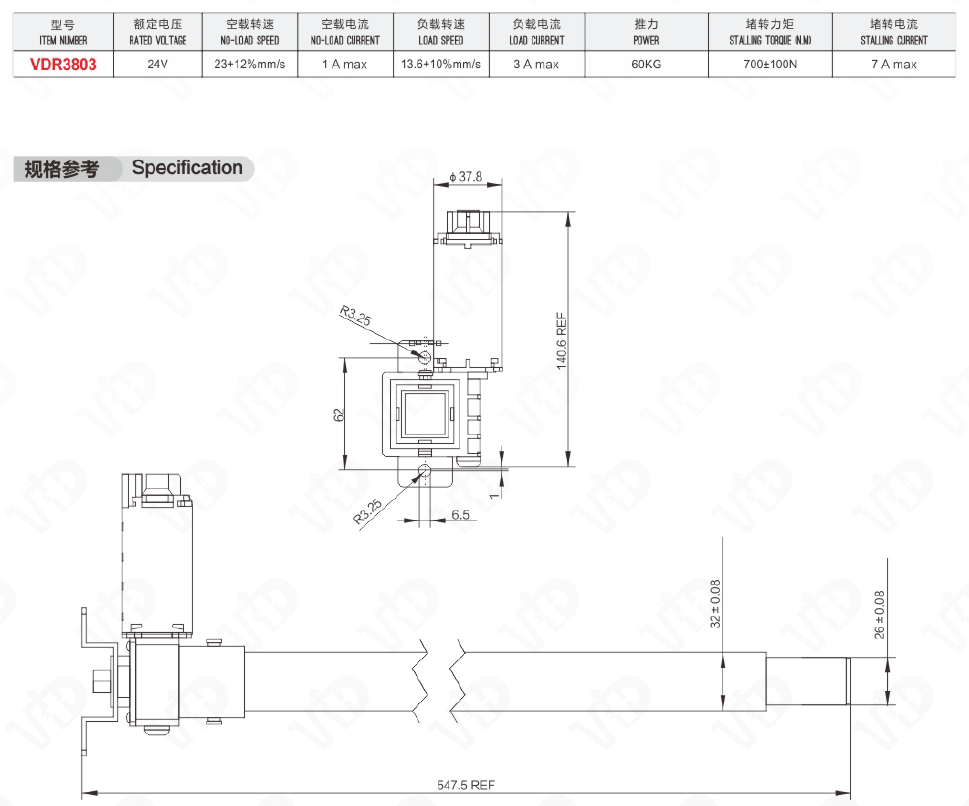

Physical Dimensions
Key Dimensions
- Diameter: Φ37.8mm
- Height: 140.6mm (REF)
- Overall Length: 547.5mm (REF)
- Shaft Diameter 1: 32±0.08mm
- Shaft Diameter 2: 26±0.08mm
- Radius: R3.25
